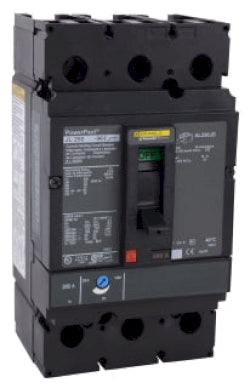

JLL26175 - Square D 175 Amp 600 Volt 2 Pole J Frame Molded Case Circuit Breaker

JLL26175

JLL26175 is a Square D 175 Amp, 2 Pole molded case circuit breaker designed for reliable overload and short circuit protection in electrical systems.This circuit breaker features a J Frame design, supports up to 600 VAC and 250 VDC, and includes a thermal magnetic trip unit. It is unit mountable and UL 489 listed, with interrupt ratings of 100 kA at 240 VAC, 65 kA at 480 VAC, and 25 kA at 600 VAC, ensuring high fault current interruption capability.

• Amperage: 175 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 2
• Frame Type: J Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 100 kA @ 240 VAC, 65 kA @ 480 VAC, 25 kA @ 600 VAC
• Trip Unit: Thermal Magnetic
• UL Listed: UL 489
• Frequency: 50/60 Hz
• Connection Type: Line/Load Lug
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JLL26175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JLL
• Voltage : 600
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 078590168314
• GTIN : 00785901683148
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.699
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
