Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

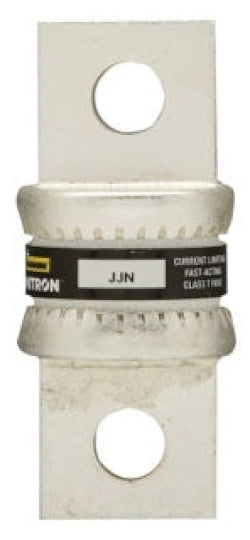

JJN-125
JJN-125 is a 125 amp, 300 volt AC Class T fast-acting current-limiting fuse from Eaton Bussmann series designed for advanced circuit protection.
This fuse features a bolted blade end connection, non-indicating design, and is rated for 20 kA interrupting capacity at 160 VDC and 200 kA at 300 VAC. It is suitable for VFD line protection and control or solenoid circuit applications. The fuse complies with UL 248-15, CSA C22.2, and CE standards, ensuring reliable and safe operation in industrial and electrical environments.
- Key Specifications
- Amperage Rating: 125 A
- Voltage Rating: 300 VAC, 160 VDC
- Interrupt Rating: 200 kA at 300 VAC, 20 kA at 160 VDC
- Fuse Class: Class T
- Type: Fast-Acting, Current-Limiting
- Connection: Bolted blade end x bolted blade end
- Dimensions: 2.44 in length x 0.88 in diameter
- Non-indicating fuse
- Certifications: UL Listed, CSA Certified, CE Marked
- Series: Bussmann JJN
- Part Number: JJN-125
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 125
- AIC rating : 200kA@300V
- Diameter : 0.88
- Class Rating : T
- Barrels : 1
- UPC : 051712627122
- GTIN : 00051712627122
- Country of Origin : Mexico
- Dimensions : 2.44 in x 0.88 in x 0.88 in (Length/Depth x Height x Width)
- Weight : 0.0088
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
