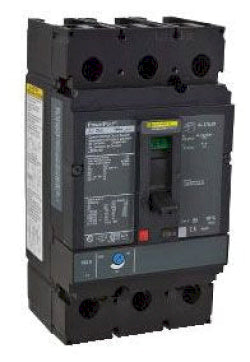

JJM36225 - Square D PowerPact J 225A 3-Pole 600VAC Molded Case Circuit Breaker

JJM36225

JJM36225 is a Square D PowerPact J series molded case circuit breaker designed for industrial and commercial power distribution applications. This 3-pole unit provides reliable thermal-magnetic protection with a 225-amp continuous current rating at 600VAC or 250VDC, featuring a 25kA interrupt rating and unit mount configuration with lugs for secure electrical connections. The breaker incorporates long-time and instantaneous trip functions for comprehensive overload and short-circuit protection, with an 80% continuous current rating suitable for standard installation practices.

• Part Number: JJM36225
• Manufacturer: Square D (Schneider Electric)
• Series: PowerPact J
• Poles: 3
• Amperage: 225A
• Voltage: 600VAC / 250VDC
• Interrupt Rating: 25kA
• Trip Type: Thermal-Magnetic
• Mounting: Unit Mount with Lugs
• Magnetic Hold Current: 1125A
• Certifications: UL 489, CCC, IEC, CSA, CE
• Weight: 5.00 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJM36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJM
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901953449
• GTIN : 00785901953449
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
