JJA36225SA - Square D PowerPact J-Frame Circuit Breaker 225A 3P 600V I-Line Thermal Magnetic 25kA

JJA36225SA

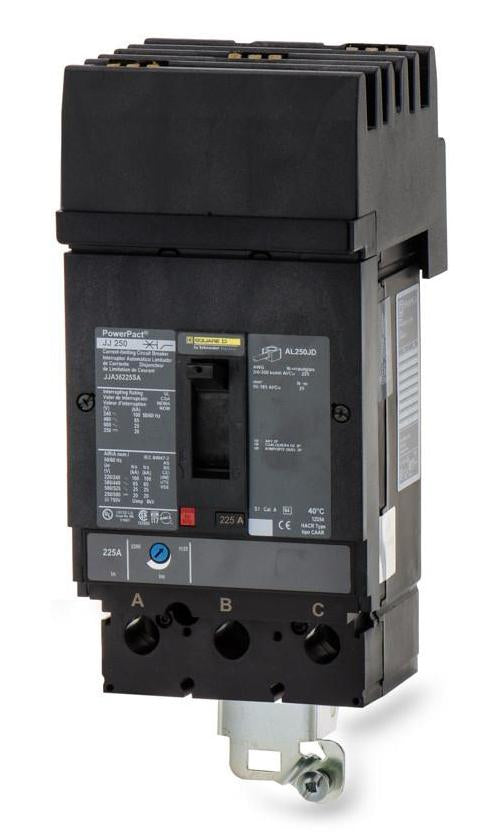

JJA36225SA is a Square D PowerPact J-Frame molded case circuit breaker designed for reliable overcurrent protection and switching in AC power distribution systems. This 3-pole breaker features a 225A rated current, 600V AC voltage rating, and is built for I-Line panelboard mounting. The breaker utilizes a thermal-magnetic trip unit for precise protection and is suitable for a wide range of commercial and industrial applications. Engineered for durability and safety, the JJA36225SA offers a 25kA interrupt rating at 600V AC, 65kA at 480V AC, and 100kA at 240V AC. It is UL 489 listed, CSA certified, and meets IEC, CCC, and CE standards. The breaker is designed for plug-in I-Line mounting and features a non-interchangeable trip unit for secure installation.

• Part Number: JJA36225SA
• Manufacturer: Square D
• Series/Frame: PowerPact J-Frame
• Amperage: 225A
• Number of Poles: 3
• Rated Voltage: 600V AC
• Interrupt Rating: 25kA @ 600V AC, 65kA @ 480V AC, 100kA @ 240V AC
• Mounting Type: I-Line Plug-In
• Tripping Mechanism: Thermal-Magnetic
• Certifications: UL 489, CSA, IEC, CCC, CE
• Application: Commercial and Industrial Power Distribution
• Features: Non-interchangeable trip unit, current limiting, suitable for reverse fed applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJA36225SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJA
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : J Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901583455
• GTIN : 00785901583455
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 7
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
