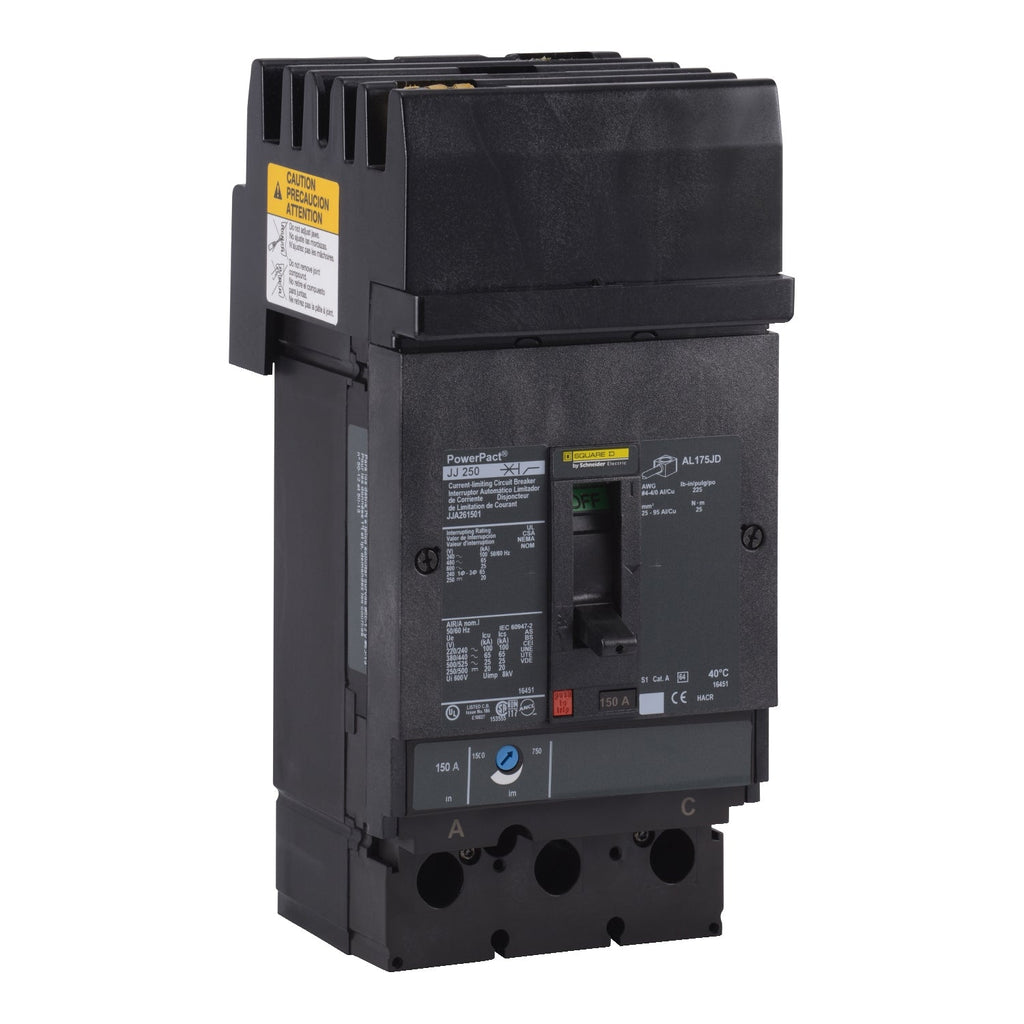

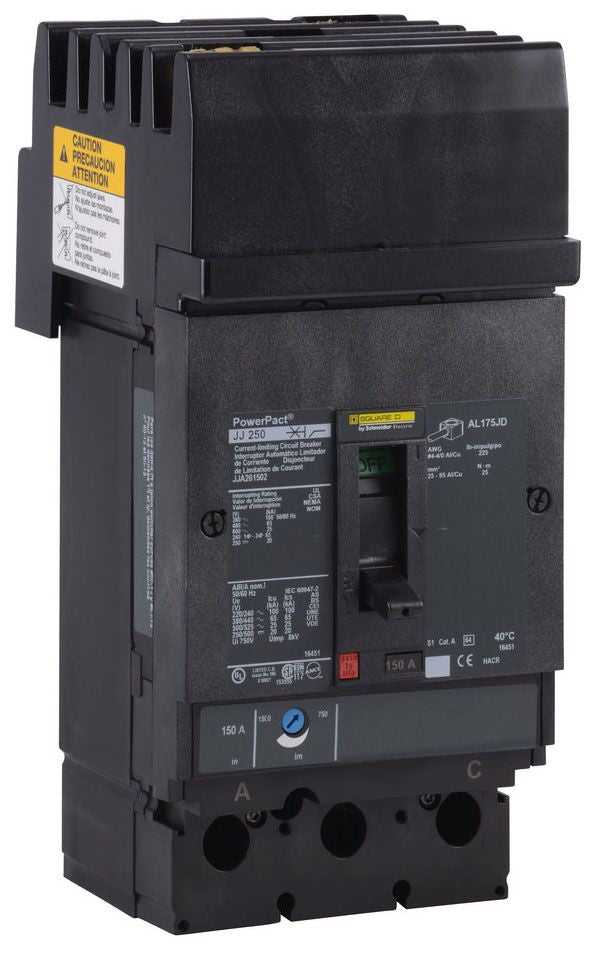

JJA262501 - Square D 250A 600V 2-Pole PowerPact J-Frame Molded Case Circuit Breaker Thermal Magnetic

JJA262501

JJA262501 is a Square D PowerPact J-Frame molded case circuit breaker designed for reliable thermal magnetic protection.This 2-pole circuit breaker features a 250 ampere rating and is rated for use up to 600 volts AC. It provides overload and short-circuit protection with a thermal magnetic trip unit. The breaker has a breaking capacity of 25kA at 600VAC and is designed for I-Line mounting with lug load connections. It is part of the J-Frame series and is suitable for panelboard and switchboard applications.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600V AC
• Poles: 2
• Frame Type: PowerPact J-Frame
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 25kA at 600VAC
• Mounting Type: I-Line
• Connection Type: Lug Load
• Breaking Capacity Code: J
• Approvals: UL, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JJA262501
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJA
• Voltage : 600
• Amperage : 250
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901546344
• GTIN : 00785901546344
• Country of Origin : United States

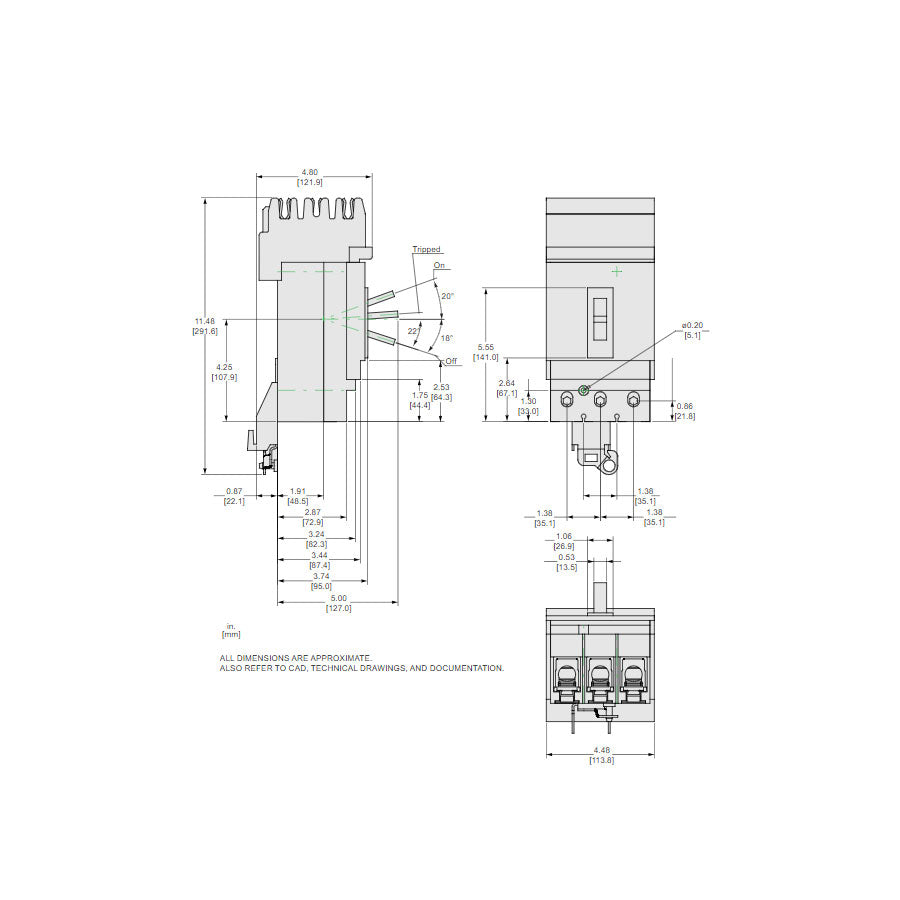

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
