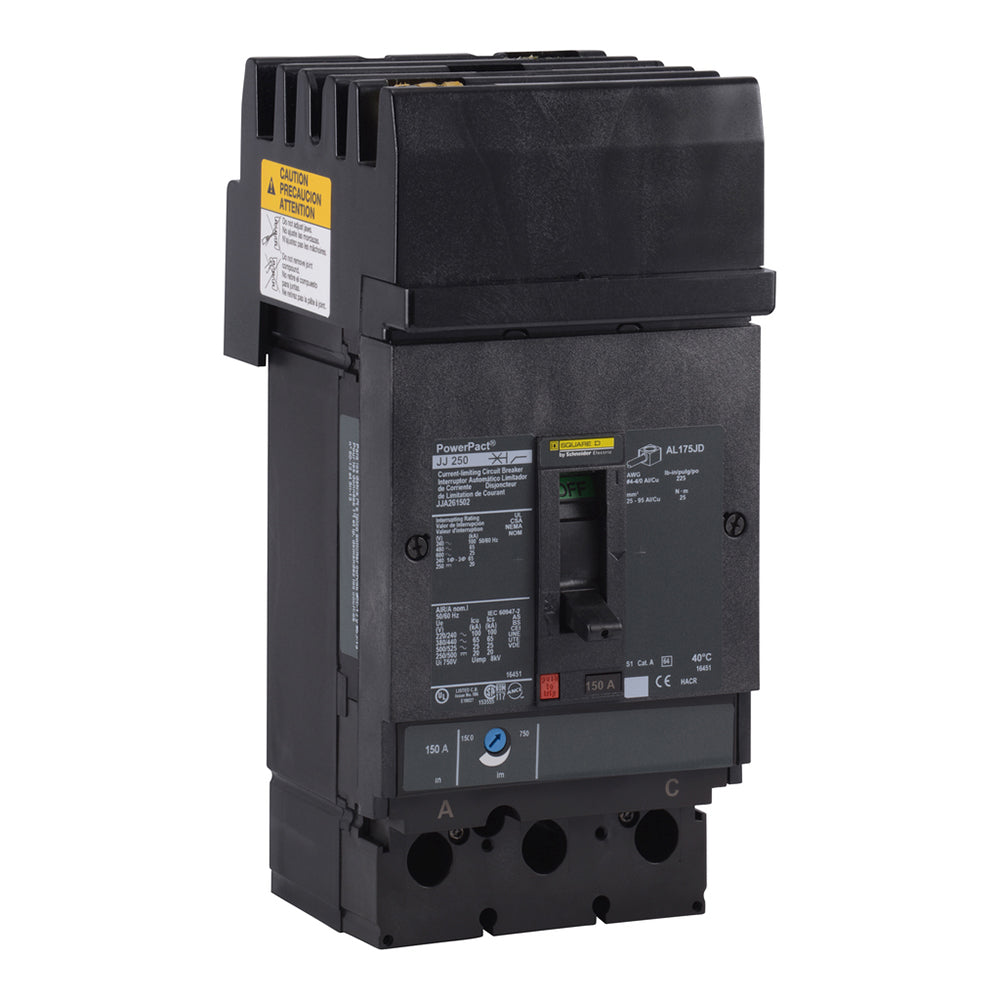

JJA262251 - Square D PowerPact J-Frame 225A 2P 600V I-Line Thermal Magnetic Circuit Breaker

JJA262251

JJA262251 is a Square D PowerPact J-Frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial power distribution systems. This 2-pole, 225 amp circuit breaker features a thermal-magnetic trip unit and is rated for 600 volts AC. It is specifically designed for I-Line panelboard and switchboard mounting, providing robust protection for demanding applications. The breaker is current limiting and offers high interrupt ratings for enhanced safety.

• Part Number: JJA262251
• Manufacturer: Square D
• Series/Frame: PowerPact J-Frame
• Amperage: 225A
• Voltage: 600V AC
• Poles: 2P
• Mounting Type: I-Line
• Interrupt Rating: 65kA @ 480V, 25kA @ 600V
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA, CE
• Application: Distribution, Panelboard, Switchboard
• Standards: Class 611/612

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJA262251
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901939214
• GTIN : 00785902000000
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
