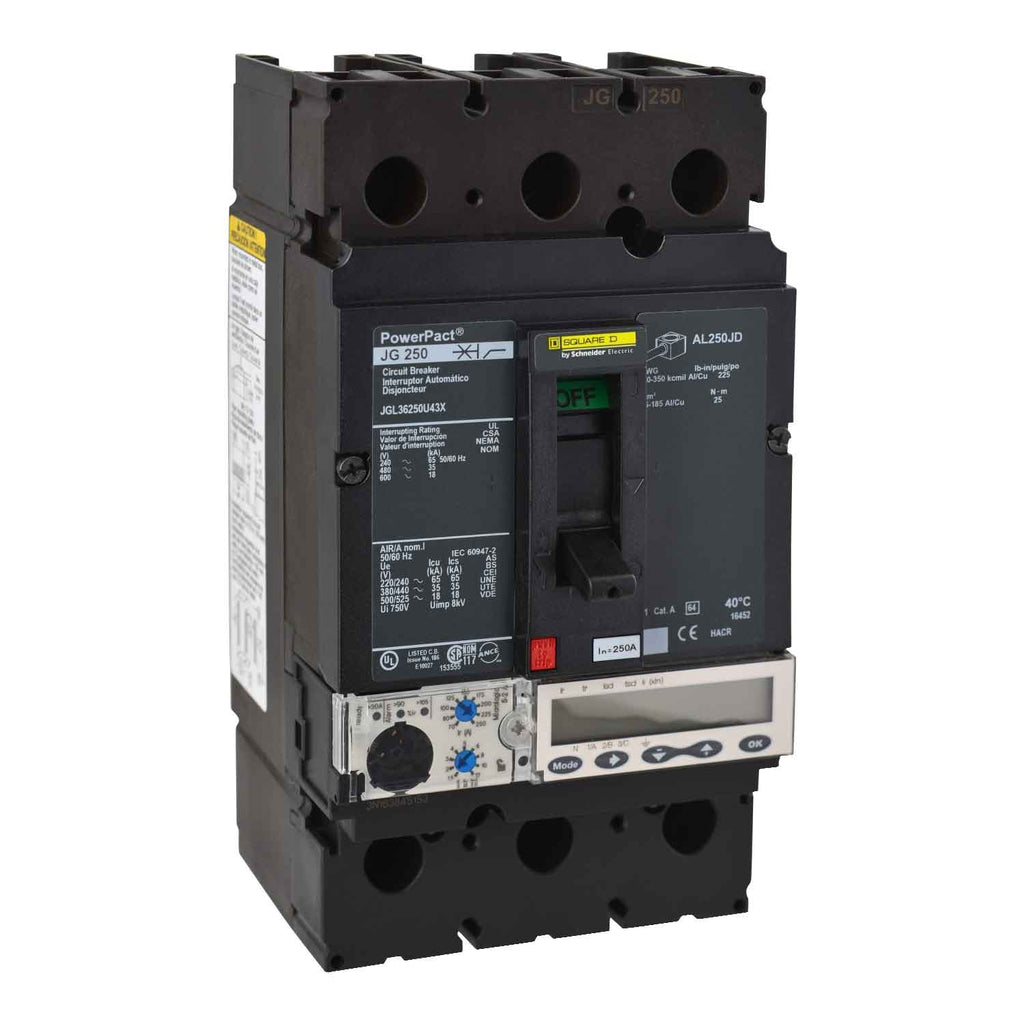

JGL36250U43X - Square D Powerpact JGL 600V 250A 3 Pole Molded Case Circuit Breaker Feed-Thru Mounting

JGL36250U43X

JGL36250U43X is a Square D Powerpact JGL molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3 pole, 600V, 250A circuit breaker features feed-through mounting and a high interrupting capacity of 35kA at 480V. It includes a Micrologic ammeter with LSI (Long-Time, Short-Time, Instantaneous) trip functions and solid-state technology for precise protection. The breaker is UL listed and suitable for reverse fed applications, with line and load side lug terminals for flexible installation. This circuit breaker is part of the Powerpact JGL series, known for durability and advanced electronic trip capabilities. It supports adjustable trip settings and current limiting for enhanced safety and performance in demanding environments.

• Part Number: JGL36250U43X
• Manufacturer: Square D
• Series: Powerpact JGL
• Amperage: 250A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Feed-Through
• Interrupt Rating: 35kA @ 480V
• Frame: J Frame
• Phase: 3 Phase
• Connection: Box Lug
• Terminal Type: Line & Load Side Lug
• Trip Unit: Micrologic Ammeter, LSI, Solid State
• Certifications: UL Listed
• Application: Suitable for reverse fed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36250U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901983903
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
