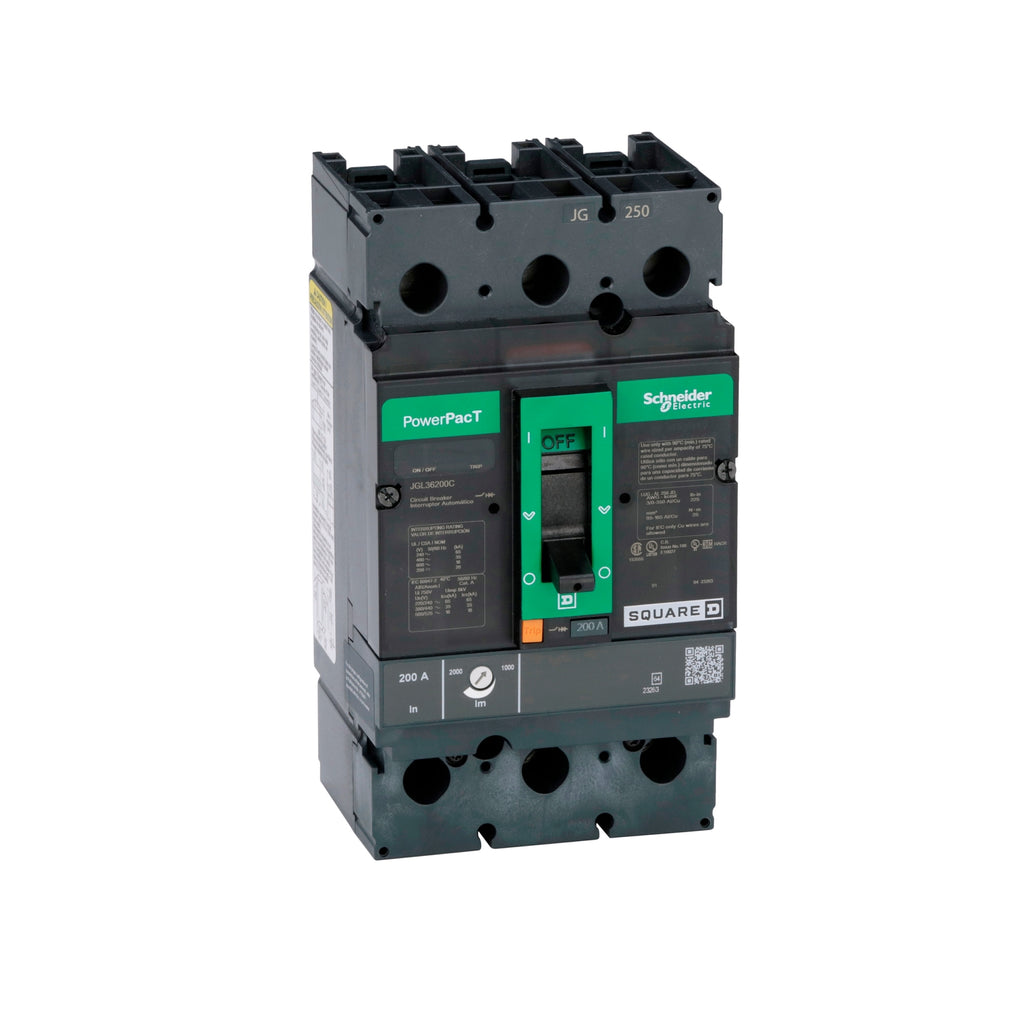

JGL36200C - Square D PowerPact J Frame 200 Amp 3 Pole Molded Case Circuit Breaker 600VAC/250VDC Unit Mount

JGL36200C

JGL36200C is a Square D PowerPact J Frame molded case circuit breaker designed for reliable protection in industrial and commercial applications. This unit mount breaker features a 200 amp rating, three poles, and supports up to 600VAC or 250VDC, making it suitable for a wide range of electrical systems. Engineered for durability and safety, the JGL36200C offers thermal magnetic trip technology and current limiting capabilities. It is UL 489 listed and provides high interrupt ratings for dependable circuit protection. The compact design allows for efficient panel installation and easy integration into existing setups.

• Part Number: JGL36200C
• Manufacturer: Square D
• Series/Frame: PowerPact J Frame
• Amperage: 200 Amp
• Voltage: 600VAC / 250VDC
• Poles: 3 Pole
• Mounting Type: Unit Mount
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC
• Trip Unit: Thermal Magnetic, Adjustable
• Certifications: UL 489 Listed
• Current Limiting: Yes
• Width: 4.09 in
• Depth: 3.39 in
• Height: 7.52 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36200C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901668503
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
