JGA36175 - Square D PowerPact J 175A 3P 600V 35kA@480V I-Line Plug-In Molded Case Circuit Breaker, Thermal Magnetic Trip, UL Listed

JGA36175

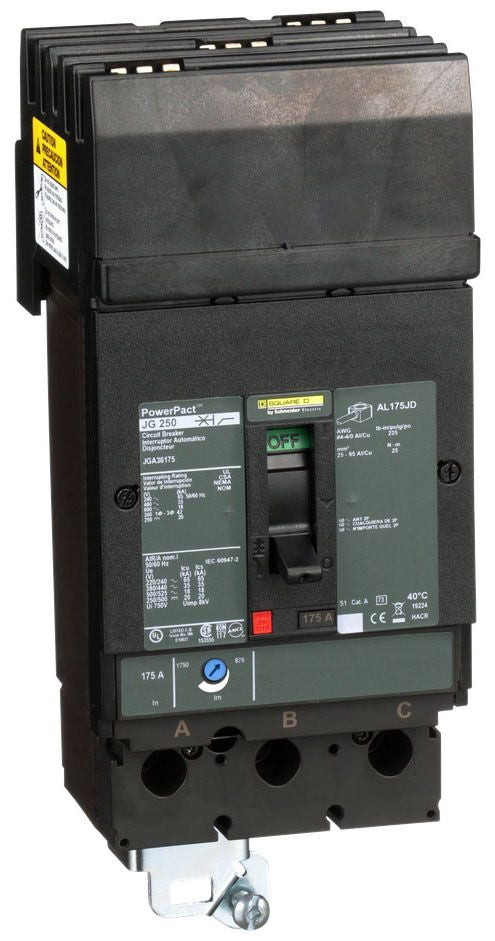

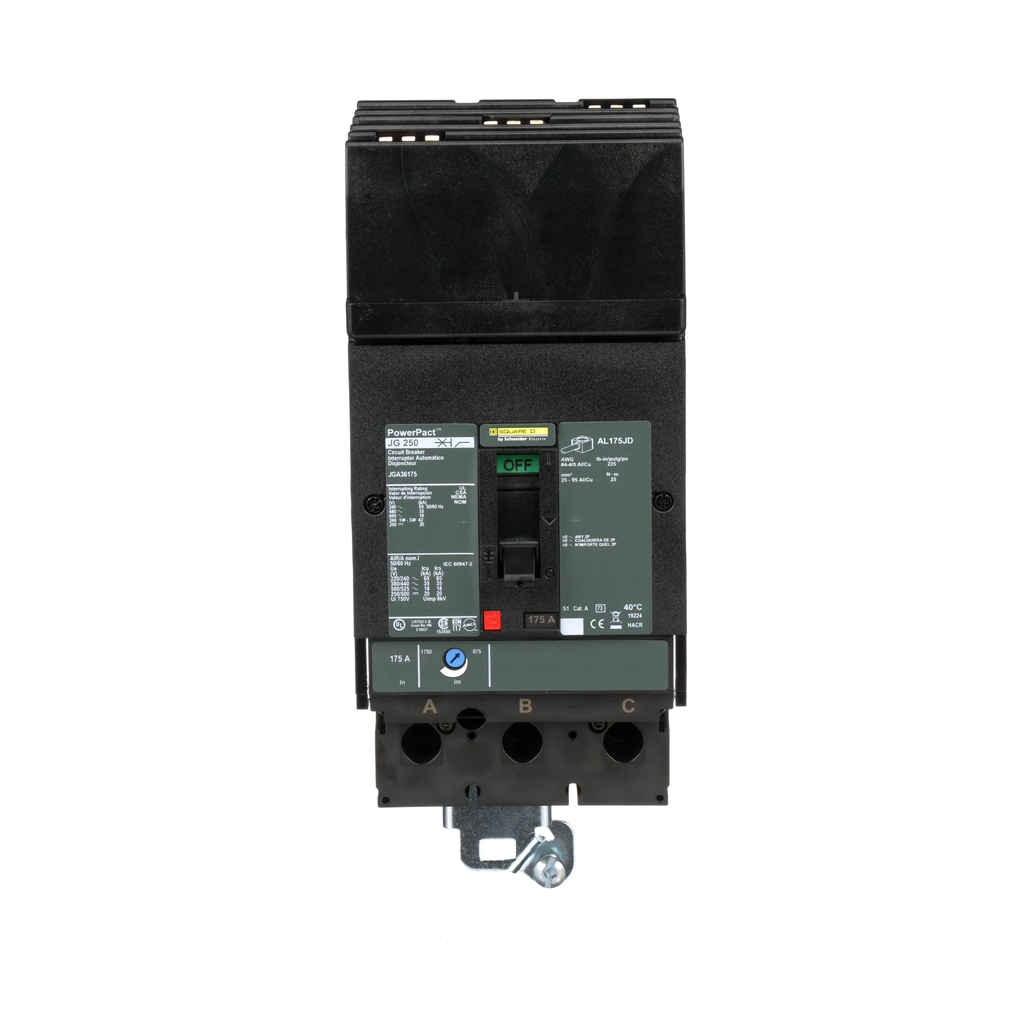

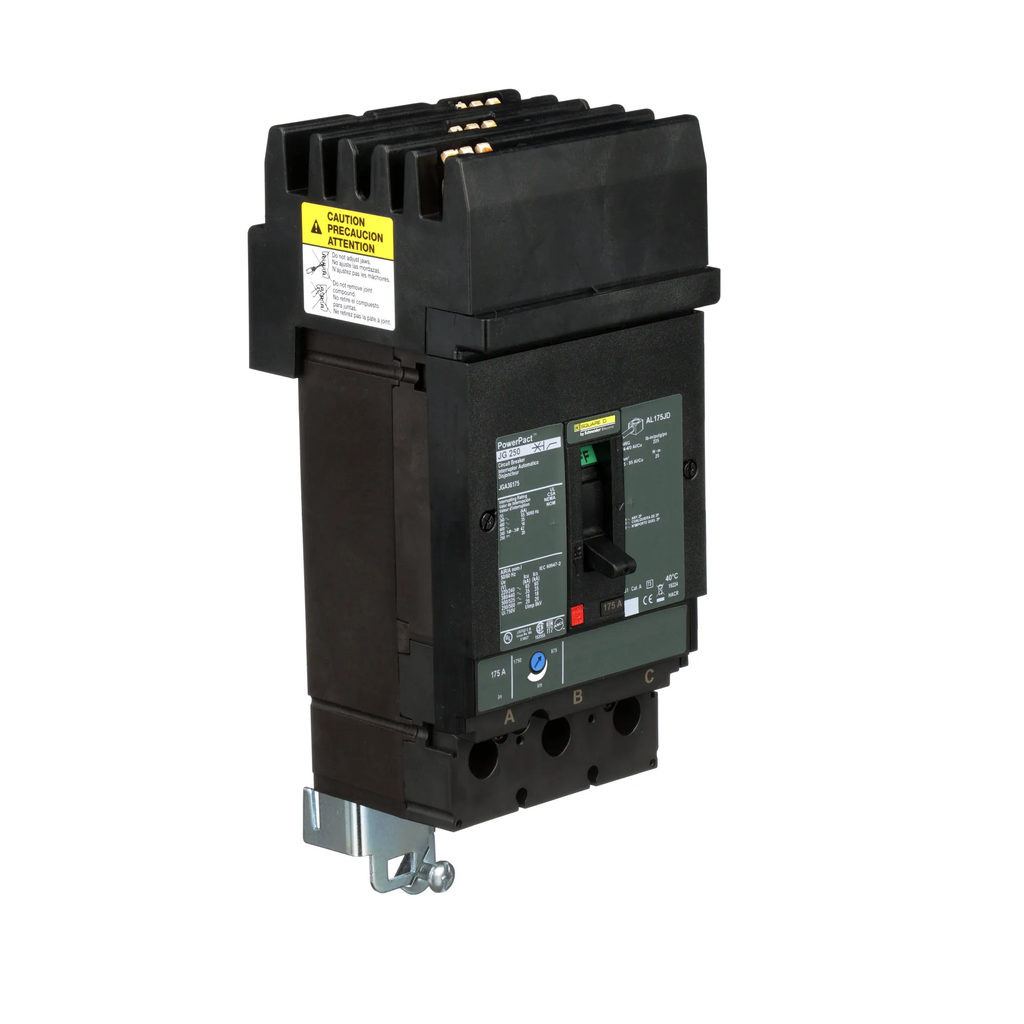

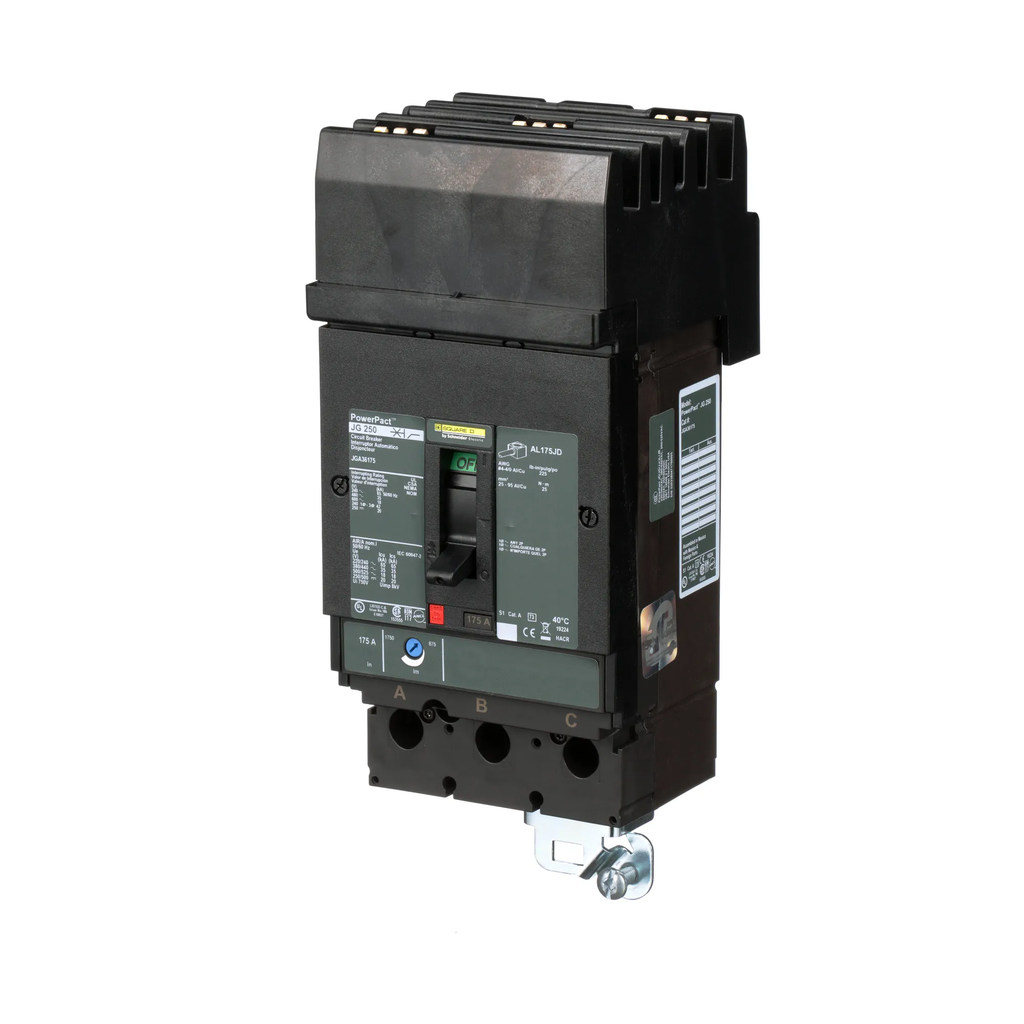

JGA36175 is a Square D PowerPact J-frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial power distribution systems.

This 3-pole breaker features a 175A continuous current rating, 600VAC voltage rating, and a high interrupting capacity of 35kA at 480V. It utilizes a thermal-magnetic trip unit for both overload and short-circuit protection, and is designed for I-Line plug-in mounting. The JGA36175 is UL listed and suitable for use in a wide range of applications where dependable circuit protection is essential.

Key Specifications

• Part Number: JGA36175
• Manufacturer: Square D
• Series/Frame: PowerPact J
• Amperage: 175A
• Voltage: 600VAC, 250/500VDC
• Poles: 3

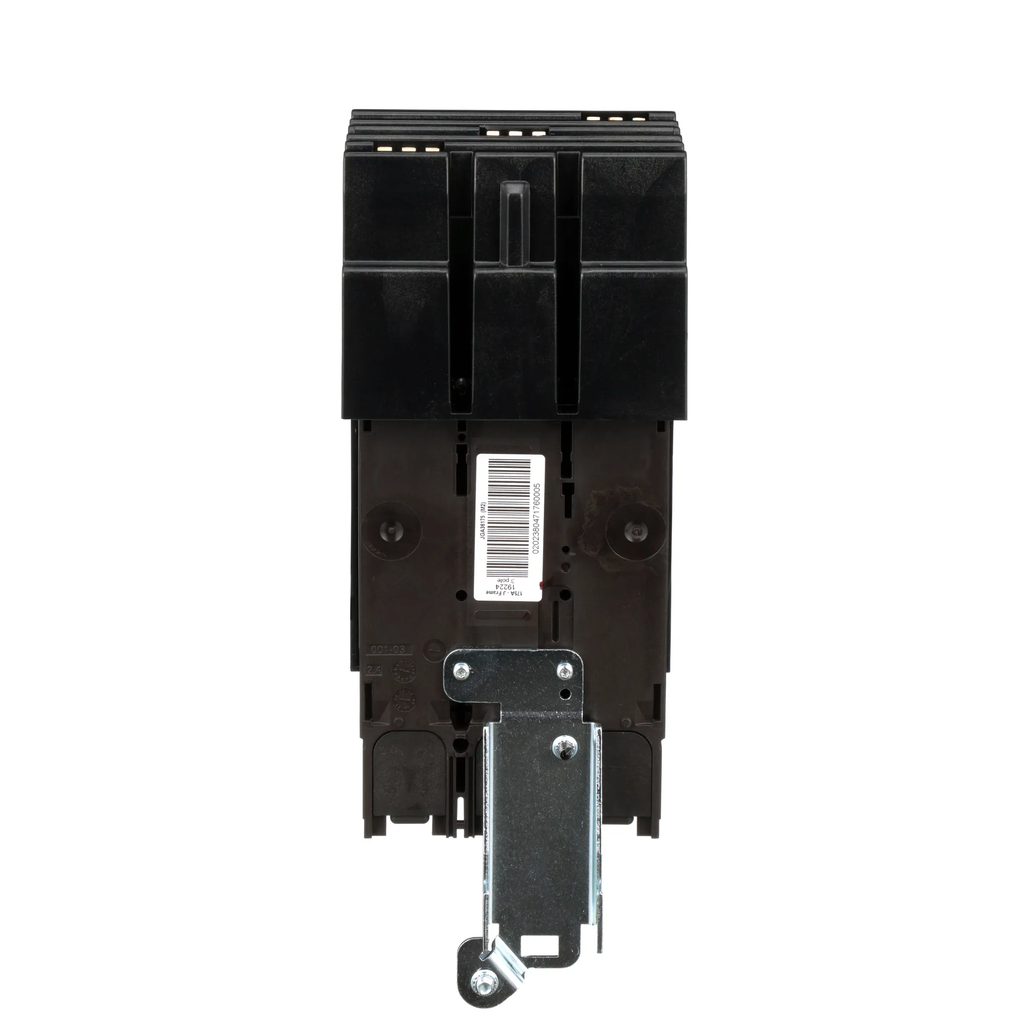

• Mounting Type: I-Line plug-in
• Interrupt Rating: 35kA at 480VAC
• Trip Unit: Thermal-magnetic (LI – Long-time and Instantaneous)
• Connection: ABC phase, I-Line style
• Certifications: UL listed, CSA, CE, IEC, NOM, UKCA
• Continuous Current Rating: 80%
• Control Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGA36175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGA
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 4 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901700685
• GTIN : 00785901700685
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.625 lb
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
