Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
JGA262501

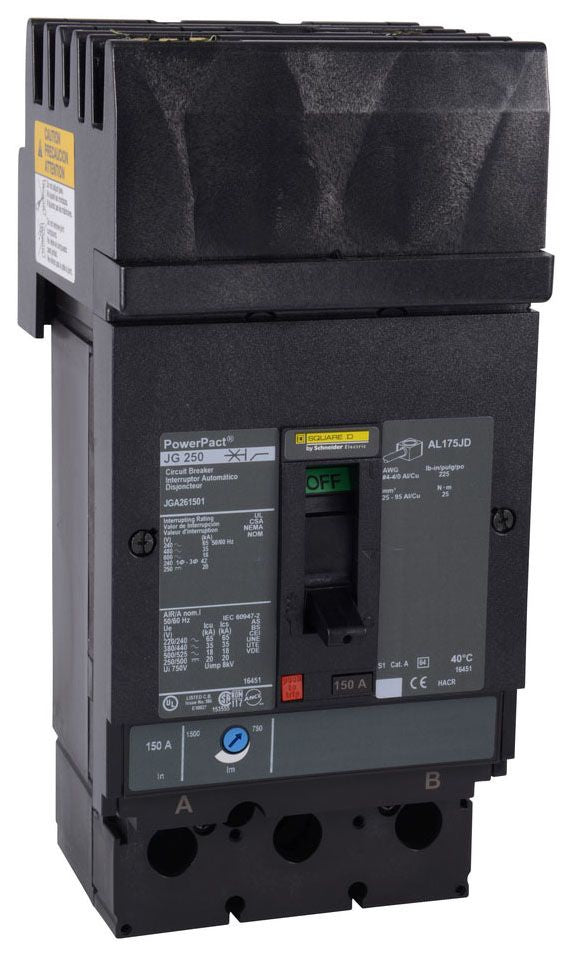

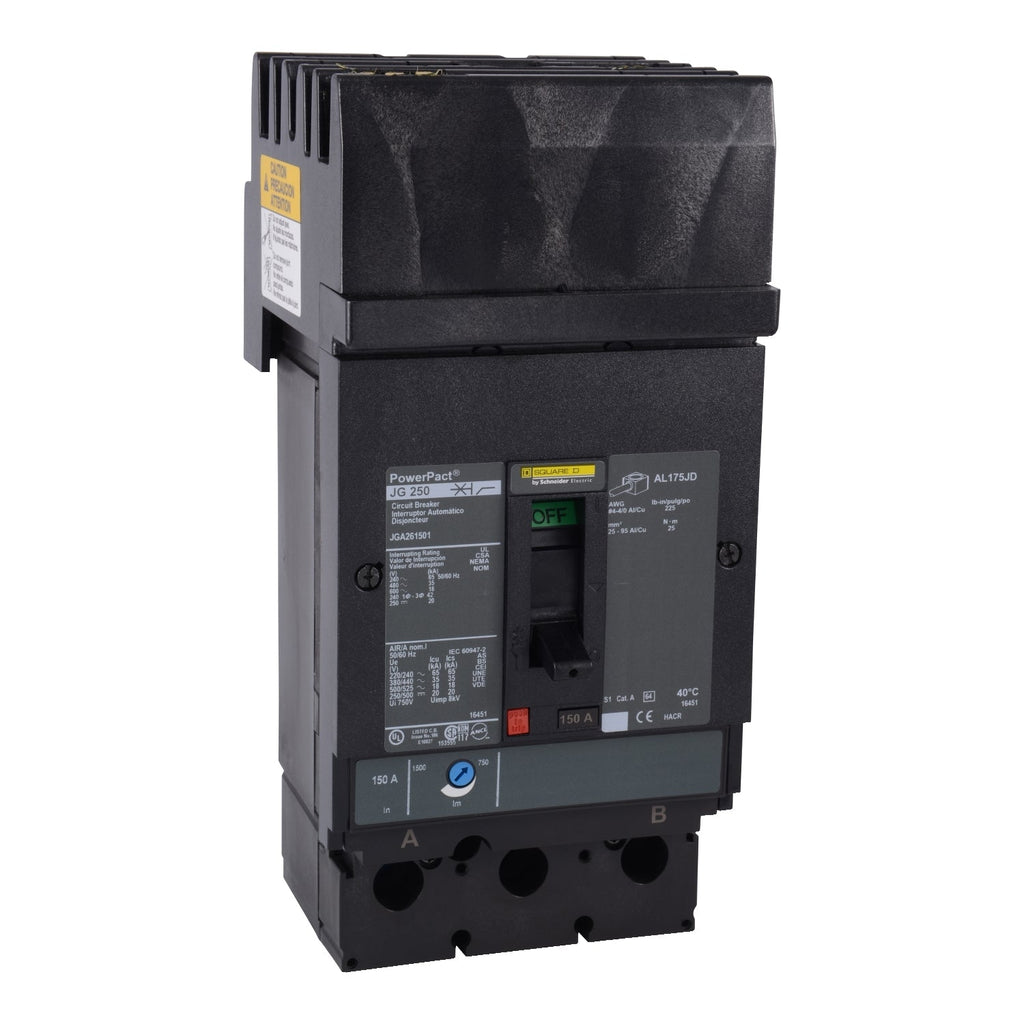

JGA262501 is a Square D PowerPact J-Frame, 2-pole, 250A, 600V molded case circuit breaker designed for I-Line panelboard and switchboard applications.
This thermal magnetic, current-limiting circuit breaker features a plug-in mounting style, non-interchangeable trip unit, and is suitable for reverse fed applications. It offers long-time and instantaneous (LI) protection, with high interrupting capacity ratings for reliable distribution circuit protection.
-
Key Specifications
- Manufacturer: Square D
- Part Number: JGA262501
- Amperage: 250A
- Voltage: 600V AC, 250V DC
- Poles: 2
- Mounting Type: I-Line Style Plug-In
- Interrupt Rating: 35kA @ 480V AC, 65kA @ 240V AC, 18kA @ 600V AC
- Series/Frame: PowerPact J-Frame
- Trip Unit: Thermal Magnetic, Non-Interchangeable, LI (Long-Time & Instantaneous)
- Certifications: UL, CSA, CE
- Connection: A & B Phase
- Application: Distribution, suitable for reverse fed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JGA262501
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JGA
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Plug In Panelboard
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 250A/JG
- Temp Rating : 28-158 °F (-2-70 °C)
- MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : AB
Product Data
- UPC : 785901882176
- GTIN : 00785901882176
- Country of Origin : United States

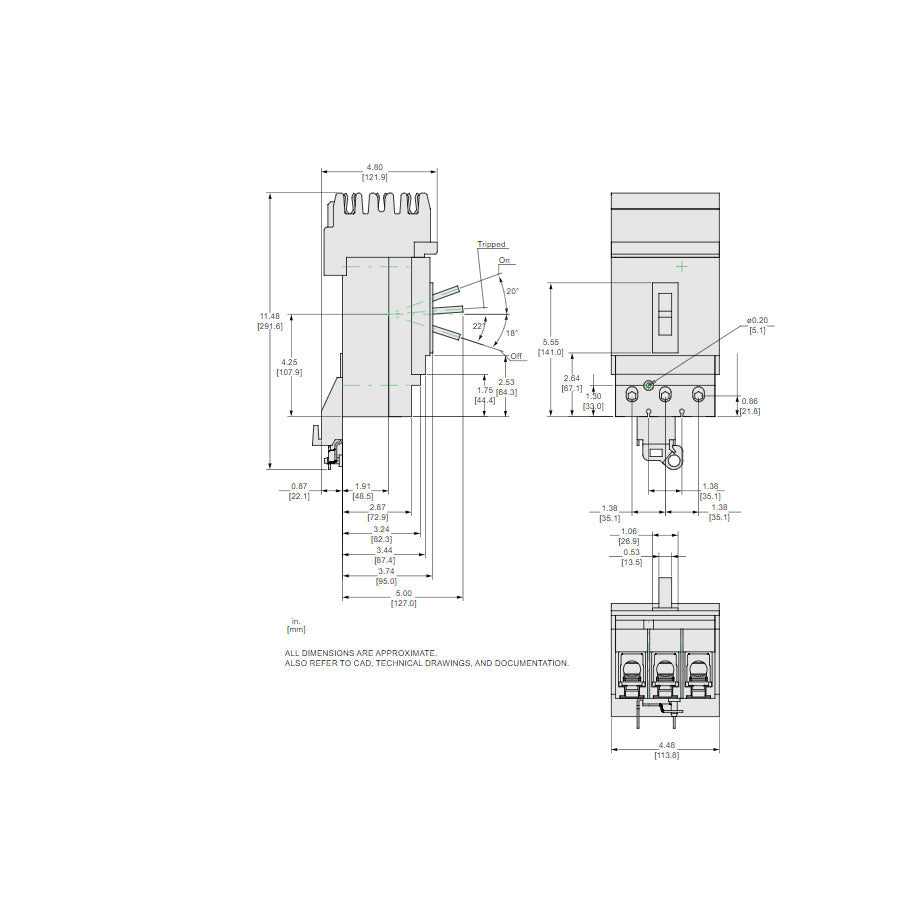

- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.5
- Panel Type : I Line Panelboards
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
