Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
JDM36250U31X

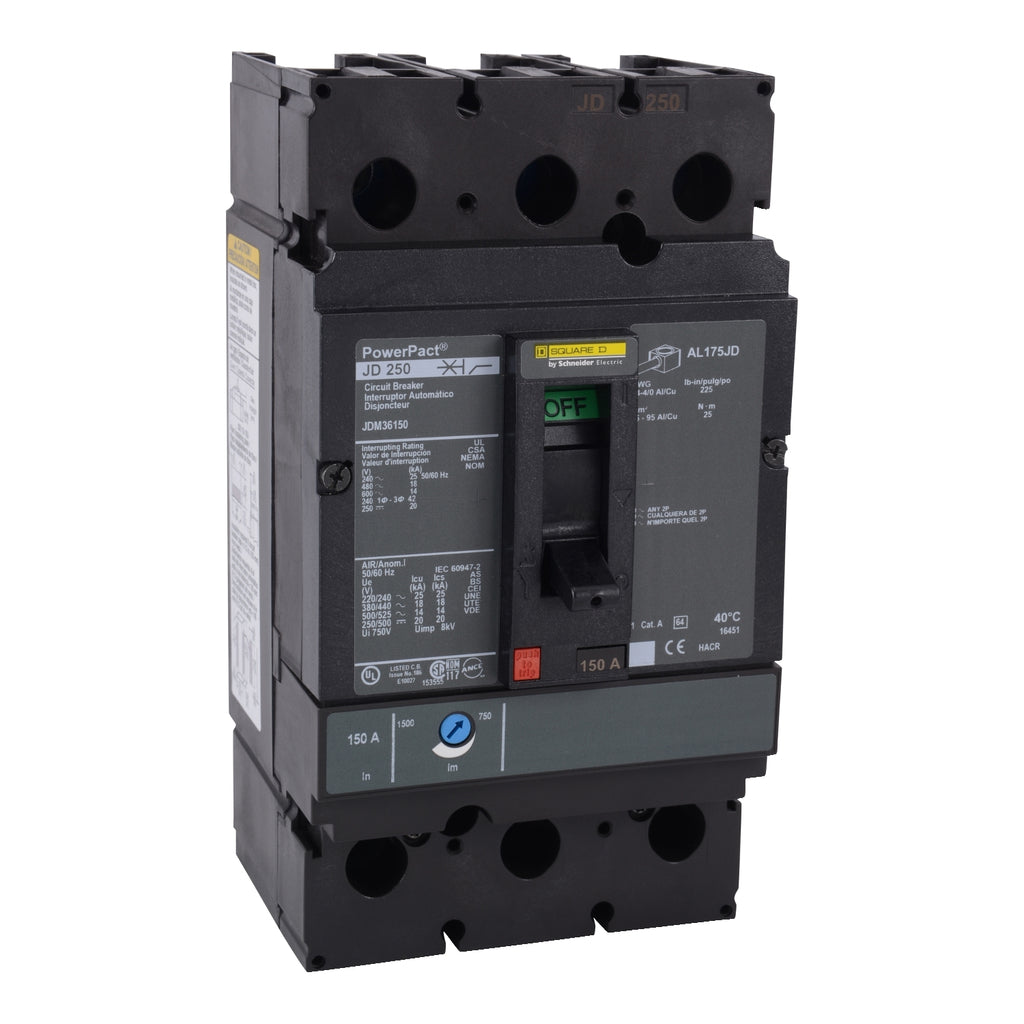

JDM36250U31X is a Square D Powerpact J Frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications. This 3 pole, 250A, 600V circuit breaker features a feed-thru design and is suitable for reverse fed installations. The breaker is equipped with long time and short time trip functions for precise protection and includes non-interchangeable trip technology for added security.Engineered for durability and performance, the JDM36250U31X offers thermal magnetic protection and is compatible with line and load side lug terminals. Its robust construction ensures dependable operation in demanding environments.
- Part Number: JDM36250U31X
- Manufacturer: Square D
- Series/Frame: Powerpact J Frame
- Poles: 3
- Amperage: 250A
- Voltage: 600V AC
- Mounting Type: Plug-On
- Interrupt Rating: 18kAIC @ 480V
- Trip Unit: Non-Interchangeable, LS Trip Functions
- Protection Type: Thermal Magnetic
- Terminal Type: Line & Load Side Lug
- Application: Suitable for Reverse Fed
Specifications
- Part Number: JDM36250U31X
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JDM
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Solid State
Product Data
- Weight : 5
