Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
JDL36250U53X

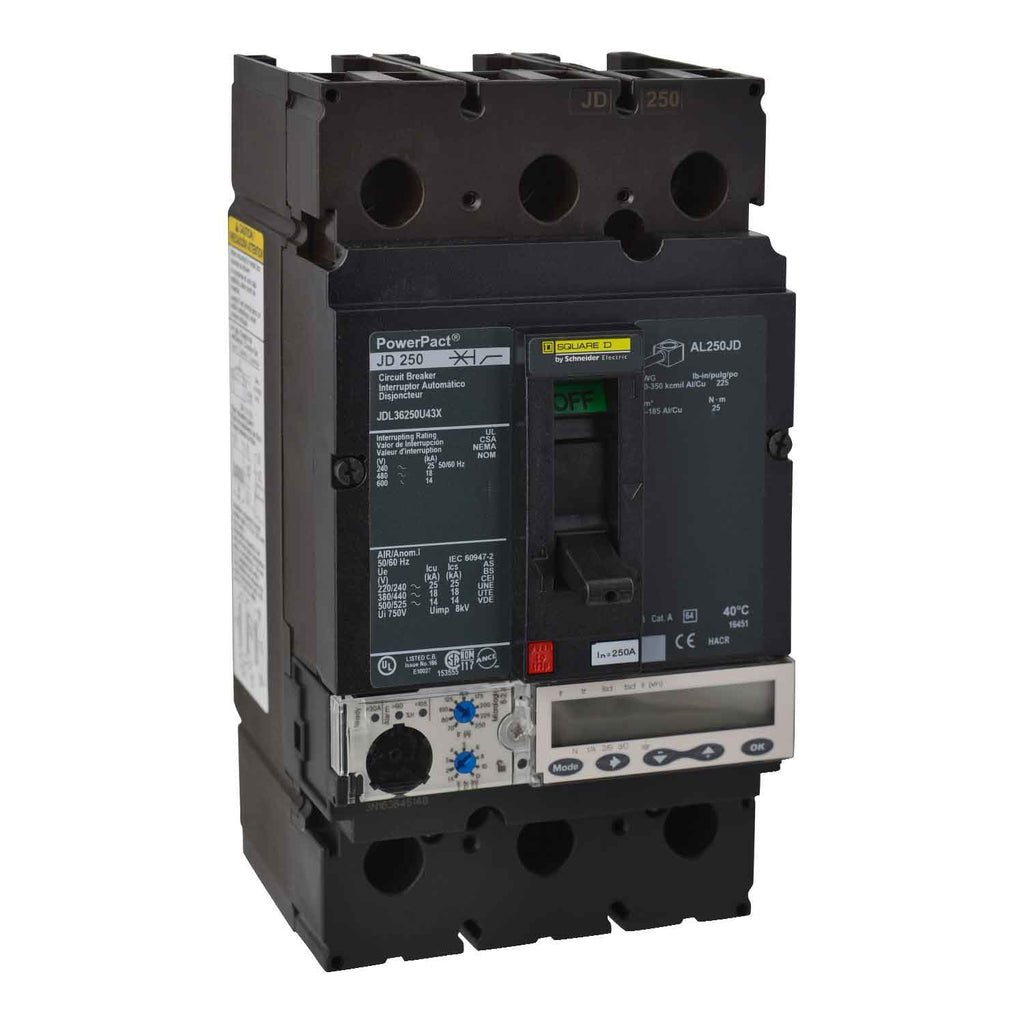

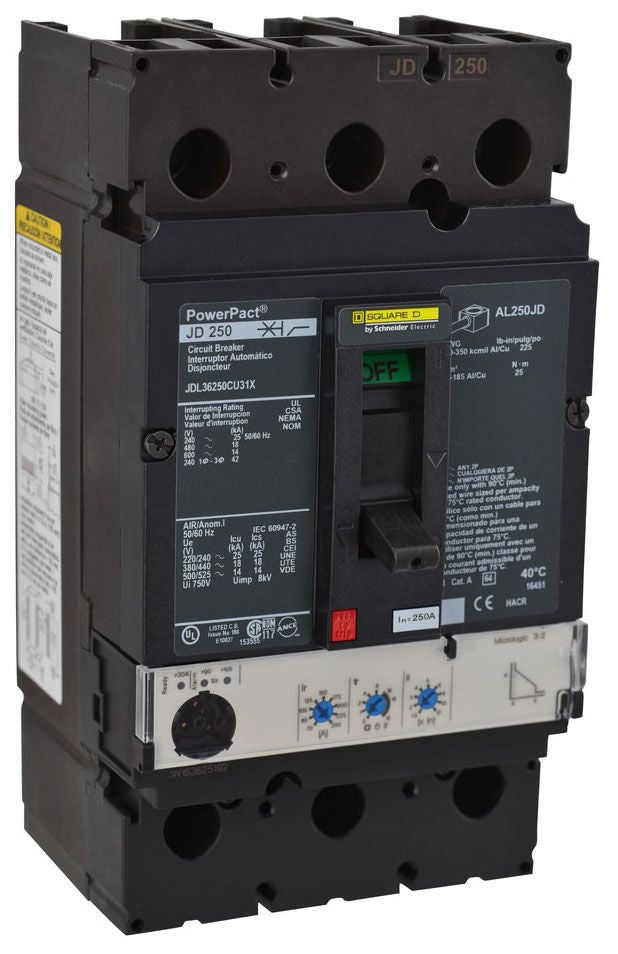

JDL36250U53X is a 250 amp, 3-pole molded case circuit breaker from Square D's Powerpact J series designed for 600 Volt applications with feed-through mounting.This circuit breaker features a standard interrupting capacity of 18kA at 480V, suitable for 3-phase power distribution. It is UL listed and designed for reliable protection in industrial and commercial electrical systems. The breaker supports feed-through mounting for flexible installation.
- Manufacturer: Square D
- Series/Frame: Powerpact J
- Amperage: 250A
- Voltage Rating: 600V
- Poles: 3
- Interrupt Rating: 18kA at 480V
- Mounting Type: Feed-Through
- Phase: 3-Phase
- UL Listed
Specifications
- Part Number: JDL36250U53X
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JDL
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : J Frame
- Temp Rating : 28-158 °F (-2-70 °C)
- Protection : Solid State
Product Data

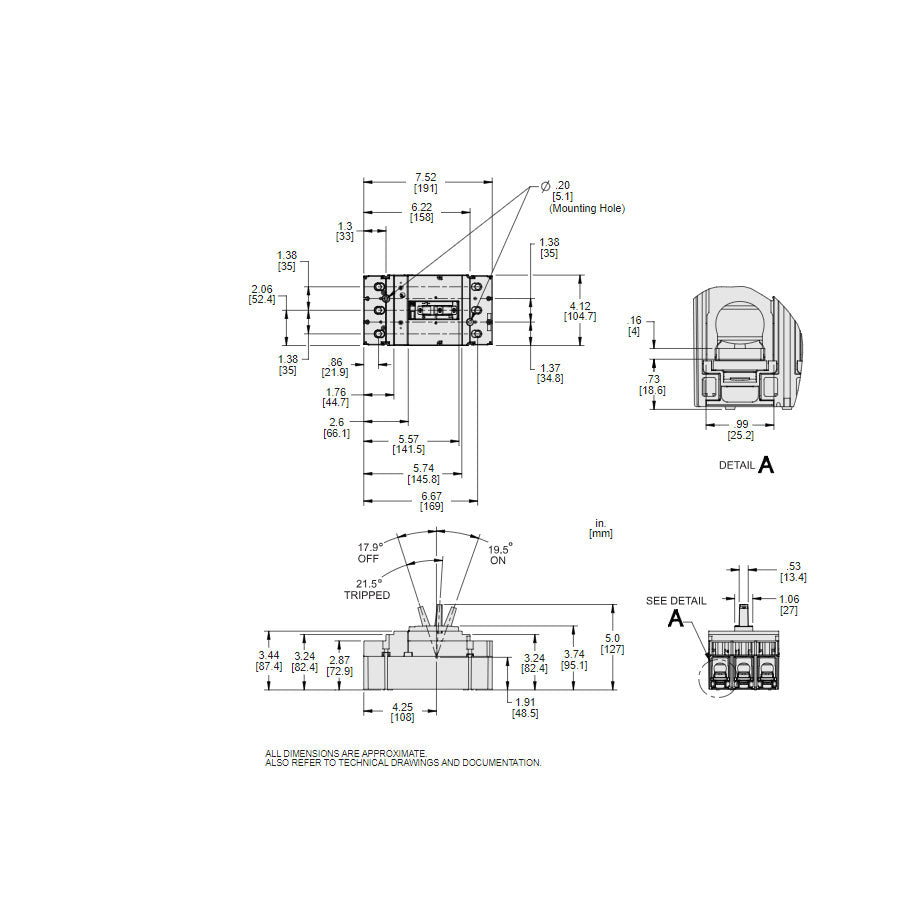

- Dimensions : Height 7.52 in (191 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
- Weight : 5
- Wire Size : AWG 3/0...350 kcmil aluminum/copper terminals
