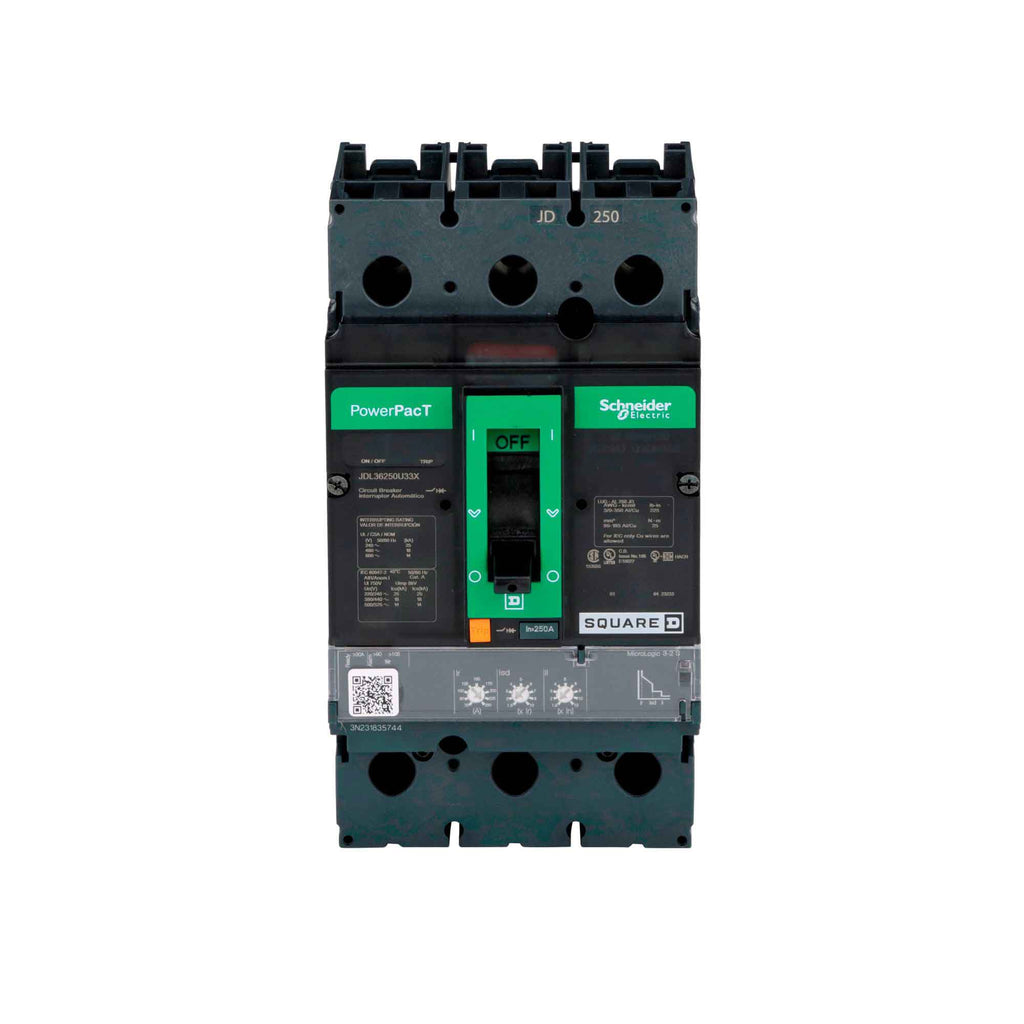

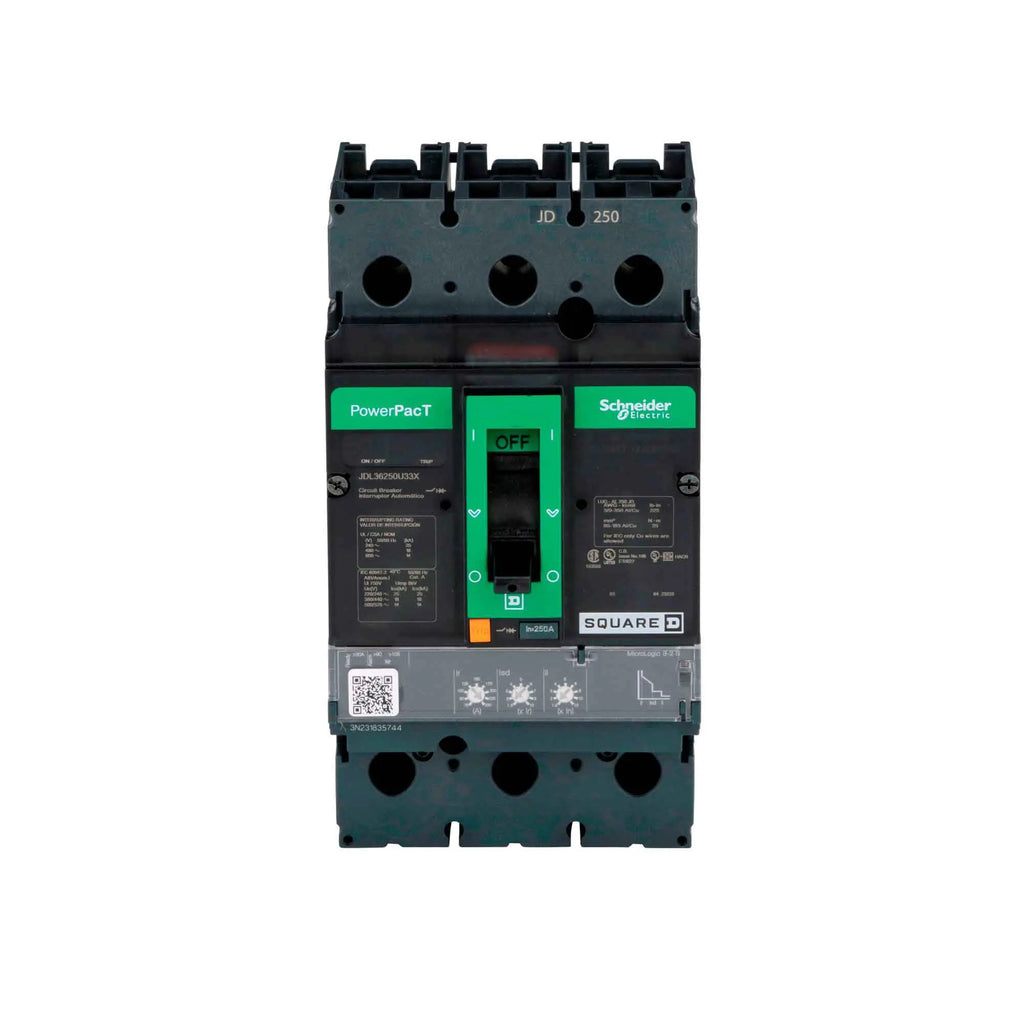

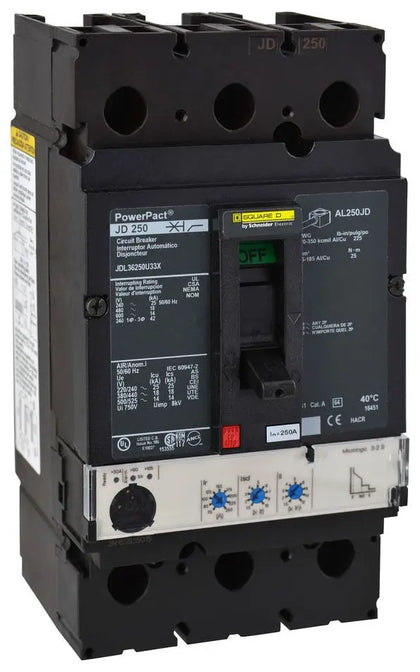

JDL36250U33X - Square D PowerPact J Molded Case Circuit Breaker 250A 600V 3 Pole Electronic Trip D Frame

JDL36250U33X

JDL36250U33X is a Square D PowerPact J molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole breaker features an electronic trip unit, 250A current rating, and a maximum voltage of 600V AC. It is built with a D frame and offers a high interrupt rating suitable for demanding environments. The unit is UL 489 listed and suitable for surface mounting. This breaker is part of the PowerPact J series, known for durability and advanced electronic trip technology. It supports wire sizes from 3/0 AWG to 350 kcmil (Al/Cu) and is designed for use in systems requiring robust protection and compliance with industry standards. The toggle actuator and line/load lug connections provide ease of installation and maintenance.

• Part Number: JDL36250U33X
• Manufacturer: Square D
• Series/Frame: PowerPact J, D Frame
• Amperage Rating: 250A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Interrupt Rating: 14/18/20/25 kA
• Mounting Type: Surface Mount
• Connection Type: Line/Load Lug
• Wire Size: 3/0 AWG to 350 kcmil Al/Cu
• Trip Type: Electronic Standard Micrologic 3.2 S LSI
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL36250U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901965404
• GTIN : 00785901965404
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.2
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
