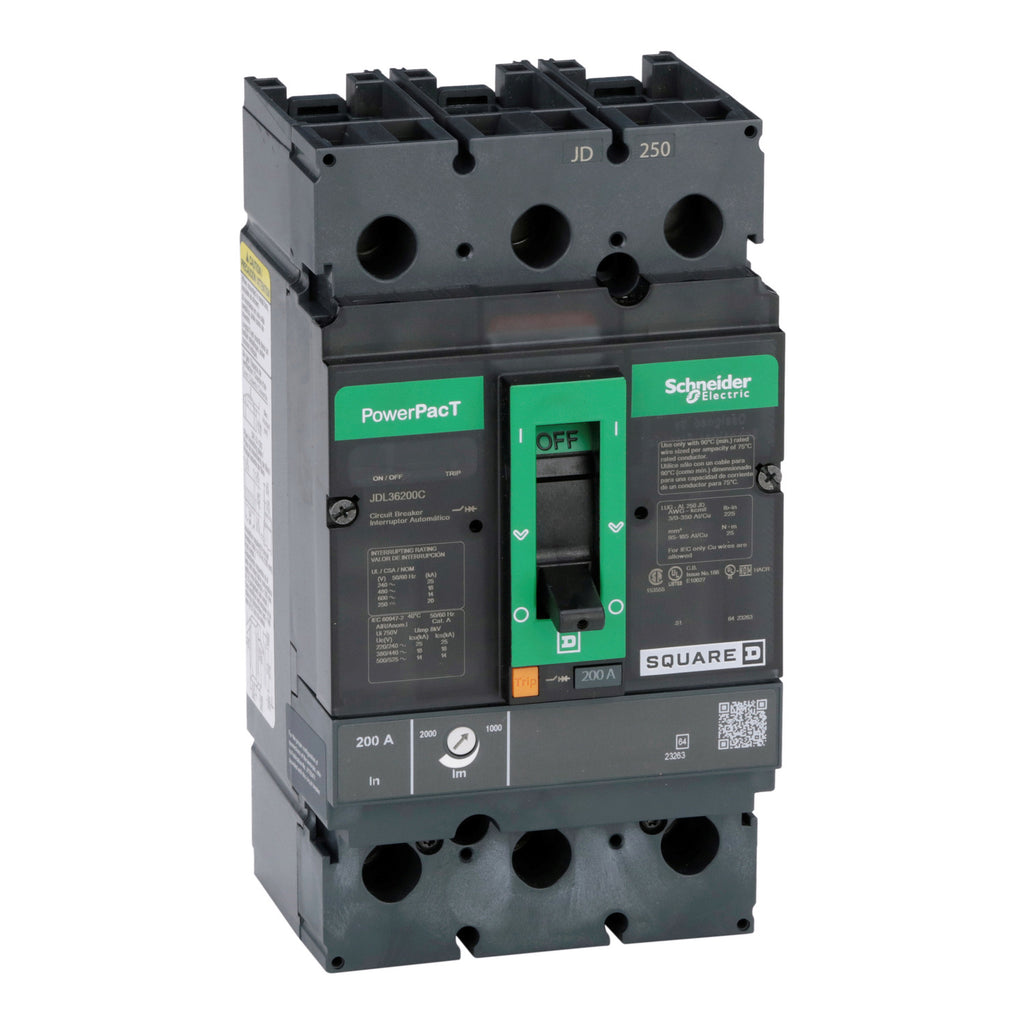

JDL36200C - Square D 200A 600V 3-Pole J-Frame Molded Case Circuit Breaker

JDL36200C

JDL36200C is a Square D molded case circuit breaker designed for 200 amp, 600 volt applications with 3 poles and J-frame construction.JDL36200C features thermal-magnetic trip technology with long-time and instantaneous protection functions, suitable for three-phase power distribution. It supports unit mount lug installation and offers an interrupt rating of 18kA at 480V, UL listed for safety and reliability.

Key Specifications
• Amperage: 200 Amp
• Voltage: 600 Volt AC, 250 Volt DC
• Poles: 3
• Frame Type: J-Frame
• Mounting Type: Unit Mount Lug
• Interrupt Rating: 18kA at 480V, 14kA at 600V, 20kA DC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Connection: Line and Load Side Lugs
• Standards: UL 489 Listed
• Dimensions: 7.52" H x 4.12" W x 5" D
• Weight: 5.29 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL36200C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901671367
• GTIN : 00785901671367
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
