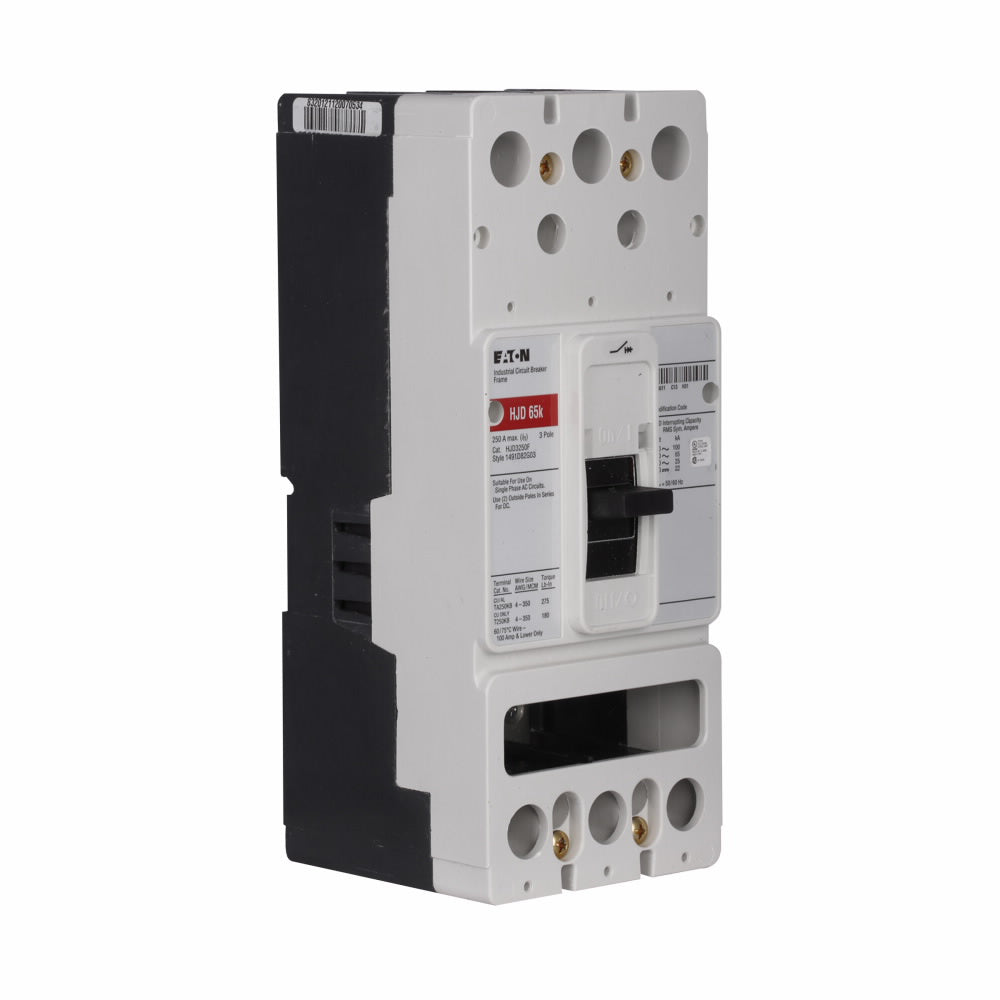

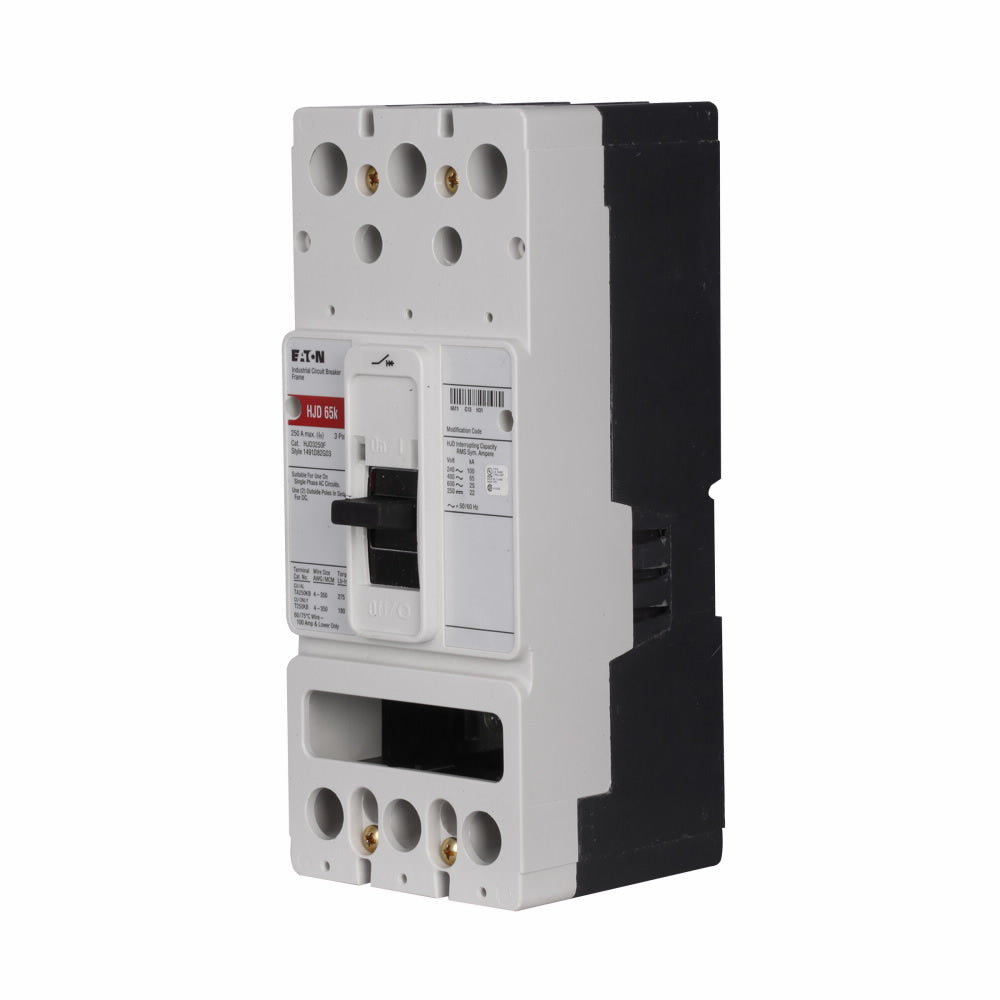

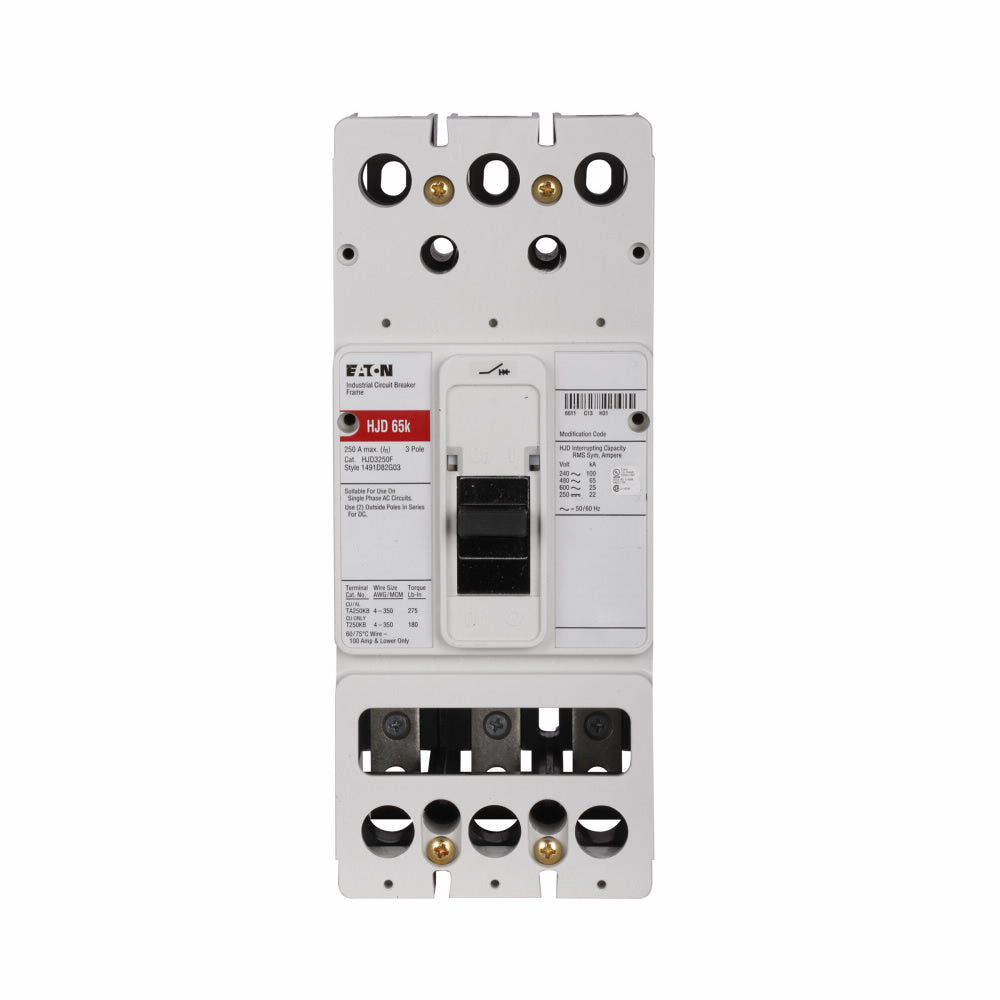

JDC3250F - Cutler Hammer 250A 600V 3-Pole Series C Molded Case Circuit Breaker Frame

JDC3250F

JDC3250F is a Cutler Hammer Series C molded case circuit breaker frame rated for 250 amps and 600 volts AC with 3 poles.This circuit breaker frame is designed for use in industrial and commercial power distribution systems. It features a thermal magnetic trip unit with long time and instantaneous trip functions, current limiting capability, and is suitable for reverse fed applications. The frame is bolt-on type, J-frame style, and rated for 100kA interrupting capacity at 480V. It supports 3-phase feed-thru connections and operates at 40°C ambient temperature.

Key Specifications
• Amperage Rating: 250 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: Series C, J-frame
• Trip Unit: Thermal Magnetic (T186)
• Interrupt Rating: 100kA @ 480V
• Mounting Type: Bolt-on
• Suitable for Reverse Fed Applications
• Current Limiting
• Phase: 3 Phase
• Frequency: 50/60 Hz
• Non-interchangeable frame only
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Frame only, Trip unit and lugs not included.




Specifications

• Part Number: JDC3250F
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JDC
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 786679516393
• GTIN : 00786679516393
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 9.15
• Certification : UL Listed
