Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDC2175

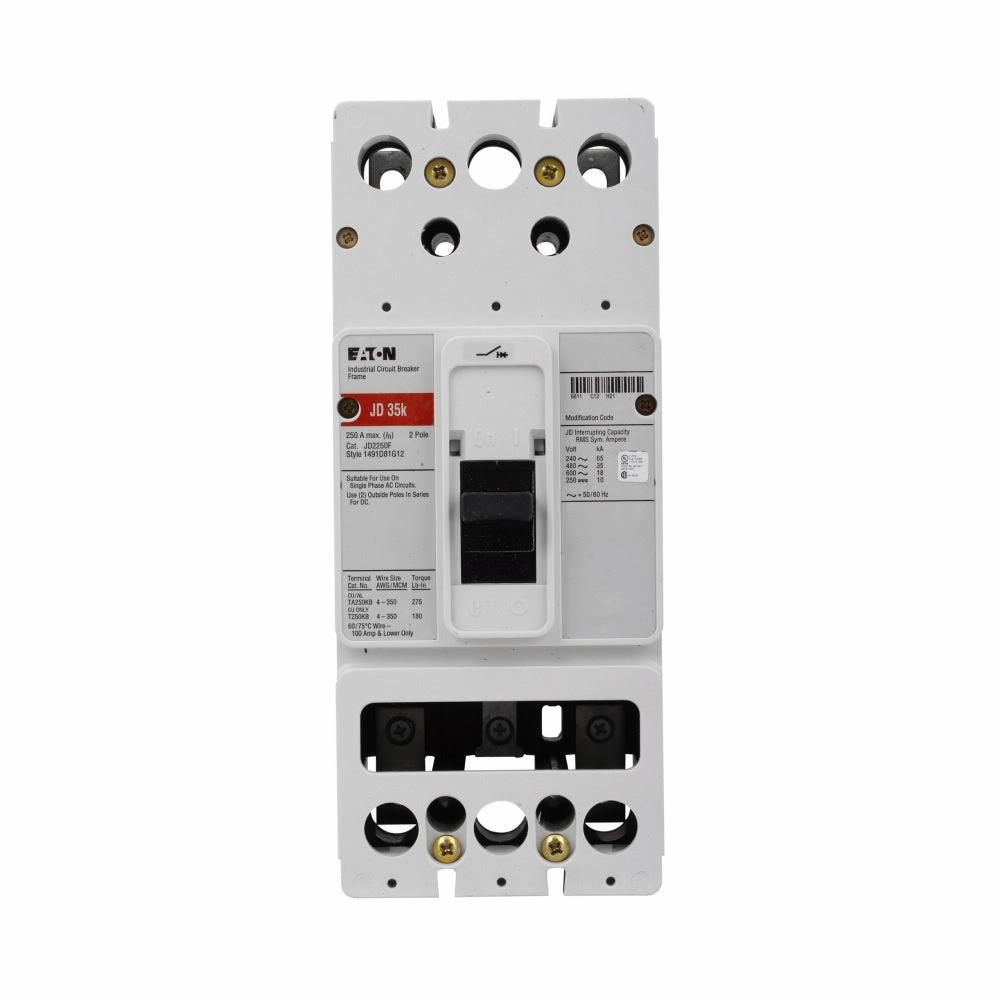

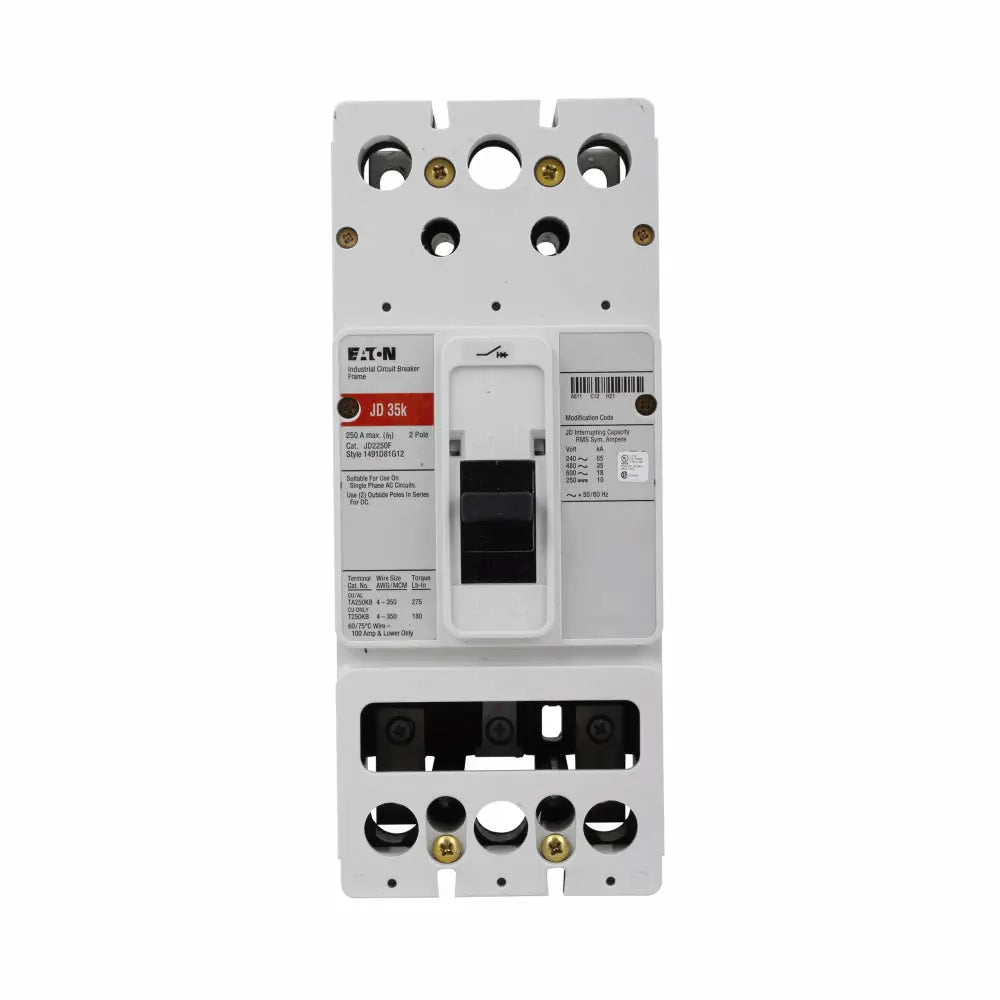

JDC2175 is a 175 Amp, 2-pole molded case circuit breaker from Eaton's J-Frame series designed for reliable circuit protection.This Eaton JDC2175 breaker features a 2-pole configuration with a 175 Ampere rating suitable for various electrical distribution applications. It offers high interrupting capacity with ratings of 65kA at 240VAC and 35kA at 480VAC, ensuring robust short circuit protection. The breaker is designed for line and load terminals and complies with HACR rating standards. It is part of Eaton's J-Frame molded case circuit breaker family, known for durability and performance in industrial and commercial settings.
- Key Specifications
- Amperage: 175 Amps
- Poles: 2
- Frame Type: J-Frame
- Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC
- Mounting Type: Molded Case
- Trip Unit: Non-interchangeable
- HACR Rated
- Manufacturer: Eaton
- Part Number: JDC2175
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDC
- Voltage : 600
- Amperage : 175
- Phase : 1
- Poles : 2
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
- UPC : 782116137794
- GTIN : 00782116137794
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 12.1
- Certification : UL Listed
