Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Auxiliary
Description
A2X2RTK

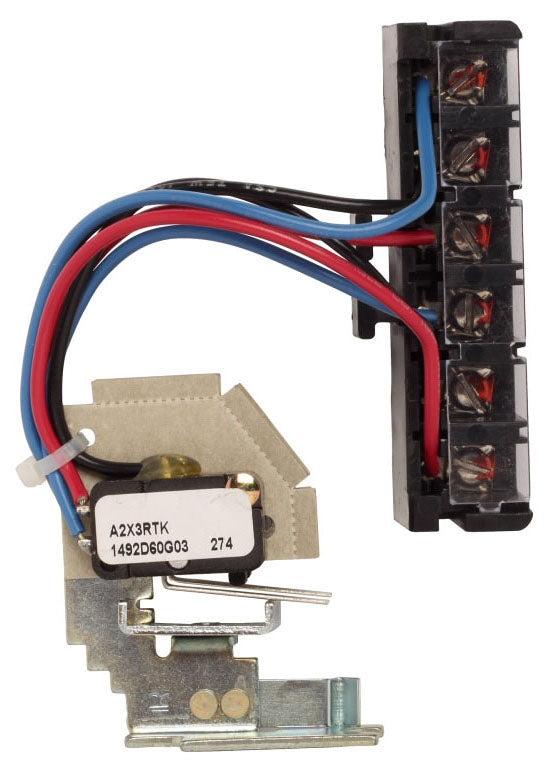

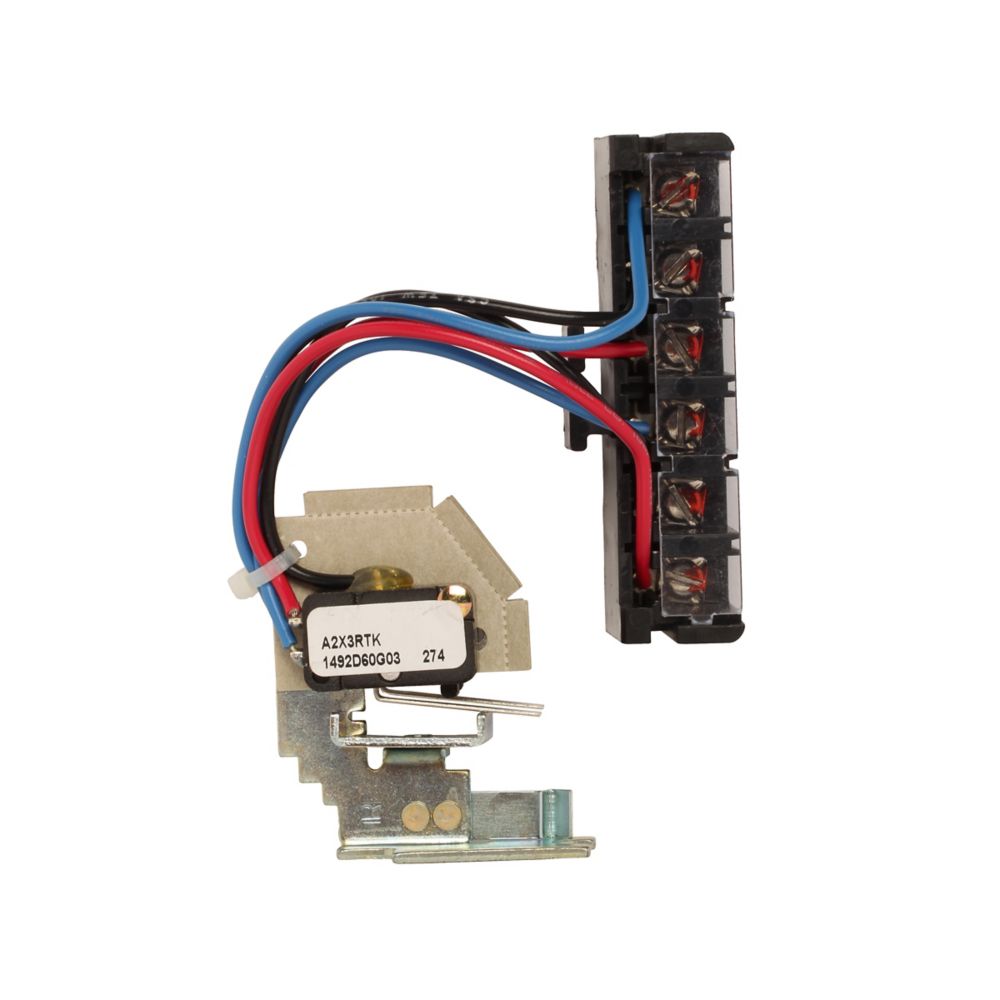

A2X2RTK is a field-mounted auxiliary switch factory installation kit designed for Cutler Hammer J-frame HMCP molded case circuit breakers. This right-hand mount accessory provides additional contact capability to circuit breaker applications requiring auxiliary switching functions. A2X2RTK features a 2A/2B contact configuration, delivering two normally open and two normally closed contacts for flexible control and monitoring circuits. The auxiliary switch is rated for 600 VAC, 125 VDC, and 250 VDC applications, making it suitable for a wide range of industrial and commercial power distribution systems. Compatible with JDB, JD, HJD, and JDC frame breakers in Series G, this accessory integrates seamlessly into existing installations.
- Contact Configuration: 2A/2B (2 NO + 2 NC)
- Voltage Rating: 600 VAC / 125 VDC / 250 VDC
- Mounting Type: Field-mounted, right-hand
- Frame Compatibility: J-K Frame, Series G
- Breaker Compatibility: JDB, JD, HJD, JDC frames
- Installation: Factory installation kit included
- Application: Auxiliary switching for circuit breaker control
Specifications
- Part Number: A2X2RTK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Auxiliary
- Family : Series C
- Type : A2X
- Configuration : 2A/2B
- Compatible Frames : JDB,JD,HJD,JDC
Product Data
- UPC : 786679572030
- GTIN : 00786679572030
- Country of Origin : Dominican Republic
- Dimensions : 4.8 in x 4.8 in x 4 in (Length/Depth x Height x Width)
- Weight : 0.4
- Certification : UL Listed
