2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JDB3200W

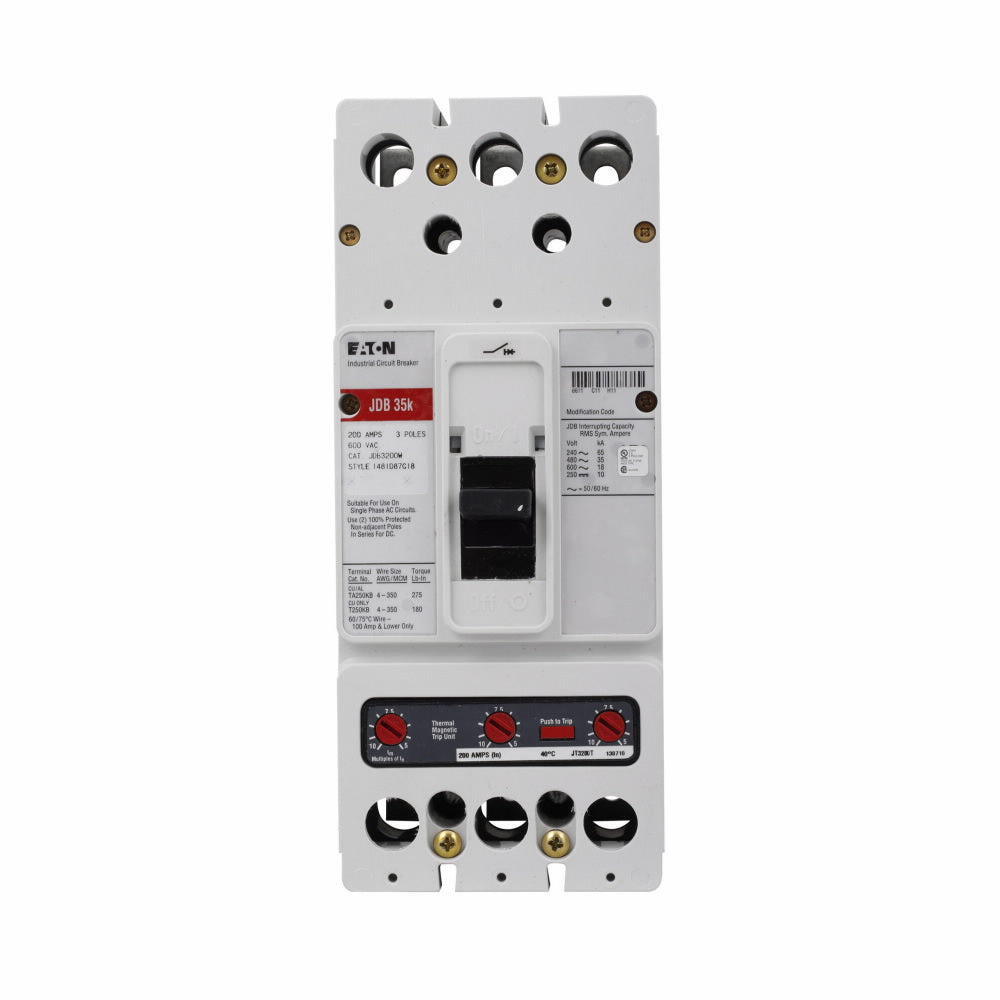

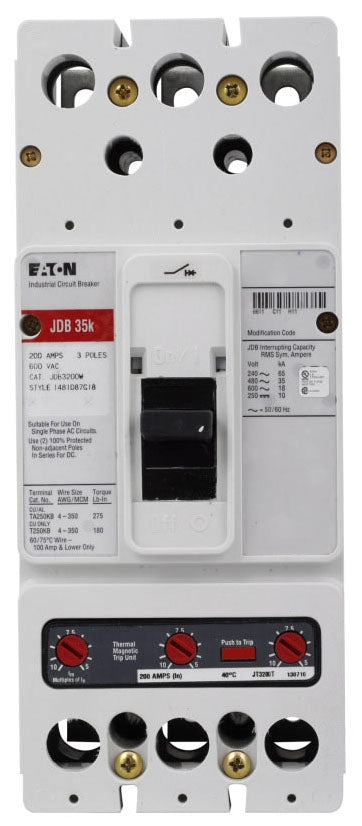

JDB3200W is a 200 amp, 3-pole molded case circuit breaker from Eaton's J-Frame Series C line designed for reliable circuit protection.This Eaton JDB3200W circuit breaker features a 600 VAC voltage rating and a fixed thermal-magnetic trip unit. It provides interrupt ratings of 35 kAIC at 480 VAC and 65 kAIC at 240 VAC, suitable for industrial and commercial applications. The breaker is designed for three-phase power systems and offers robust protection with a compact J-frame design.
- Key Specifications
- Amperage: 200 A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Frame: J-Frame (Series C)
- Interrupt Rating: 35 kAIC at 480 VAC
- Interrupt Rating: 65 kAIC at 240 VAC
- Trip Unit: Fixed Thermal-Magnetic
- Frequency: 50/60 Hz
- Mounting Type: Molded Case
- Part Number: JDB3200W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
- UPC : 786679516317
- GTIN : 00786679516317
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 11.25
- Certification : UL Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
