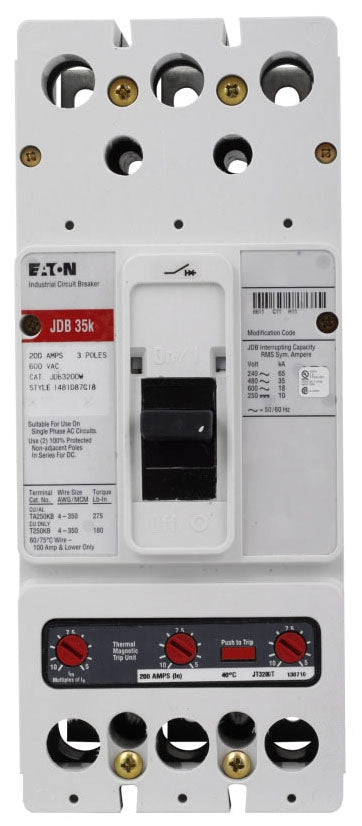

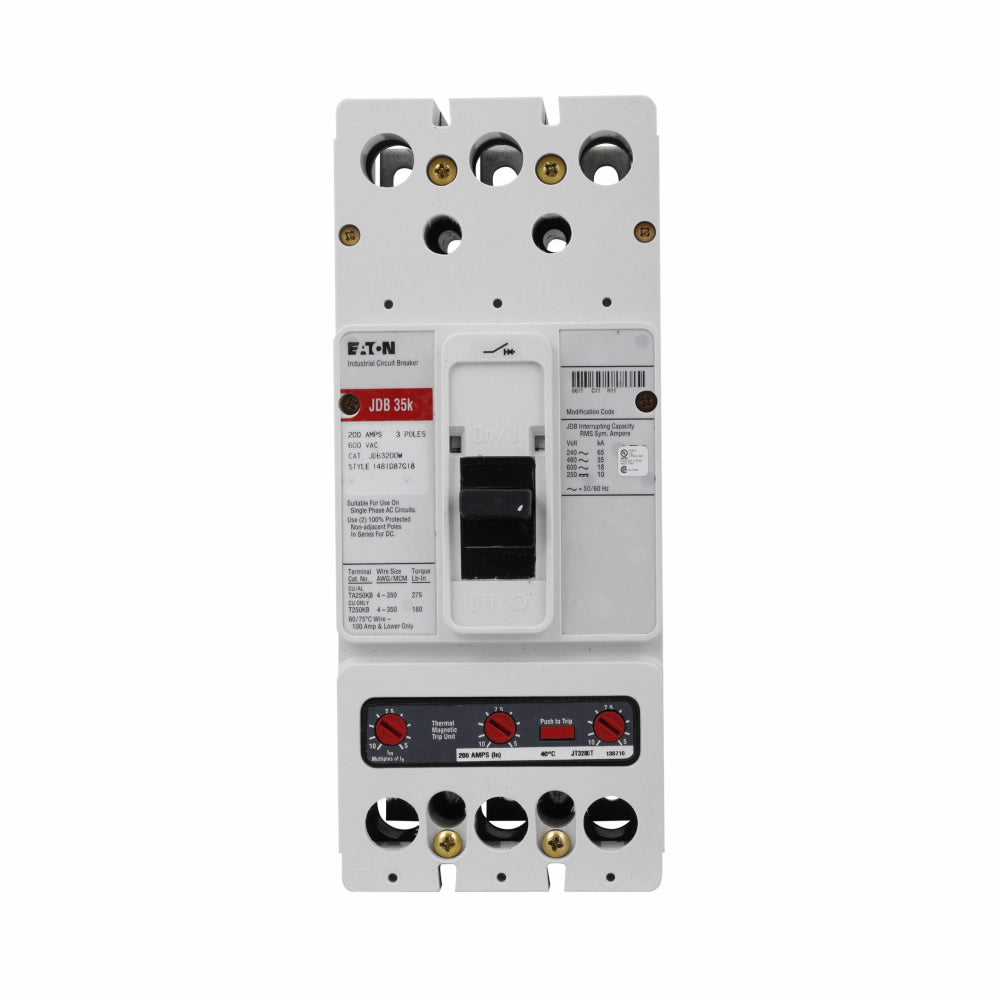

JDB3200X - Eaton Series C 3-Pole 200A 600V Molded Case Circuit Breaker

JDB3200X

JDB3200X is an Eaton Series C complete molded case circuit breaker designed for three-phase power distribution applications. This J-frame breaker features a 200-ampere rating at 600 volts AC (250 volts DC) with fixed thermal and fixed magnetic trip protection for reliable overcurrent and short-circuit detection. Key Specifications

• Amperage Rating: 200 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: 3
• Frame Type: J-Frame
• Trip Type: Fixed Thermal, Fixed Magnetic
• Interrupt Rating: 65 kAIC at 240 Vac
• Frequency Rating: 50 to 60 Hz
• Terminal Material: Aluminum with Line and Load Terminals
• Dimensions: 4.13 in H x 4.13 in W x 4.06 in D
• Weight: 11.25 lb
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDB3200X
• Manufacturer : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JDB
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 782114740521
• GTIN : 00782114740521
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 11.25
• Certification : UL Listed
