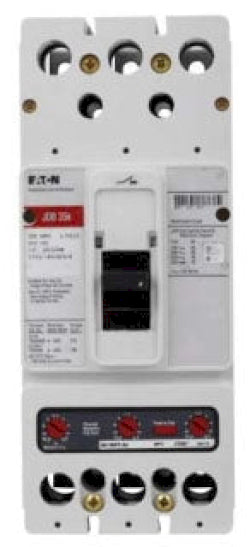

JDB2175 - Eaton 175 Amp 600 Volt Two Pole J-Frame Molded Case Circuit Breaker

JDB2175

JDB2175 is a 175 Amp, 600 Volt, two pole molded case circuit breaker from Eaton's J-Frame series.

This complete breaker features a fixed thermal and fixed magnetic trip unit, designed for reliable circuit protection with a high interrupt rating. It supports line and load connections, operates at 50/60 Hz, and is constructed with aluminum components. The breaker offers a 65 kA interrupt rating at 240 Volt and 35 kA at 480 Volt, suitable for demanding electrical environments. It includes patented high-speed blow-open contact design for superior performance and is compatible with a wide range of heavy-duty external accessories.

Key Specifications
• Amperage: 175 Amp
• Voltage Rating: 600 VAC, 250 VDC
• Poles: Two Pole
• Frame Type: J-Frame
• Interrupt Rating: 65 kA at 240 V, 35 kA at 480 V
• Trip Unit: Fixed Thermal and Magnetic
• Mounting Type: Line and Load
• Frequency: 50/60 Hz
• Material: Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDB2175
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JDB
• Voltage : 600
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679516102
• GTIN : 00786679516102
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 11.25
• Certification : UL Listed
