Description
JDB2070W

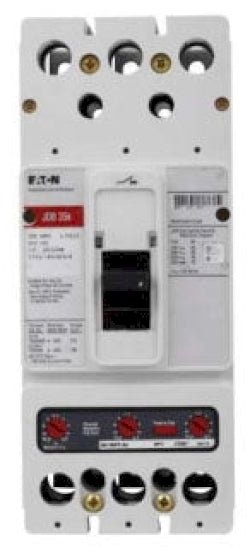

JDB2070W is an Eaton Series C molded case circuit breaker designed for industrial power distribution applications. This J-frame complete breaker features fixed thermal and fixed magnetic trip protection with bolt-on mounting for reliable circuit protection in demanding environments. Key Specifications
- Manufacturer: Eaton
- Part Number: JDB2070W
- Series: Series C
- Frame Type: J-Frame
- Poles: 2
- Amperage Rating: 70 Amp
- Voltage Rating: 600 VAC / 250 VDC
- Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Frequency: 50/60 Hz
- Mounting: Bolt-On
- Dimensions: 10 inches height, 4.06 inches length, 4.13 inches width
- Weight: 11.25 lbs
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: JDB2070W
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679516010
- GTIN : 00786679516010
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 11.25
- Certification : UL Listed
