Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
JDB2070

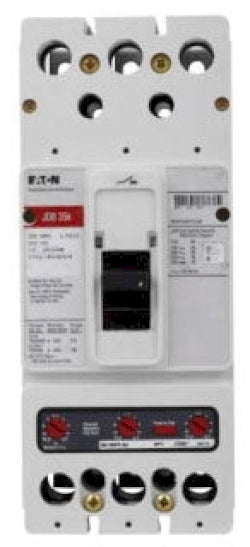

JDB2070 is a Cutler Hammer 2 pole molded case circuit breaker rated for 70 amps and 600 volts, designed for reliable circuit protection.JDB2070 belongs to the Series C family with a J frame, featuring fixed thermal and fixed magnetic trip units. It has an interrupt rating of 35kA at 600 VAC and 65kA at 250 VDC, suitable for industrial and commercial applications requiring robust overload and short circuit protection.
- Key Specifications
- Amperage: 70 Amps
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 2
- Interrupt Rating: 35kA @ 600 VAC, 65kA @ 250 VDC
- Frame/Series: Series C, J Frame
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Mounting Type: Molded Case
- Certifications: UL Listed
Specifications
- Part Number: JDB2070
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDB
- Voltage : 600
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679030134
- GTIN : 00786679030134
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 10.5
- Certification : UL Listed
