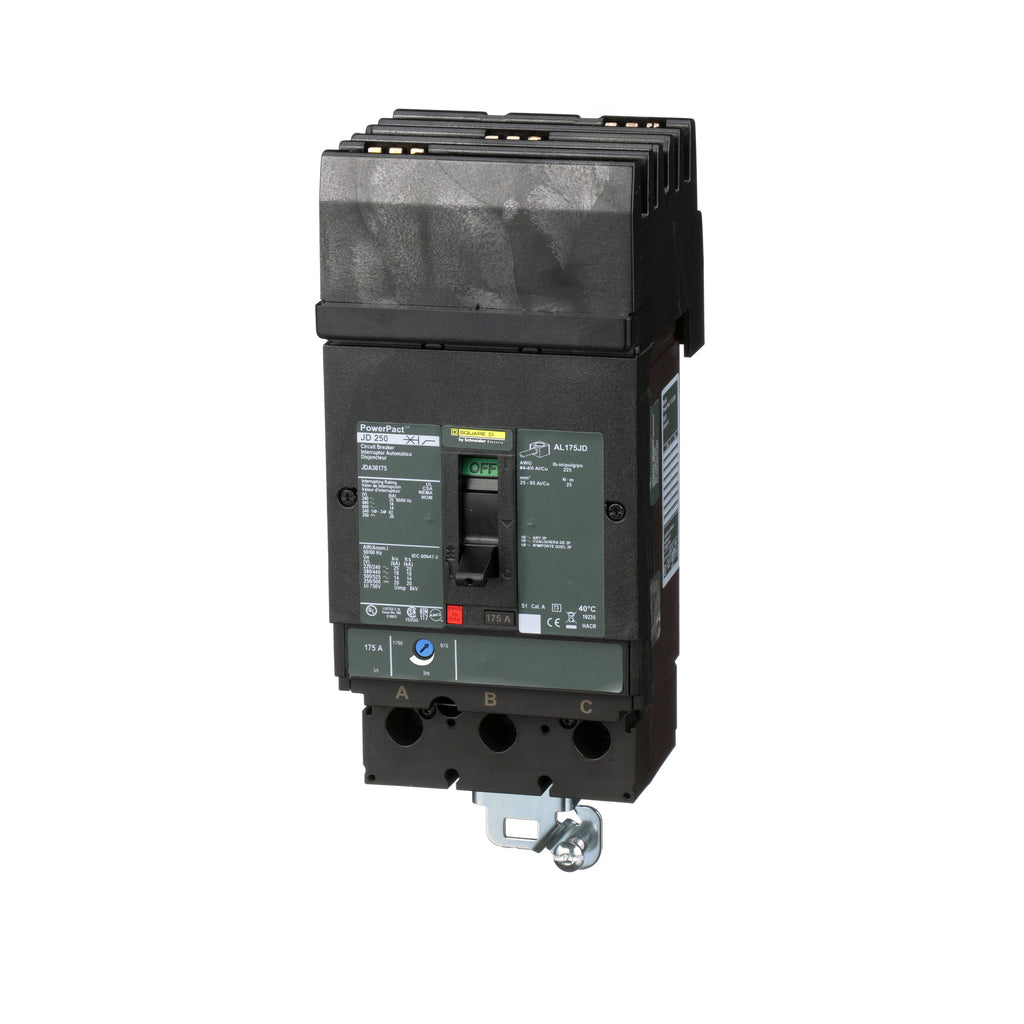

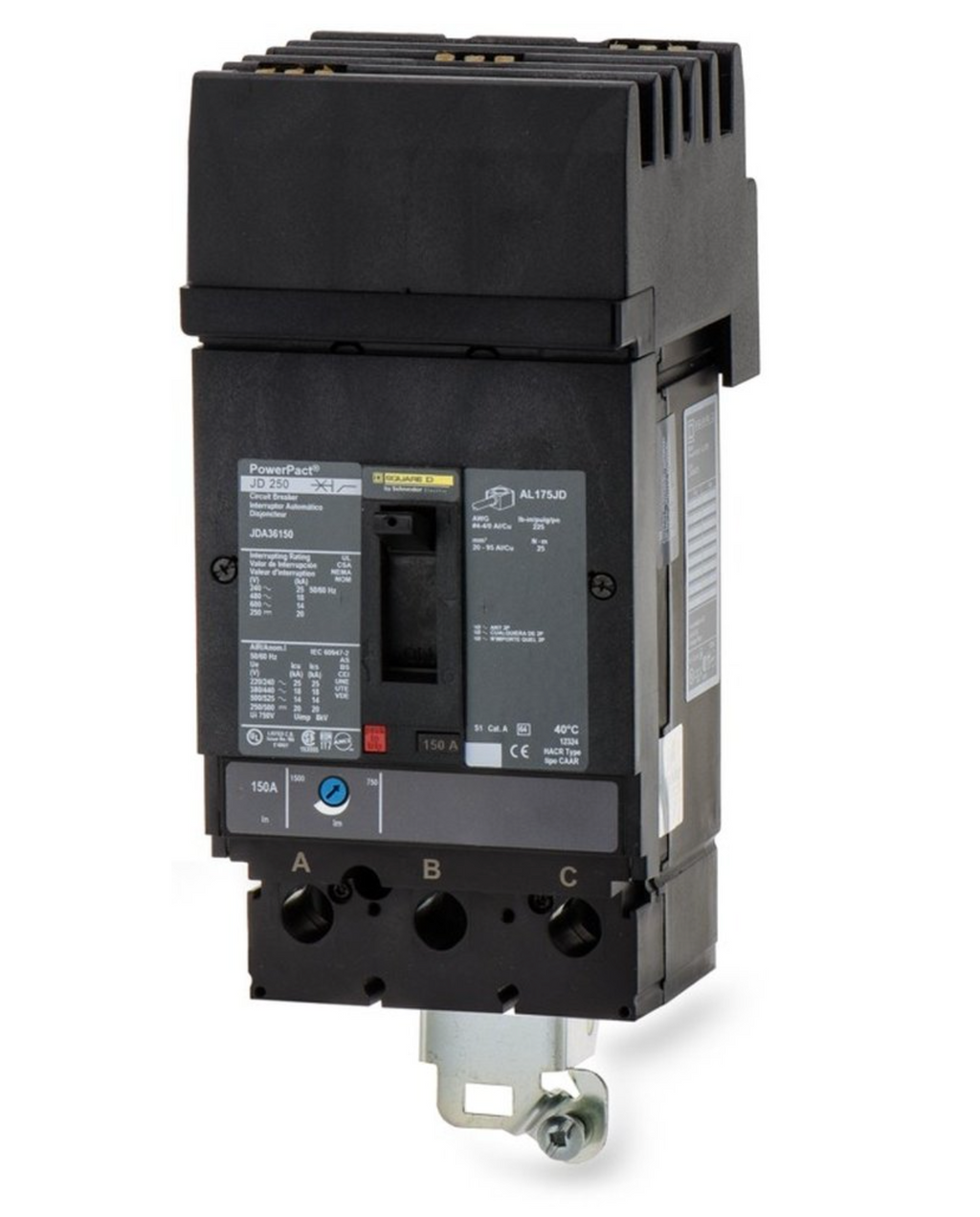

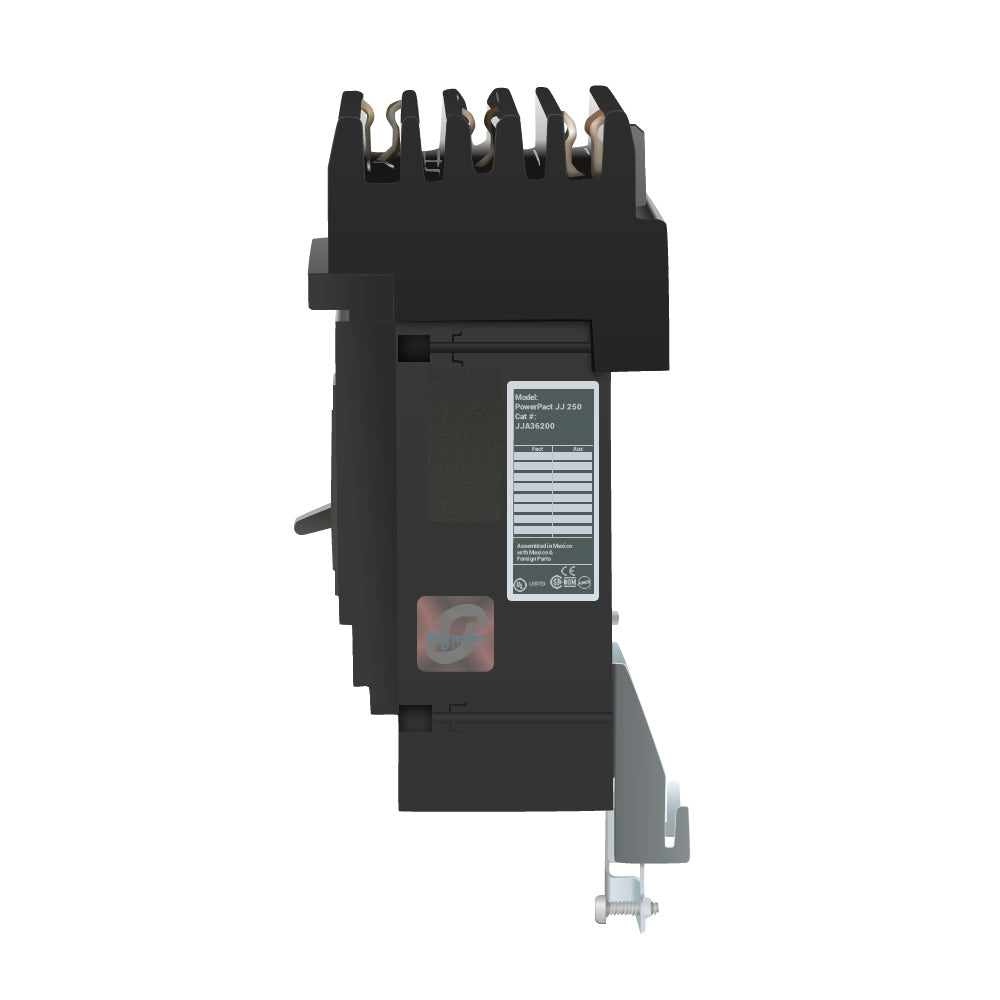

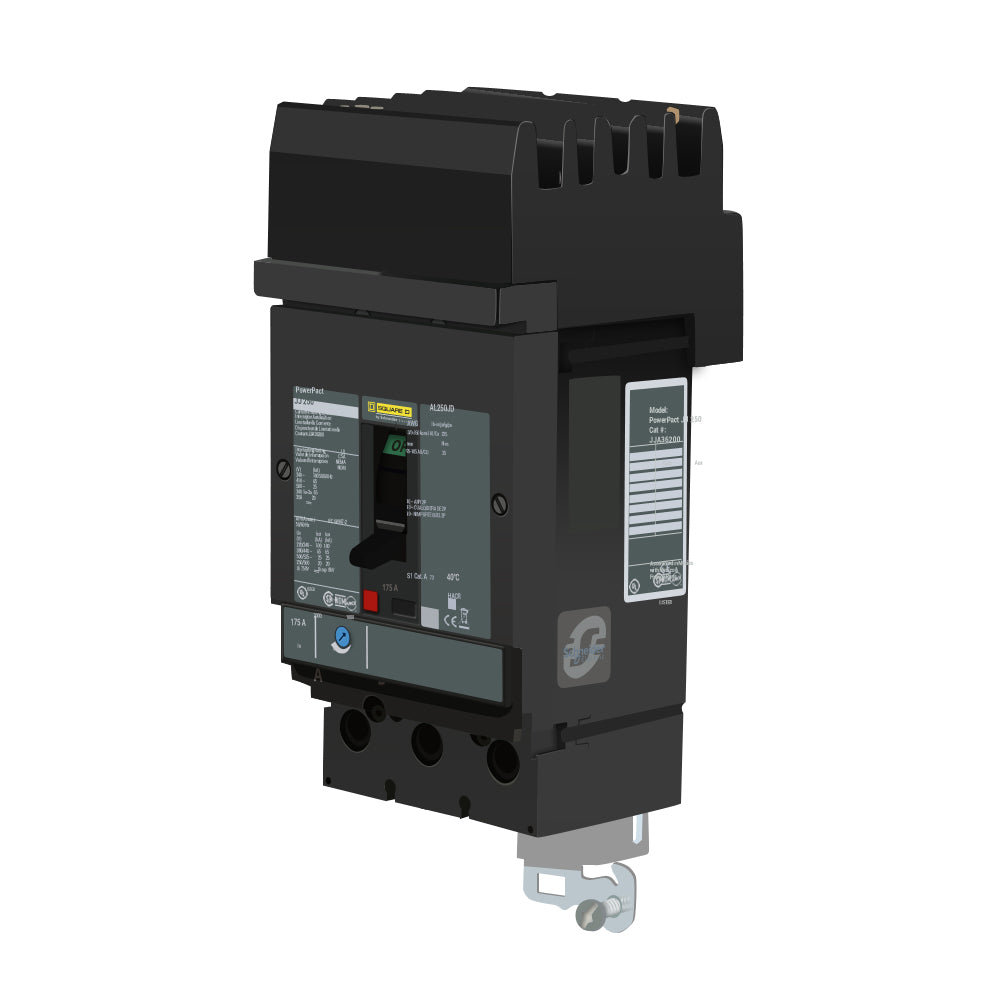

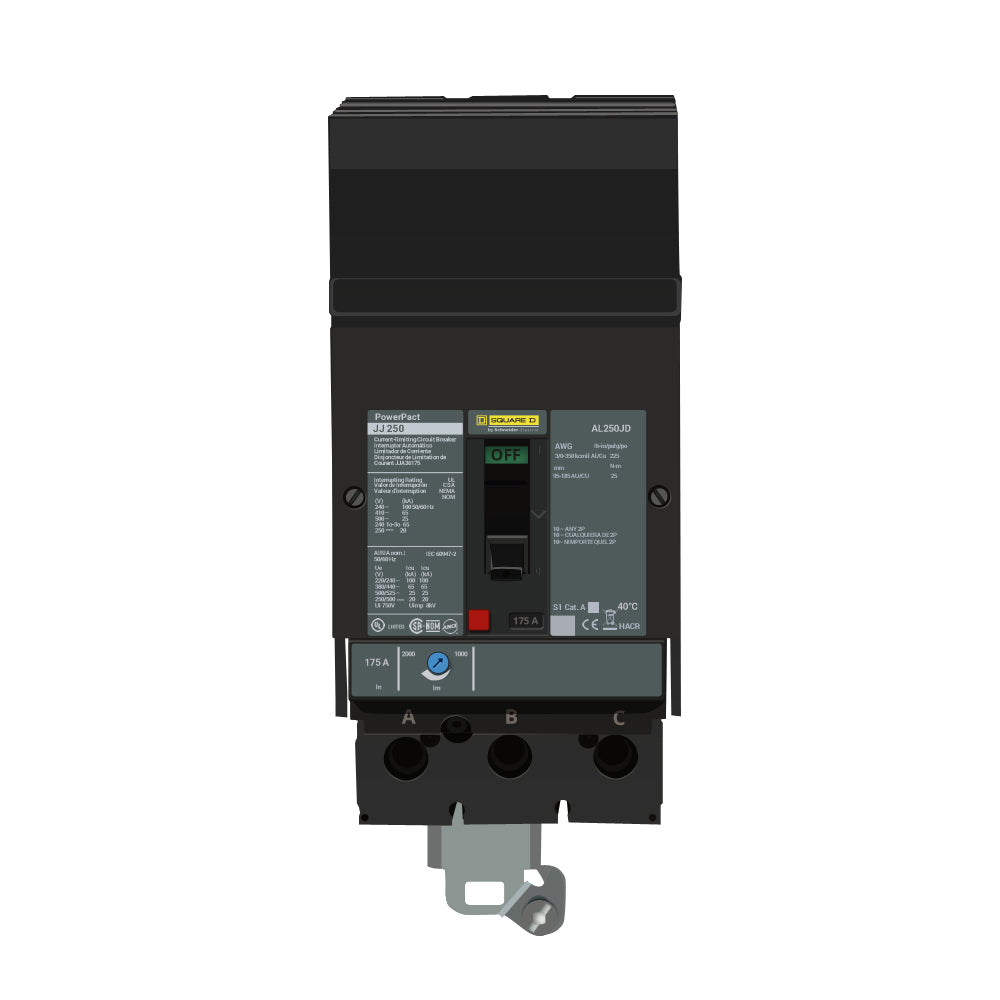

JDA36175 - Square D 175A 600V 3-Pole Powerpact JDA Molded Case Circuit Breaker I-Line Plug-In

JDA36175

JDA36175 is a Square D Powerpact JDA series molded case circuit breaker rated for 175 amps, 600 volts, and 3 poles with I-Line plug-in mounting.This thermal magnetic circuit breaker features long-time and instantaneous trip functions (LI), providing overload and short-circuit protection. It has an interrupting rating of 18kA at 480V AC and 14kA at 600V AC, suitable for ABC phase connection and reverse fed applications. The breaker uses a toggle control and supports wire gauges from AWG 4 to AWG 4/0 aluminum or copper. It is UL listed and meets CE, CSA, NEMA, NOM, IEC, RoHS, and REACh standards.

Key Specifications
• Amperage: 175A
• Voltage: 600VAC, 250VDC
• Poles: 3

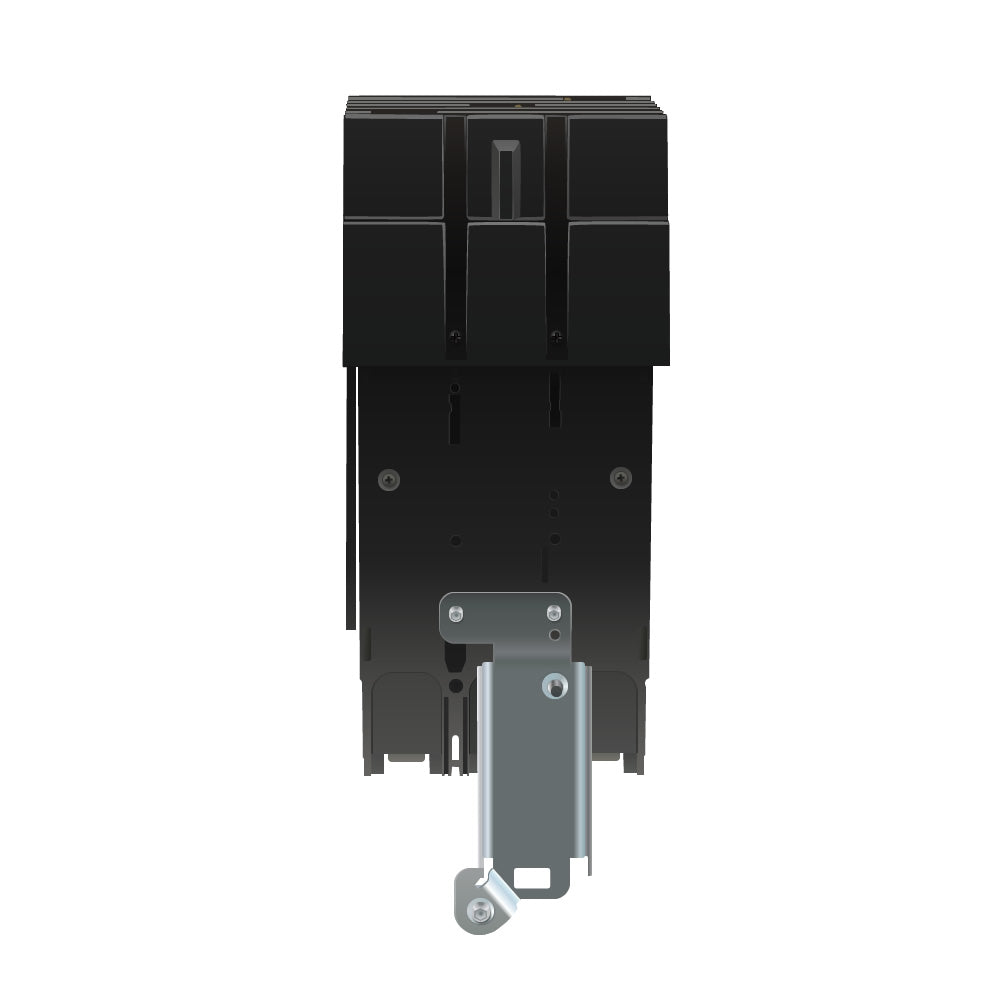

• Mounting Type: I-Line plug-in bracket
• Interrupt Rating: 18kA at 480VAC, 14kA at 600VAC, 25kA at 240VAC, 20kA at 250VDC
• Frame Type: JDA (Powerpact J Frame)
• Trip Unit: Thermal magnetic with LI (long-time and instantaneous)
• Connection Type: I-Line style plug-in with load side lugs
• Continuous Current Rating: 80%
• Wire Gauge Range: AWG 4 to AWG 4/0 aluminum/copper
• Certifications: UL, CE, CSA, NEMA, NOM, IEC, RoHS, REACh

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDA36175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDA
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : D
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901700678
• GTIN : 00785901700678
• Country of Origin : Mexico

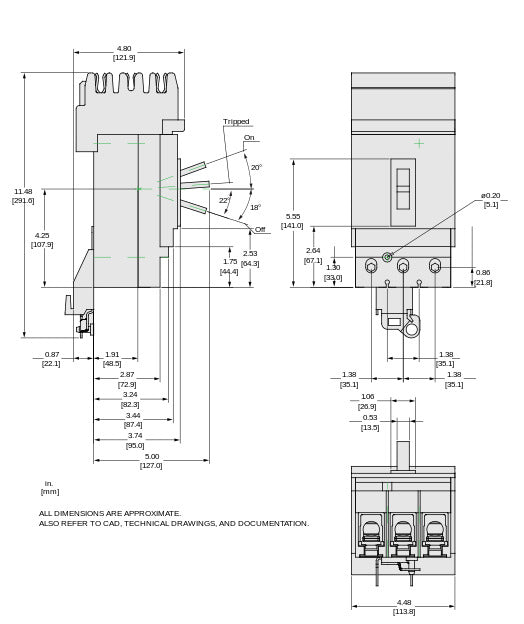

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.601
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
