JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified

Save $1,747.84
SKU: JDA36150-New
Condition: New
Price:
$1,119.16 $2,867.00
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

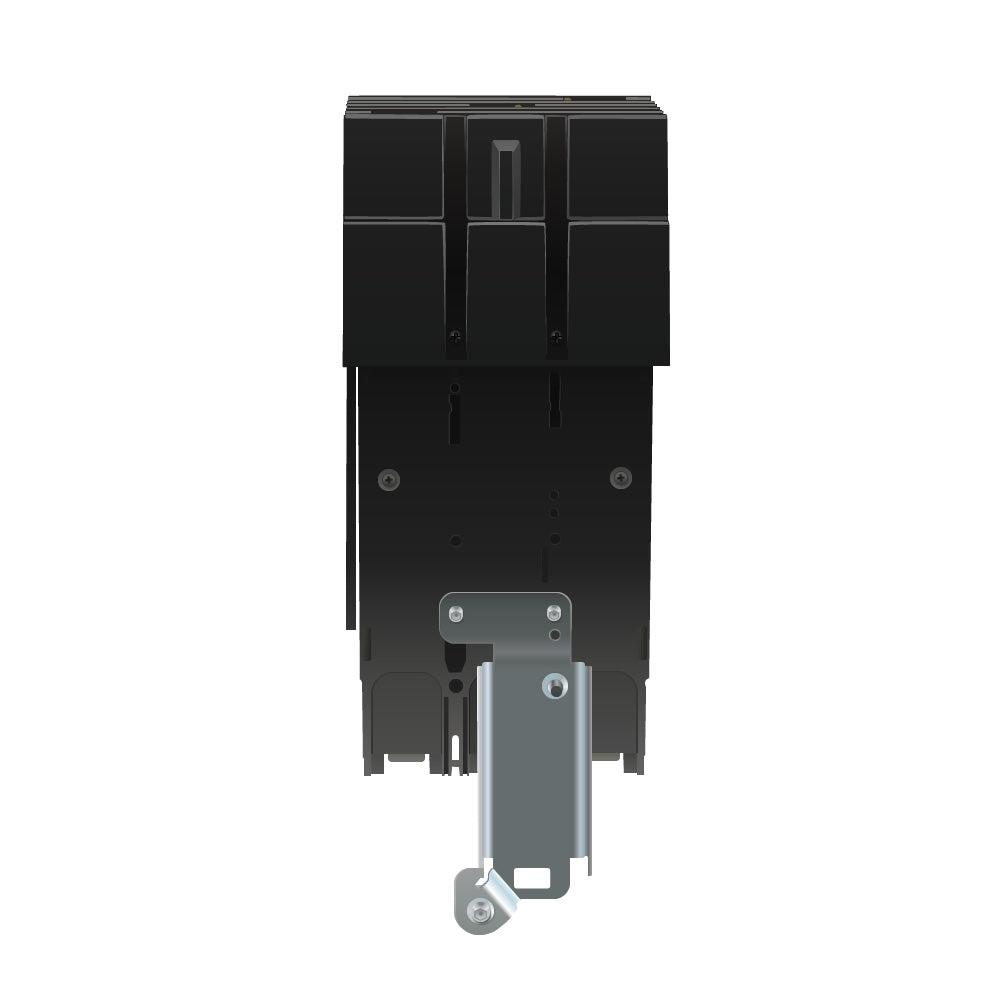

JDA36150 - Square D I-Line Style Plug-In 150 Amp 3 Pole Circuit Breaker - Essential Electric Supply

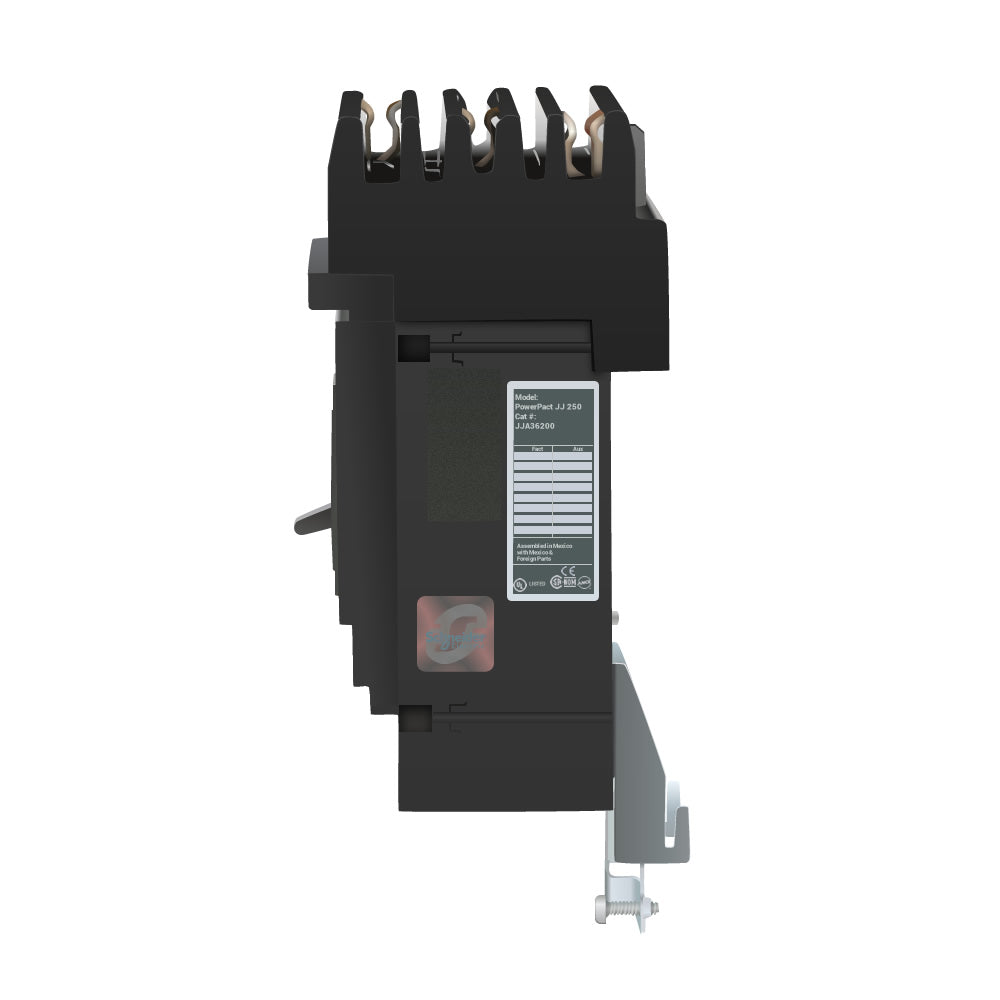

JDA36150 - Square D I-Line Style Plug-In 600V 150A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

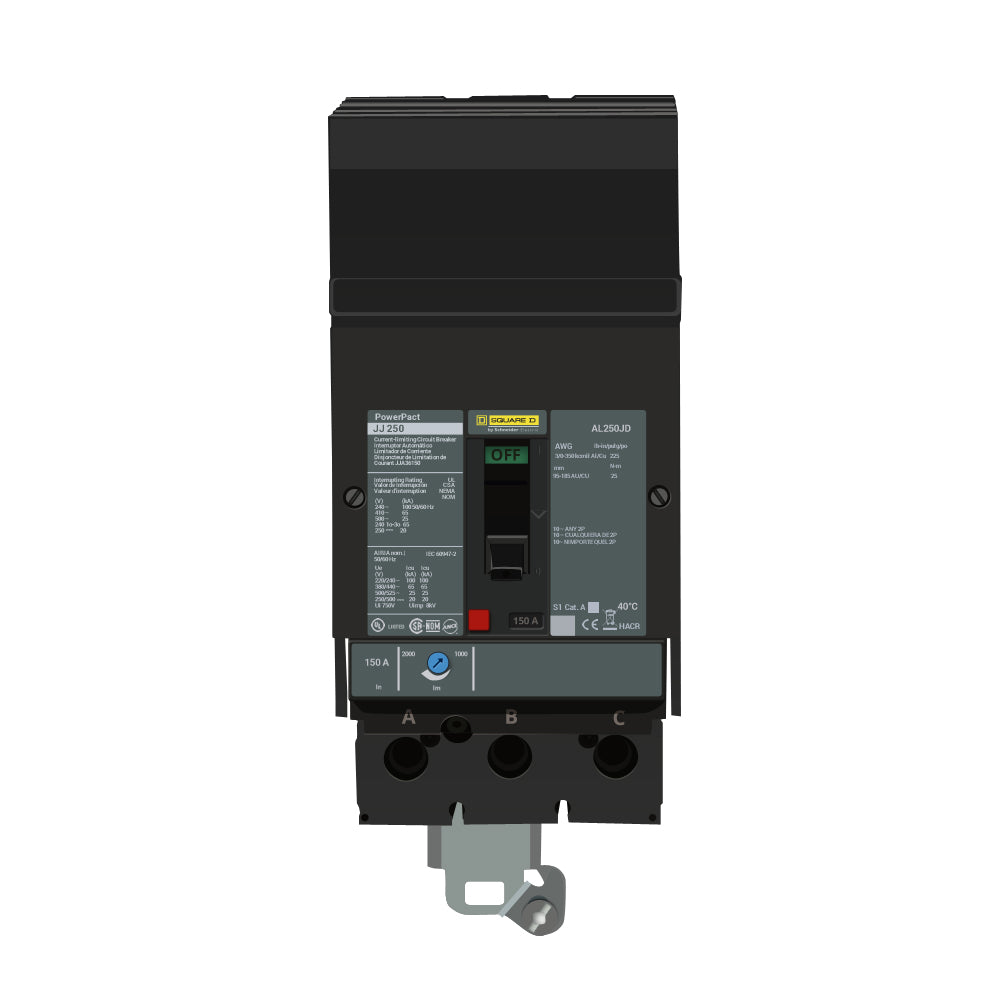

JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply
JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply

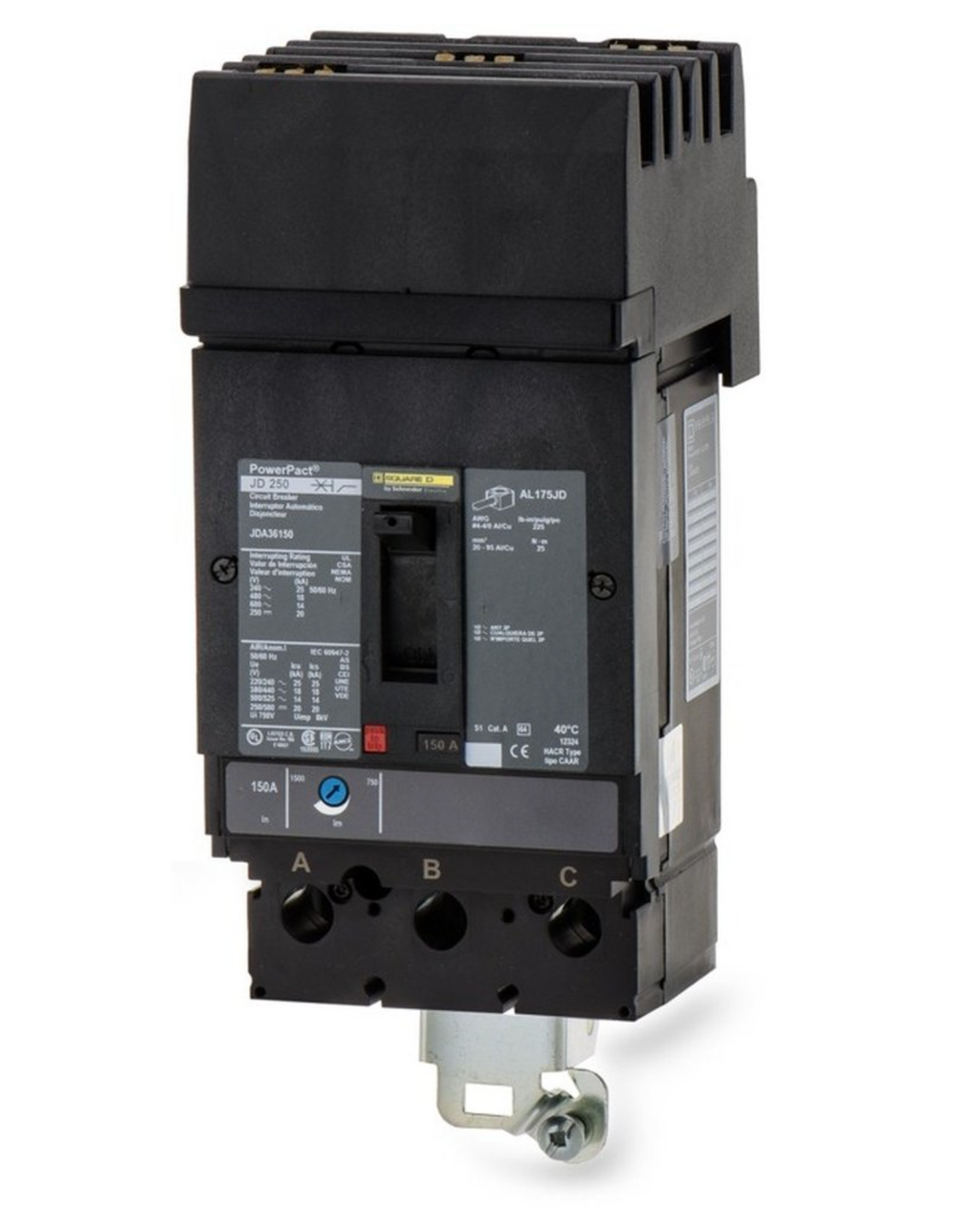

JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply

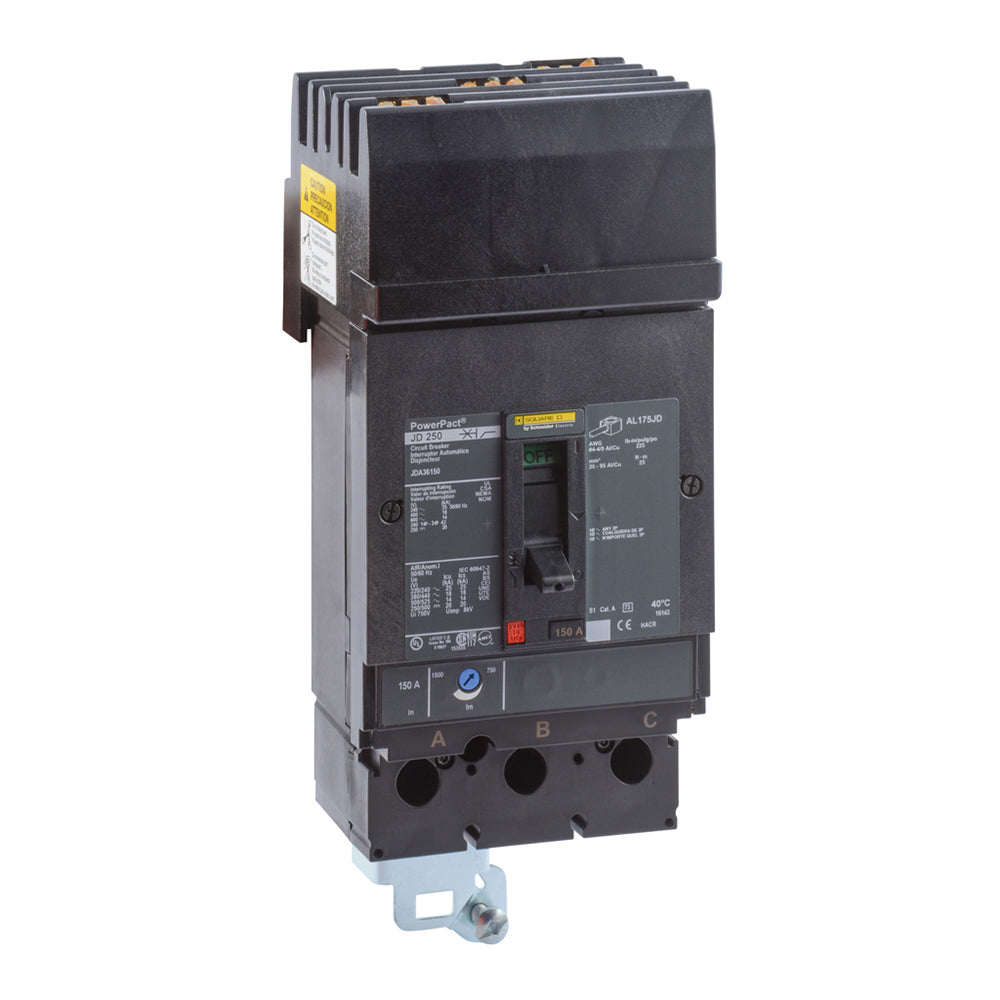

JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply

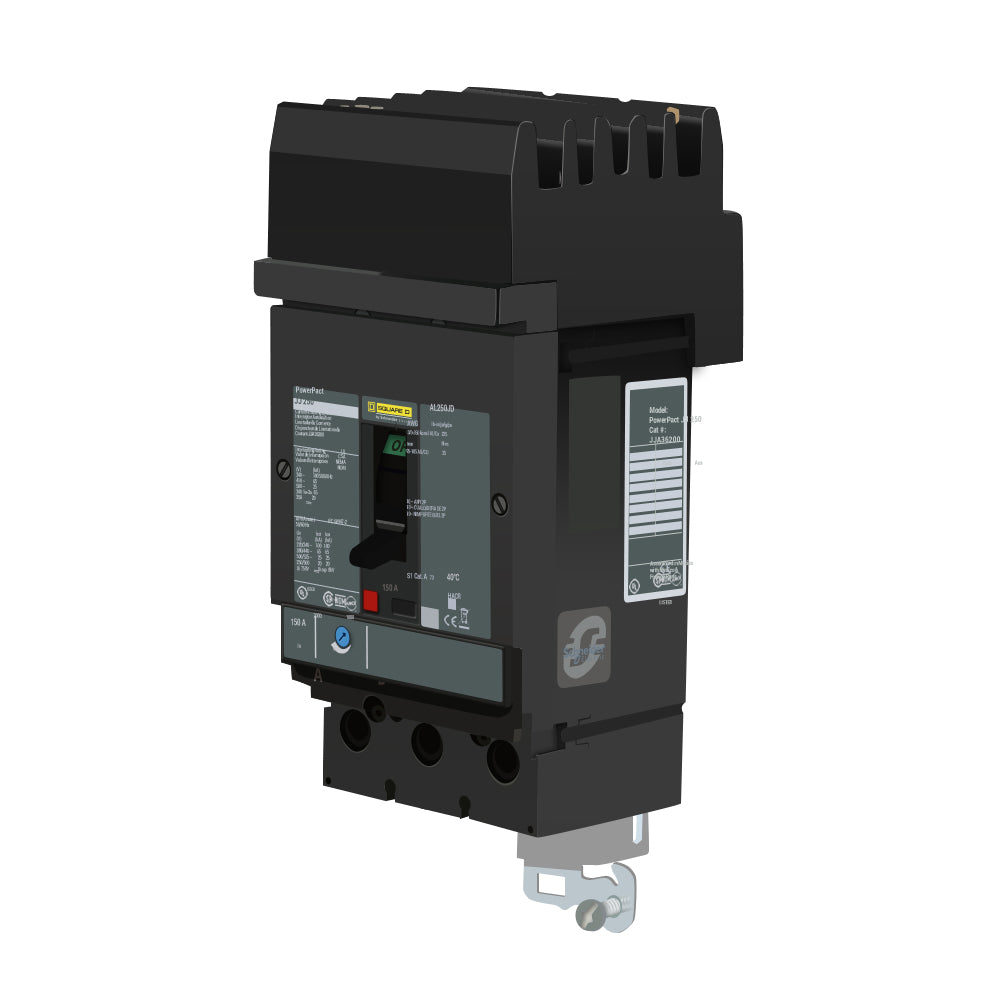

JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
JDA36150 - Square D I-Line Style Plug-In 150 Amp 3 Pole Circuit Breaker - Essential Electric Supply
JDA36150 - Square D I-Line Style Plug-In 600V 150A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply
JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply
JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply
JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply
JDA36150 - Square D PowerPact JDA 150A 3-Pole 600VAC 14kA I-Line Thermal Magnetic Molded Case Circuit Breaker, UL Listed, CSA Certified - Essential Electric Supply

Description

JDA36150


JDA36150 is a Square D PowerPact JDA series, 3-pole, 150A, 600VAC, thermal magnetic molded case circuit breaker designed for I-Line panelboard and switchboard applications.

This circuit breaker features a J-Frame design, I-Line plug-in mounting, and provides both overload and short-circuit protection with a 14kA interrupting rating at 600VAC. It is suitable for use in commercial and industrial power distribution systems and is approved for reverse feed applications. The trip unit is thermal-magnetic, offering long-time and instantaneous protection, and the breaker is rated for 80% continuous current. Terminals accept AWG 4 to 4/0 aluminum or copper conductors.

    Key Specifications
  • Part Number: JDA36150
  • Manufacturer: Square D
  • Series/Frame: PowerPact JDA, J-Frame
  • Amperage: 150A
  • Voltage: 600VAC, 250VDC
  • Poles: 3
  • Mounting Type: I-Line plug-in
  • Interrupt Rating: 14kA @ 600VAC, 18kA @ 480VAC, 25kA @ 240VAC
  • Trip Unit: Thermal-magnetic, LI (Long-time & Instantaneous)
  • Continuous Current Rating: 80%
  • Certifications: UL Listed, CSA Certified, IEC Rated
  • Terminal Range: AWG 4 to 4/0 (aluminum/copper)
  • Application: Class 611/612 I-Line panelboard and switchboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: JDA36150
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : JDA
  • Voltage : 600
  • Amperage : 150
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : D
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901558422
  • GTIN : 00785901558422
  • Country of Origin : Mexico

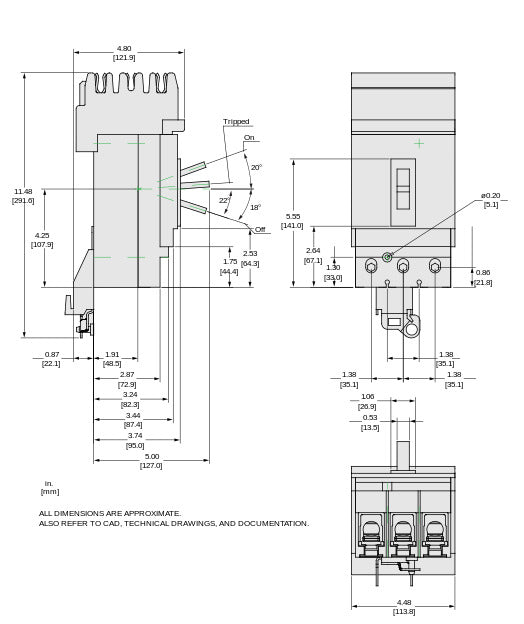

  • Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 6.66
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
