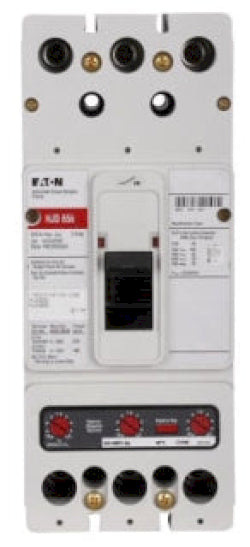

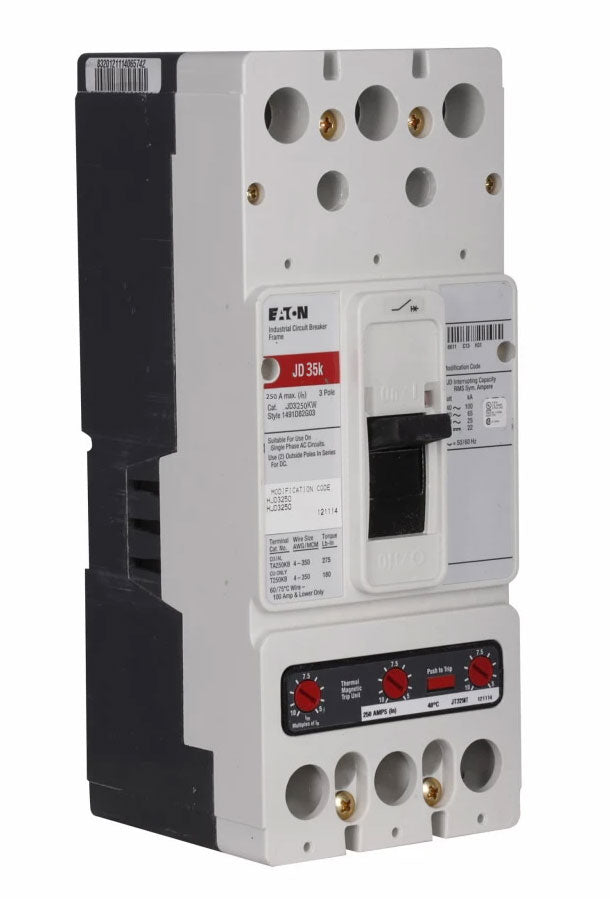

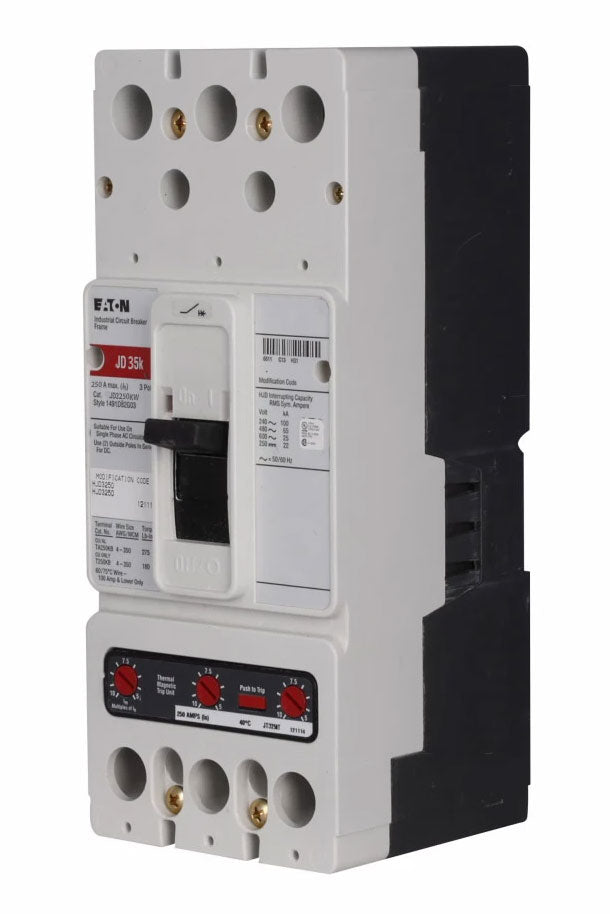

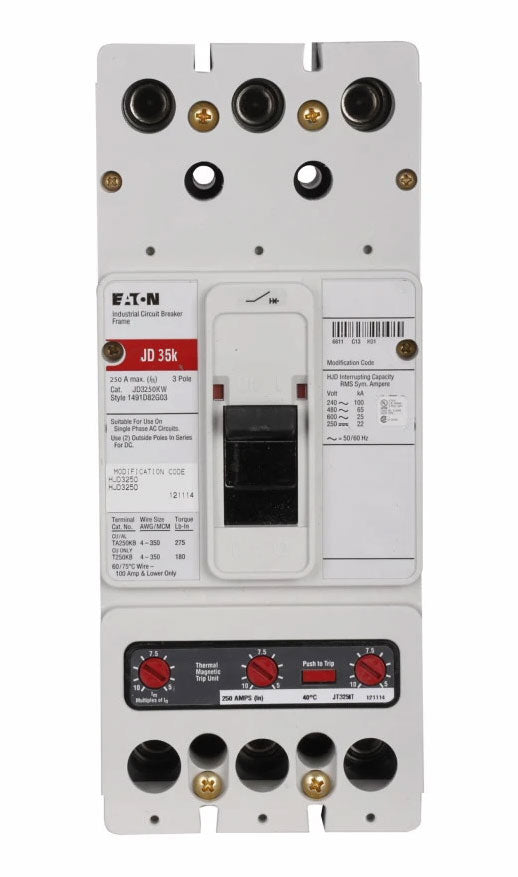

JD3250KW - Cutler Hammer 250A 600V 3-Pole Molded Case Circuit Breaker Series C

JD3250KW

JD3250KW is a Cutler Hammer Series C molded case circuit breaker with a 250 amp rating and 600 volt capacity designed for reliable power distribution protection.This 3-pole molded case switch features a high magnetic trip unit (T186) and is rated for 250 amps at 600 VAC and 250 VDC. It belongs to the JD frame type and offers bolt-on mounting without terminal lugs. The breaker has an interrupt rating of 35kA at 480 VAC and 65kA at 240 VAC, suitable for industrial and commercial applications requiring robust circuit protection.

Key Specifications
• Amperage Rating: 250 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Frame Type: Molded Case Switch (JD Frame)
• Trip Unit: High Magnetic (T186)
• Interrupt Rating: 35kA @ 480 VAC, 65kA @ 240 VAC
• Mounting Type: Bolt-On
• Terminal Type: Without Terminal Lugs
• Series: Eaton Series C
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JD3250KW
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : NA - No Overcurrent Protection
• Frame Size : J Frame
• Protection : Non-Automatic

Product Data

• UPC : 786679516454
• GTIN : 00786679516454
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 9.55
• Certification : UL Listed
