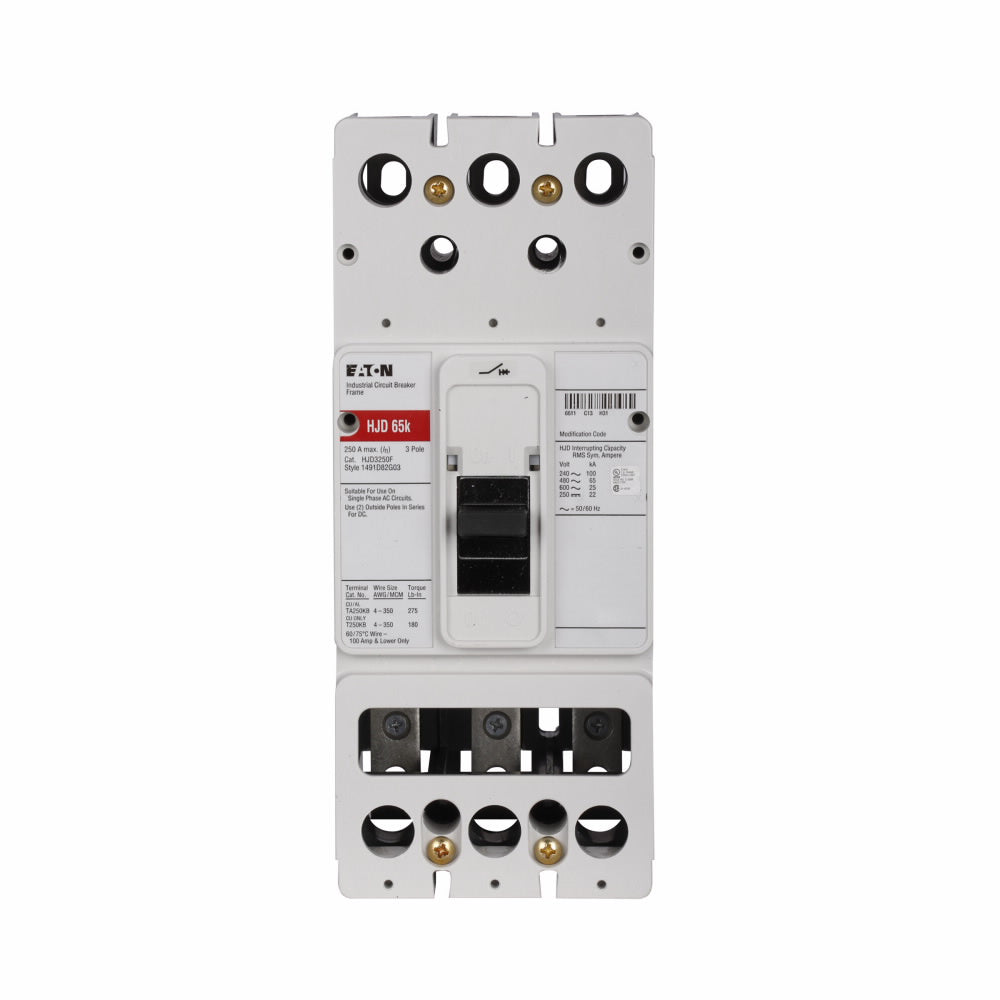

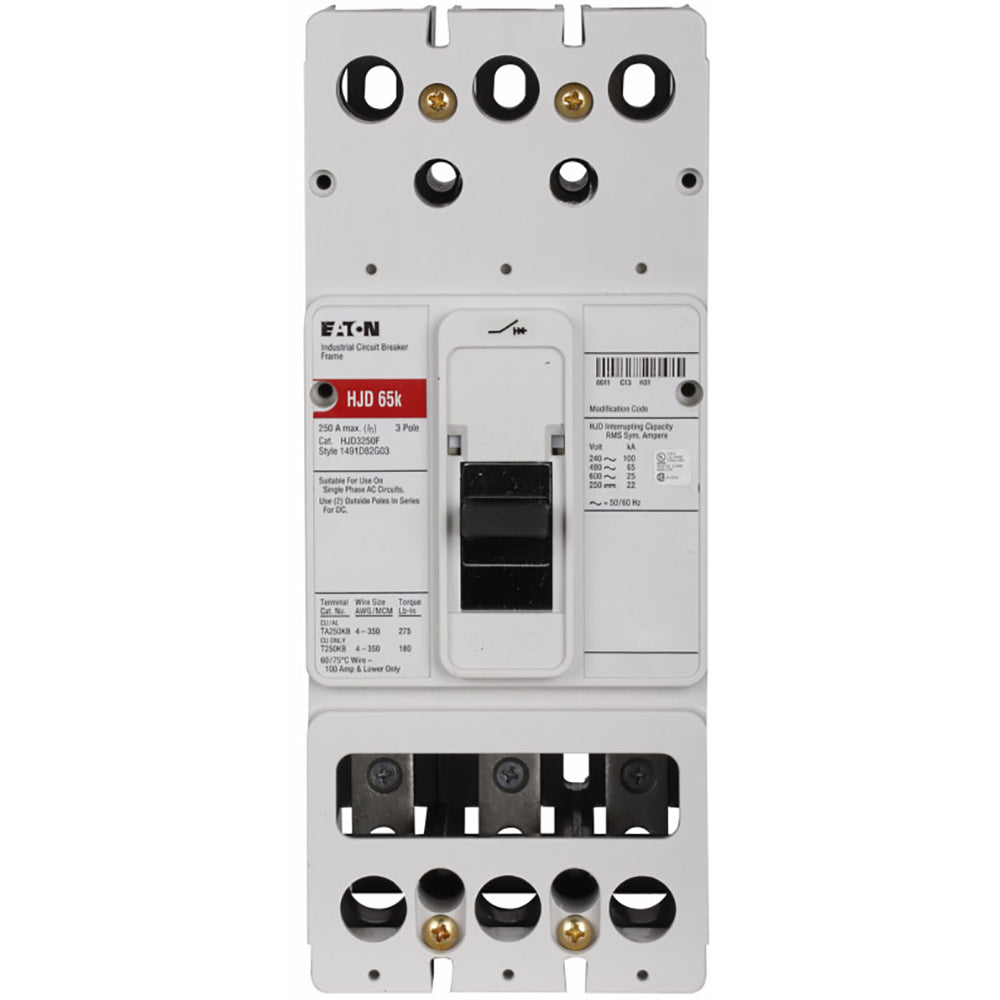

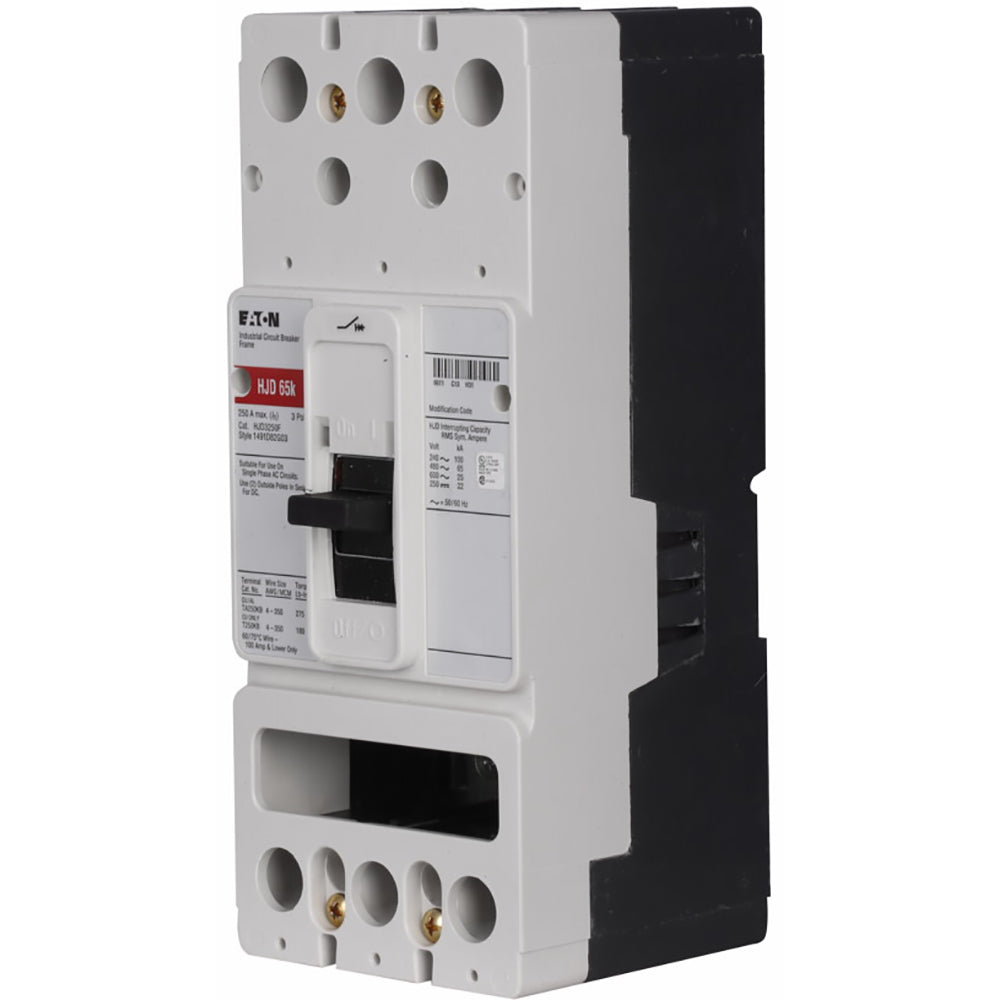

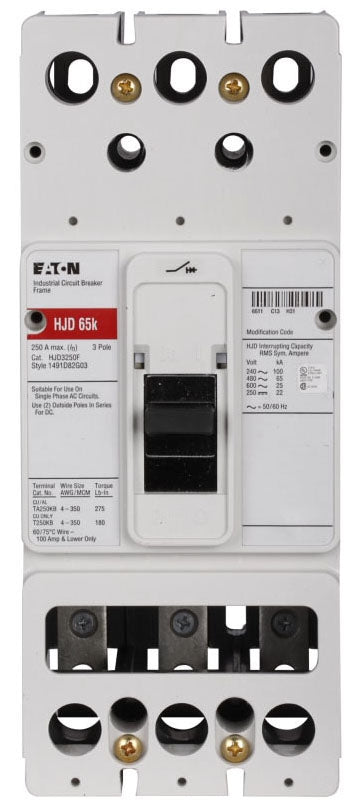

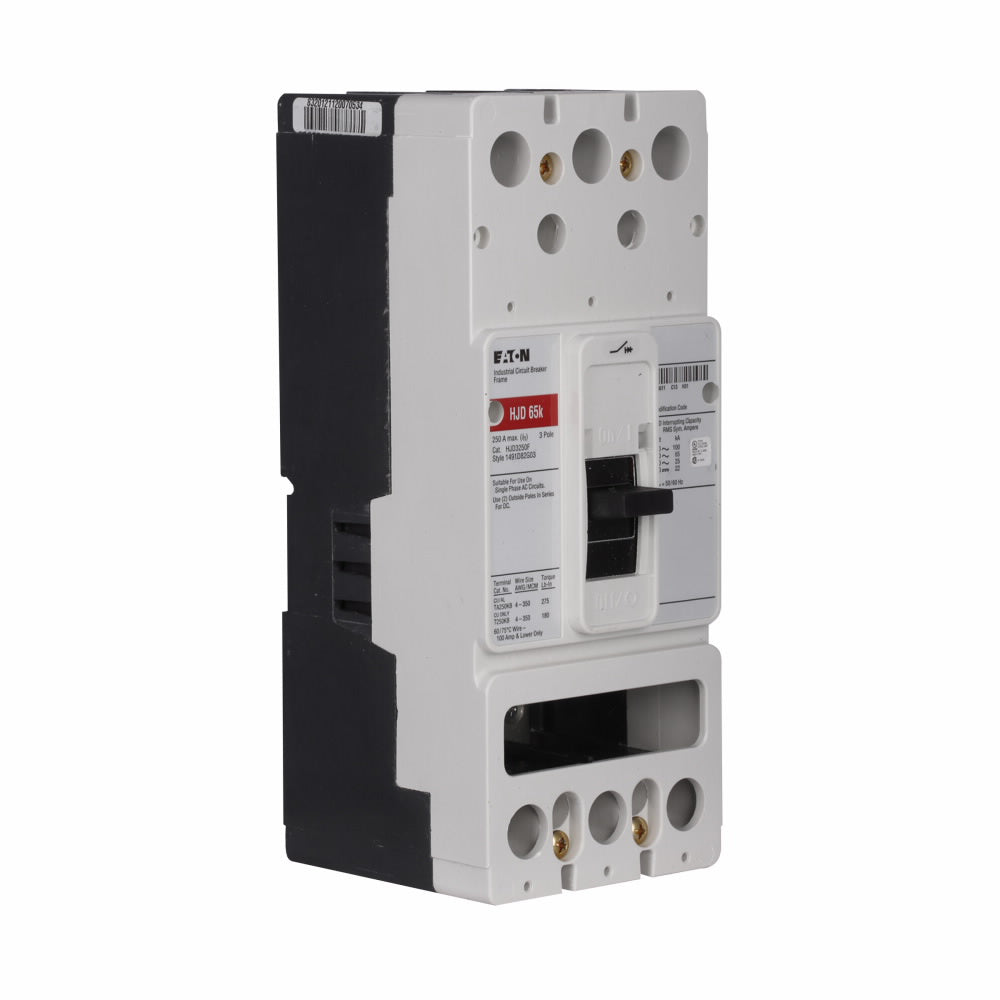

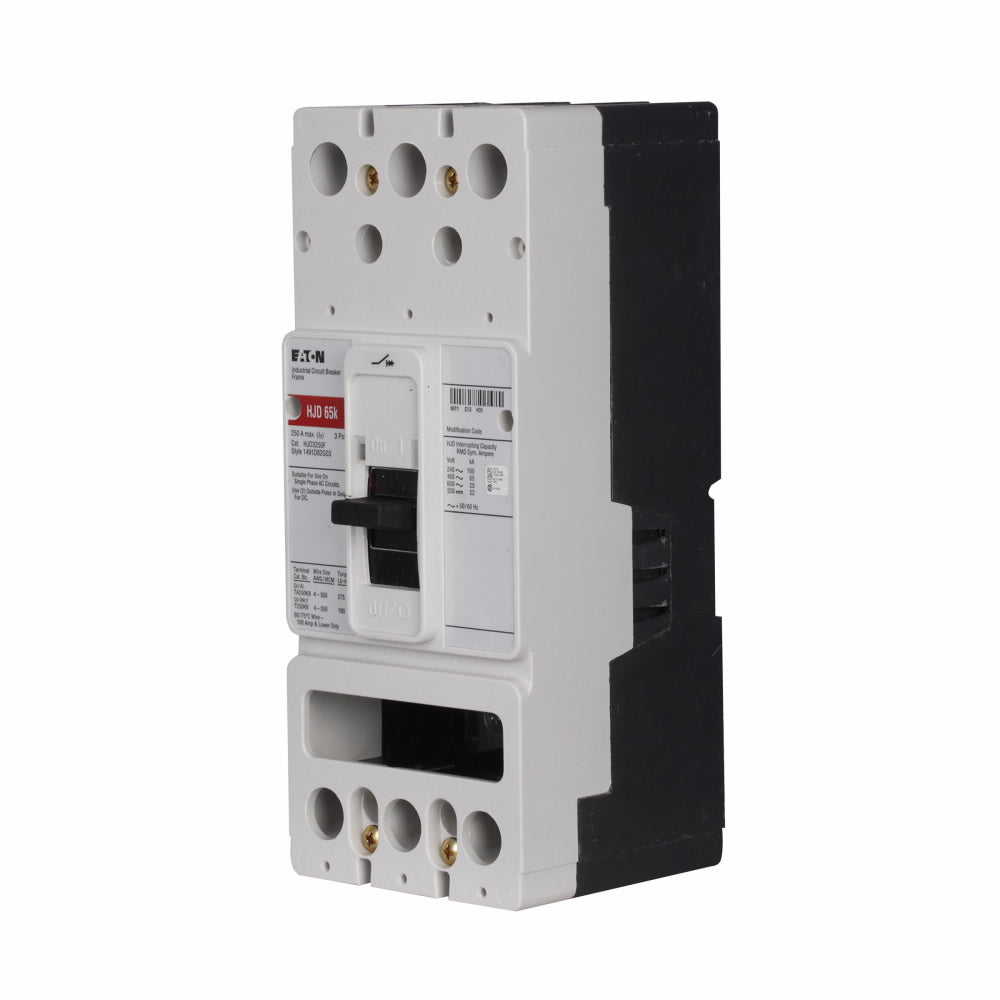

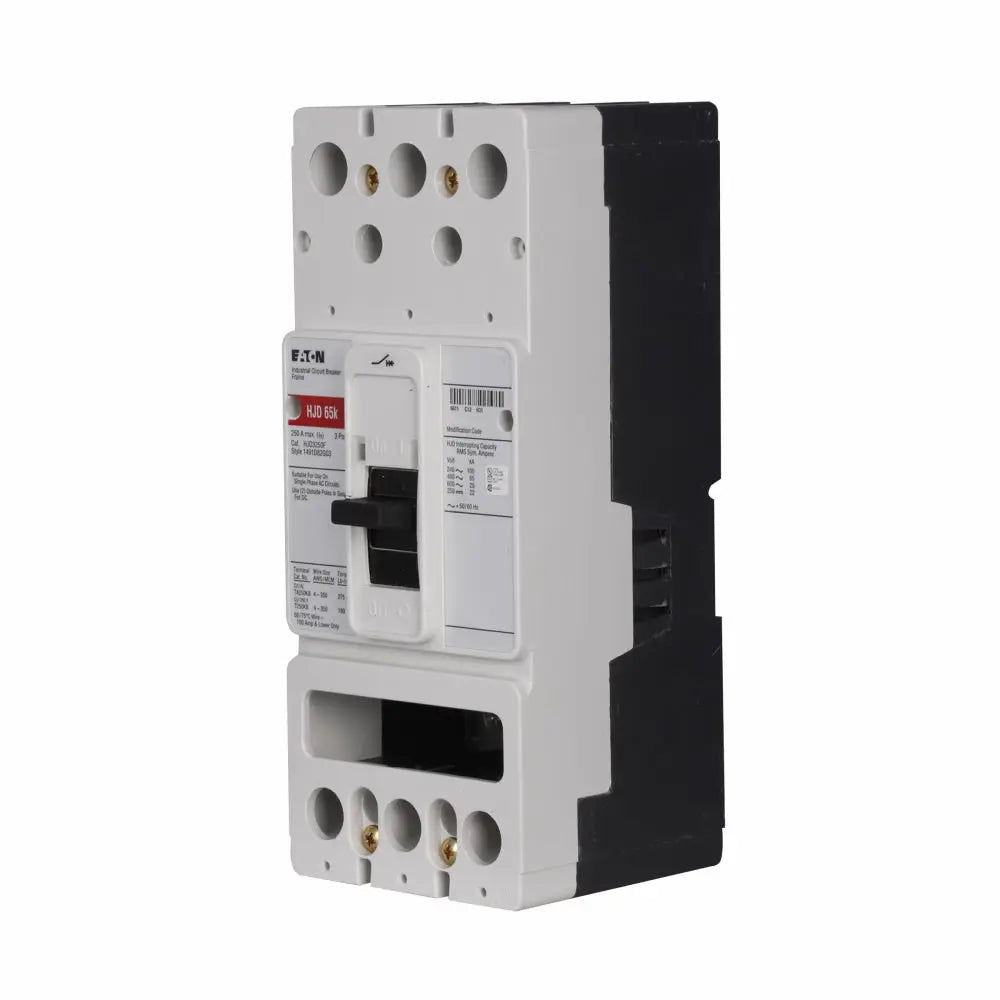

JD3250F - Eaton 250A 600VAC 3-Pole J-Frame Molded Case Circuit Breaker Frame

JD3250F

JD3250F is an Eaton 250 amp, 3-pole, J-frame molded case circuit breaker frame designed for reliable power distribution protection.JD3250F features a non-interchangeable thermal magnetic trip unit, suitable for 600 VAC and 250 VDC applications, with a high interrupt rating of 65 kA at 240 VAC and 35 kA at 480 VAC. It is a Series C frame breaker with bolt-on mounting, measuring 4.06 x 4.13 x 4.13 inches and weighing 9.55 lbs.

Key Specifications
• Amperage: 250 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame/Series: J-frame, Series C
• Trip Unit: Non-interchangeable thermal magnetic
• Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Dimensions: 4.06 x 4.13 x 4.13 inches
• Weight: 9.55 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Frame only, Trip unit and lugs not included.




Specifications

• Part Number: JD3250F
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 786679516379
• GTIN : 00786679516379
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 9.55
• Certification : UL Listed
