Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HPXD63B160H

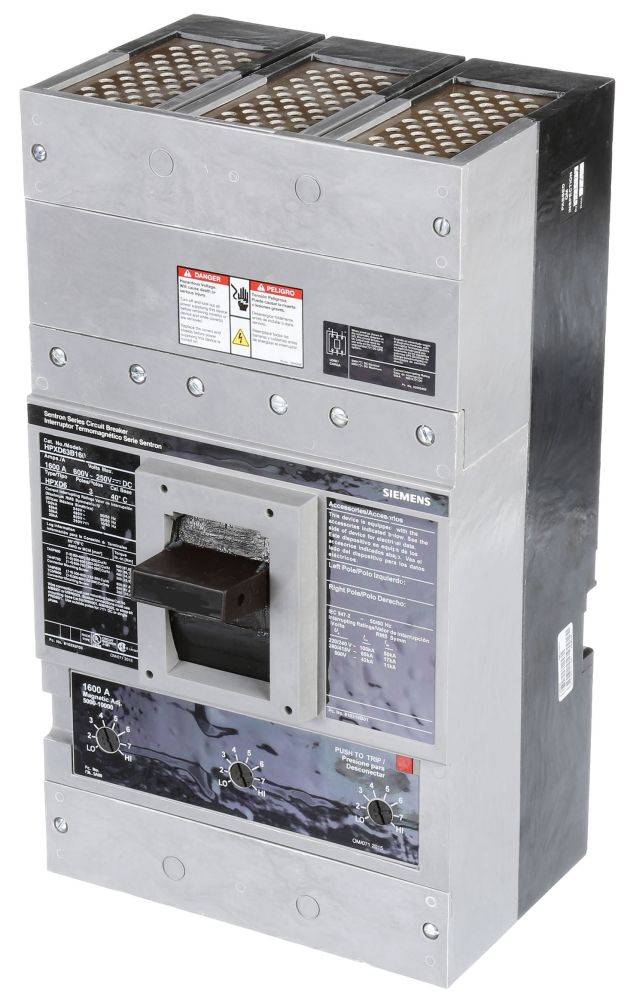

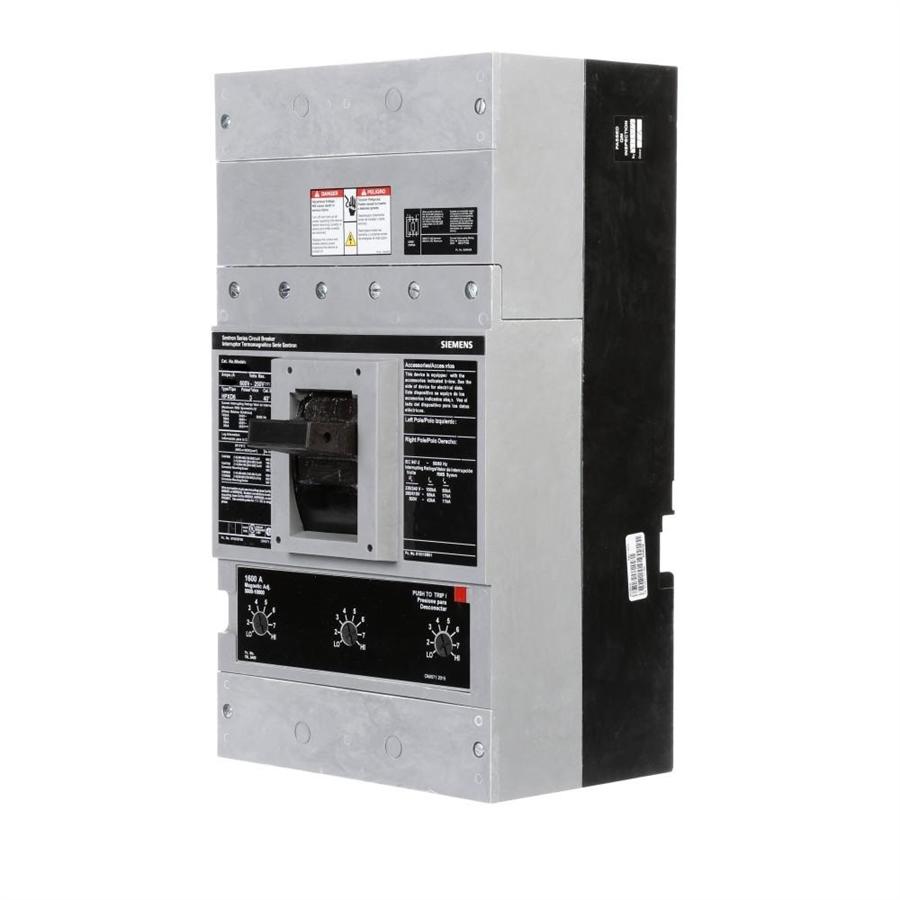

HPXD63B160H is a Siemens 1600 amp, 600 volt, 3 pole molded case circuit breaker designed for high interrupting capacity applications.HPXD63B160H features a thermal magnetic trip unit, PD6 frame, and bolt-on mounting type. It supports 3-phase power with an interrupt rating up to 65kA at 480V AC and 200kA at lower voltages. This breaker is UL listed and suitable for industrial and commercial electrical distribution systems.
- Key Specifications
- Amperage: 1600A
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupt Rating: 65kA at 480V, 200kA at 240V
- Frame/Series: PD6
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- UL Listed for reverse feed
- Dimensions: Approx. 8.25" W x 4.06" D x 16" H
- Terminal Type: Aluminum/Copper standard pressure terminals
- Part Number: HPXD63B160H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HPXD
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : PD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783643320390
- GTIN : 00783643320390
- Country of Origin : Mexico
- Weight : 54.101
