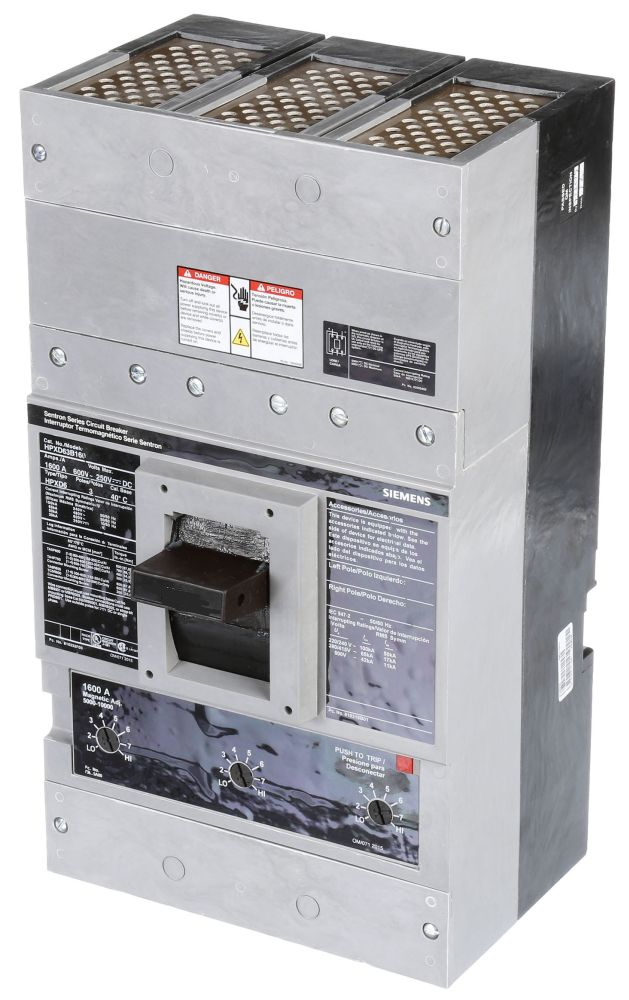

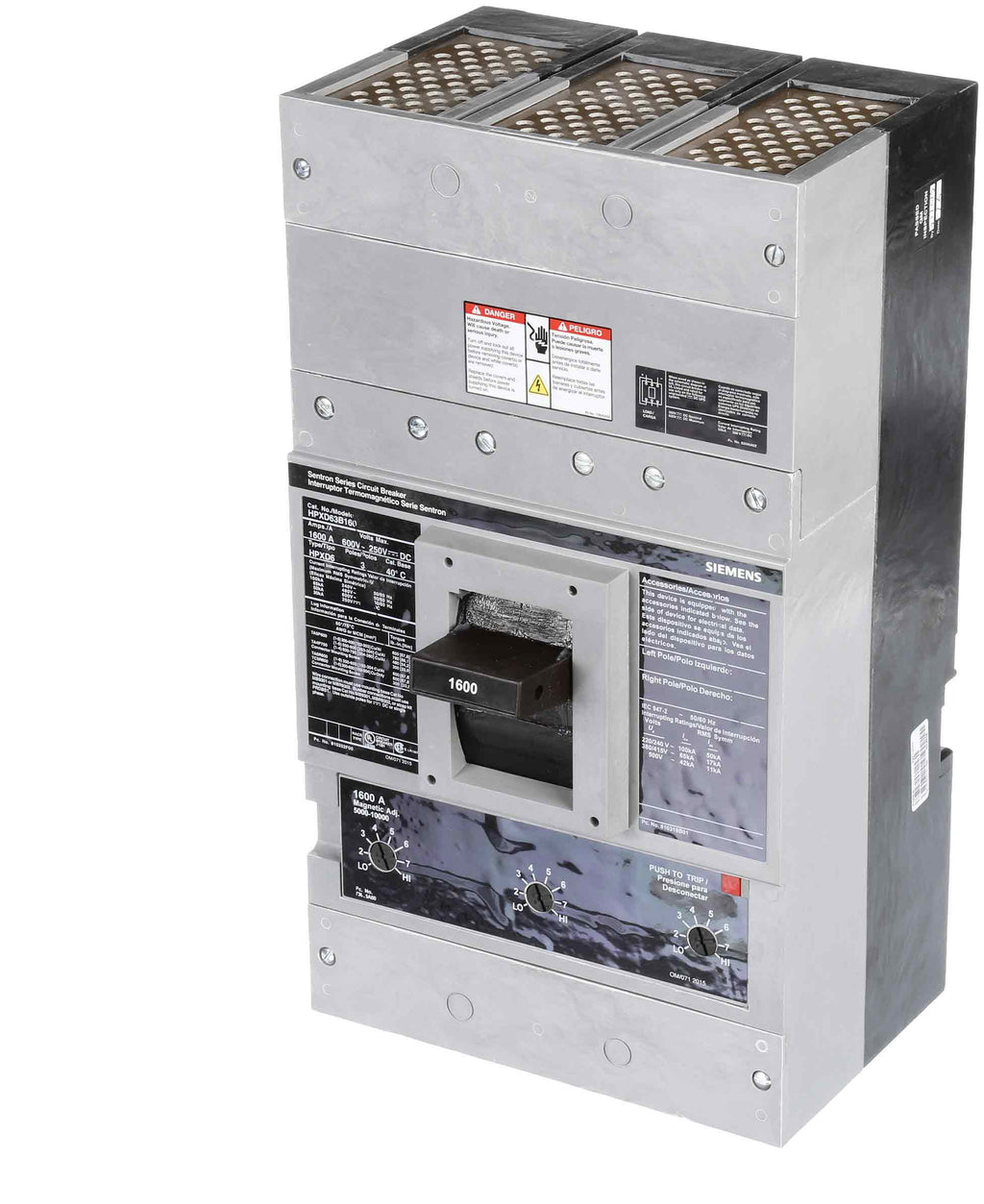

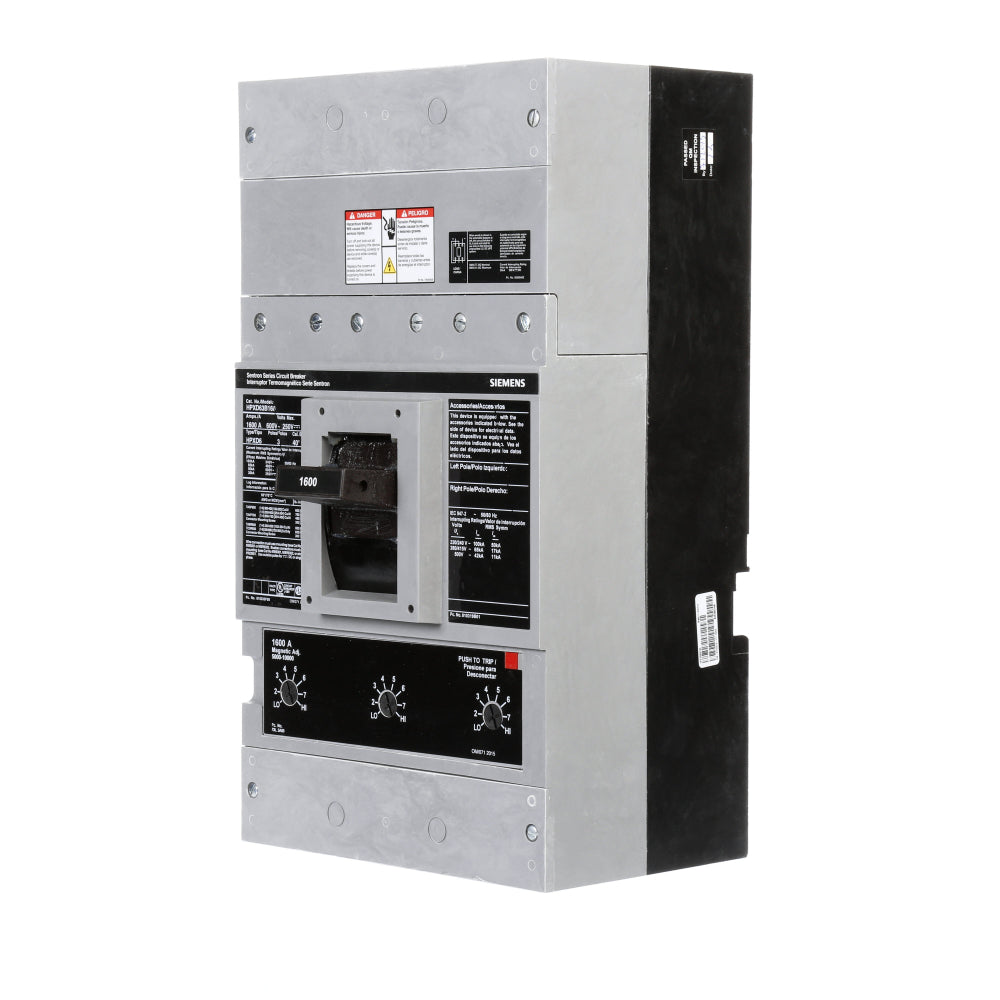

HPXD63B160 - Siemens Sentron 1600A 600VAC 3-Pole Molded Case Circuit Breaker 50kA

HPXD63B160

HPXD63B160 is a Siemens Sentron Type PD molded case circuit breaker designed for low voltage power distribution applications requiring high breaking capacity and reliable thermal-magnetic protection.Technical Overview

The HPXD63B160 is a 3-pole, 1600-ampere rated circuit breaker rated for 600 VAC at 50/60 Hz and 500 VDC operation. This unit features a 50 kA interrupt rating at 600V and 65 kA at 480V, delivering high interrupting capacity for demanding industrial and commercial installations. The breaker employs thermal-magnetic trip technology with non-interchangeable trip units and operates as a standard 40-degree Celsius breaker. Bolt-on connection type and fuseless current-limiting design provide flexible installation options and enhanced system protection.

Key Specifications

• Part Number: HPXD63B160
• Manufacturer: Siemens
• Amperage Rating: 1600 A
• Voltage Rating: 600 VAC, 500 VDC
• Poles: 3
• Interrupt Rating: 50 kA at 600V, 65 kA at 480V
• Frame Type: PD
• Trip Unit: Thermal-Magnetic, Non-Interchangeable
• Connection: Bolt-On
• Certifications: UL 489, IEC 60947-2
• Dimensions: 9 in W x 16 in H x 6.19 in D
• Weight: 56 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HPXD63B160
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HPXD
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : PD Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643247741
• GTIN : 00783643247741
• Country of Origin : Mexico
• Weight : 58.389
