Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HPXD63B120

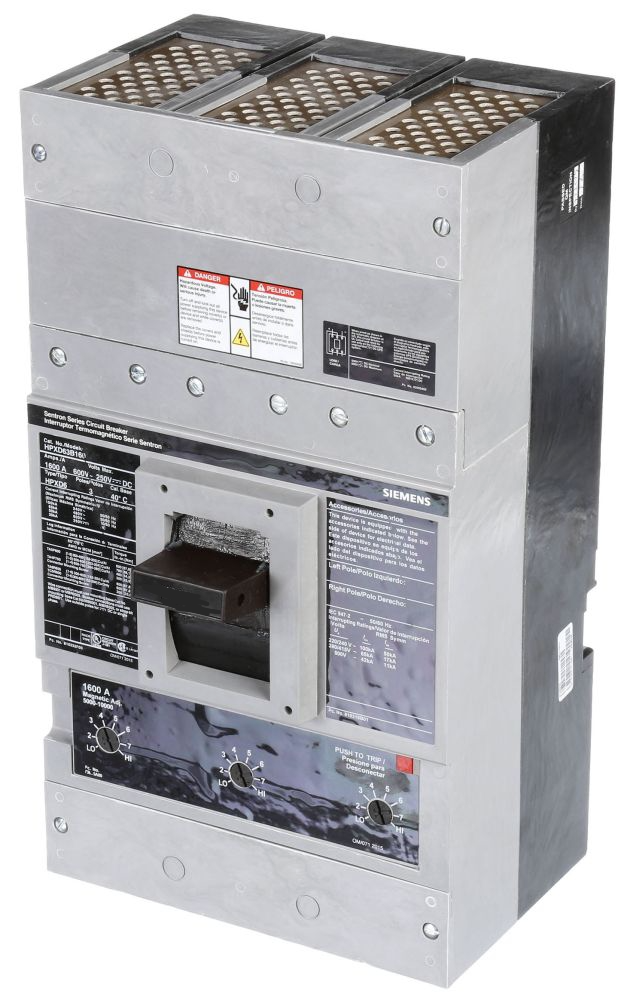

HPXD63B120 is a 3-pole, 1200 ampere rated molded case circuit breaker manufactured by Siemens for industrial power distribution applications. This high breaking capacity breaker is rated for 600 VAC at 50/60 Hz and 250 to 500 VDC, featuring thermal/magnetic trip protection with an interchangeable trip unit design. The PD frame construction provides standard 40 degree C operation and meets UL 489 and IEC 60947-2 standards for reliable circuit protection in demanding environments.
- Amperage Rating: 1200A
- Voltage: 600 VAC at 50/60 Hz, 250-500 VDC
- Poles: 3
- Frame: PD Frame
- Trip Type: Thermal/Magnetic with Interchangeable Trip Unit
- Interrupt Rating: 50 kAIC at 600V, 65 kAIC at 480V
- Mounting: Bolt-On
- Certifications: UL 489, IEC 60947-2
- Temperature Rating: 40 Degrees C
- Breaking Capacity: High Breaking Capacity (HPXD)
Specifications
- Part Number: HPXD63B120
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HPXD
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : PD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643247727
- GTIN : 00783643247727
- Country of Origin : Mexico
- Weight : 54
