HOMT220250 - Square D Quad Tandem Circuit Breaker, Homeline, 1 x 2P 20A, 1 x 2P 50A, 120/240VAC, 10kAIC, Plug-In, Thermal Magnetic Trip

HOMT220250

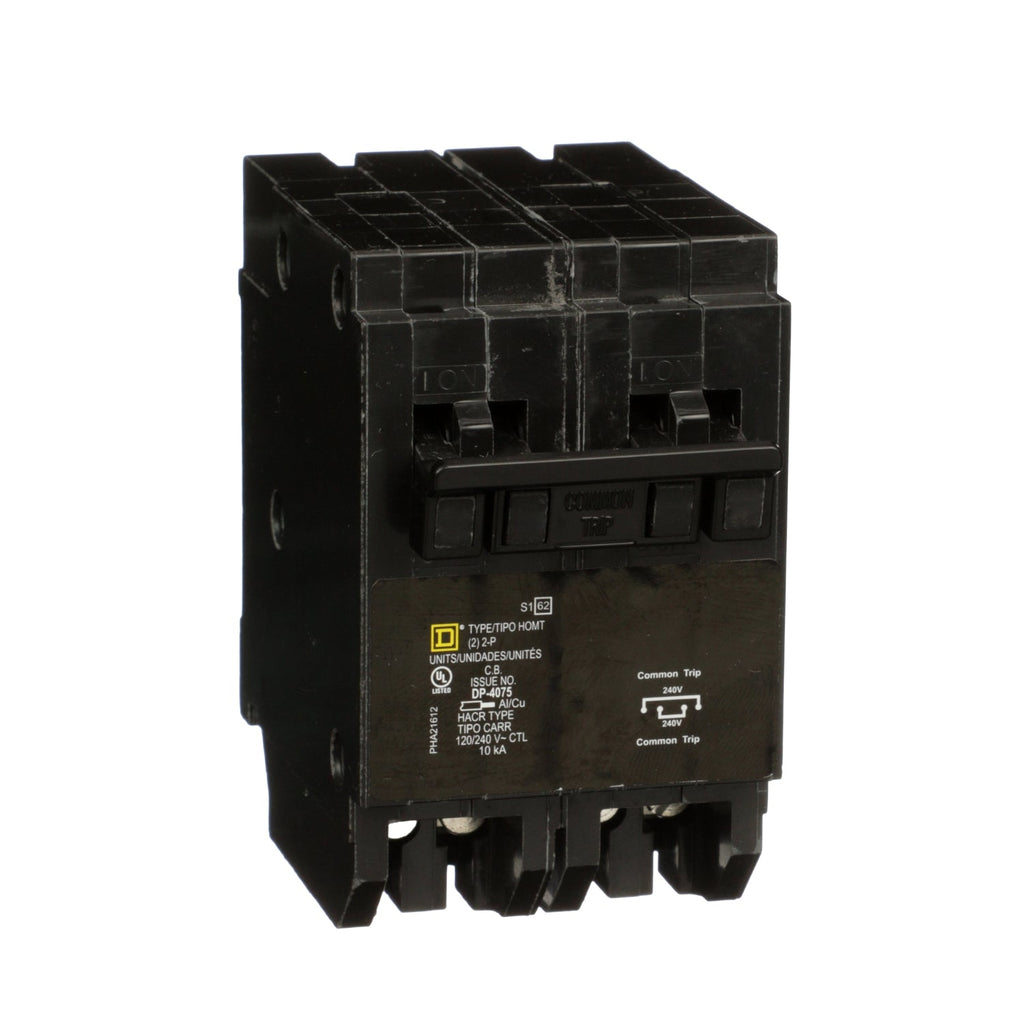

HOMT220250 is a Square D Homeline quad tandem circuit breaker designed for efficient, space-saving protection in residential and light commercial panels.

This thermal magnetic molded case circuit breaker combines two 2-pole breakers in a compact plug-in design, offering both 20A and 50A protection at 120/240VAC with a 10kA interrupting rating. It features long-time and instantaneous trip functions, box lug connections, and is UL Listed and HACR rated for reliable performance.

Key Specifications

• Part Number: HOMT220250
• Manufacturer: Square D
• Series/Frame: Homeline (HOM)
• Amperage: 20A (1 x 2P), 50A (1 x 2P)
• Voltage: 120/240VAC
• Poles: 4 (2 x 2P)
• Mounting Type: Plug-In
• Interrupt Rating: 10kAIC at 240V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Certifications: UL Listed, HACR Rated
• Connection: Box Lugs
• Wire Size: AWG 14–8 (Aluminum/Copper)
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT220250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901970156
• GTIN : 00785901970156
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.29 in (83.57 mm) (Height x Width x Depth)
• Weight : 1
• Wire Size : 1x AWG 14 to AWG 8, 1x AWG 14 to AWG 6, Aluminum/Copper
