HOMT220240 - Schneider Electric Homeline Quad Tandem Mini Circuit Breaker 20/40A 120/240VAC 2 Pole Plug-In Mount 10kA AIR

HOMT220240

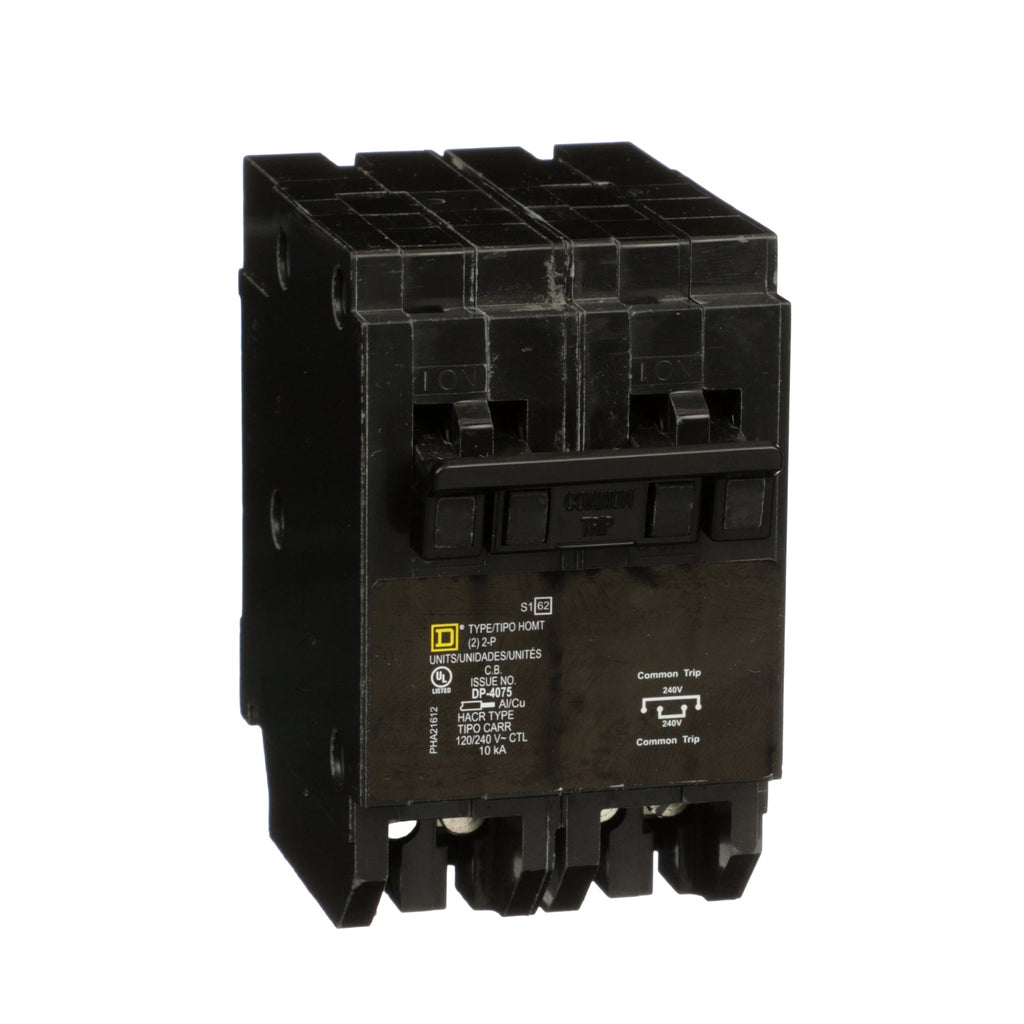

HOMT220240 is a Schneider Electric Homeline quad tandem mini circuit breaker designed for reliable circuit protection in residential and light commercial applications.This Homeline breaker features one 2-pole 20A and one 2-pole 40A thermal magnetic breaker combined in a quad tandem configuration. It operates at 120/240 VAC with a 10 kA interrupting rating and mounts via plug-in for easy installation. The breaker is HACR rated and UL listed, compatible with Homeline load centers, and accepts copper or aluminum wiring from 14 AWG to 8 AWG (20A) and 14 AWG to 6 AWG (40A).

Key Specifications
• Amperage: 20A and 40A (two 2-pole breakers)
• Voltage: 120/240 VAC
• Poles: 2 poles each breaker (quad tandem configuration)
• Mounting Type: Plug-in mount
• Interrupt Rating: 10 kA AIR
• Series/Frame: Homeline
• Trip Unit: Thermal magnetic
• Certifications: UL Listed, HACR rated
• Wire Range: 14-8 AWG copper/aluminum (20A), 14-6 AWG copper/aluminum (40A)
• Dimensions: 3.13" H x 2.00" W x 2.98" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HOMT220240
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 785901969761
• GTIN : 00785901969761
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.29 in (83.57 mm) (Height x Width x Depth)
• Weight : 1
