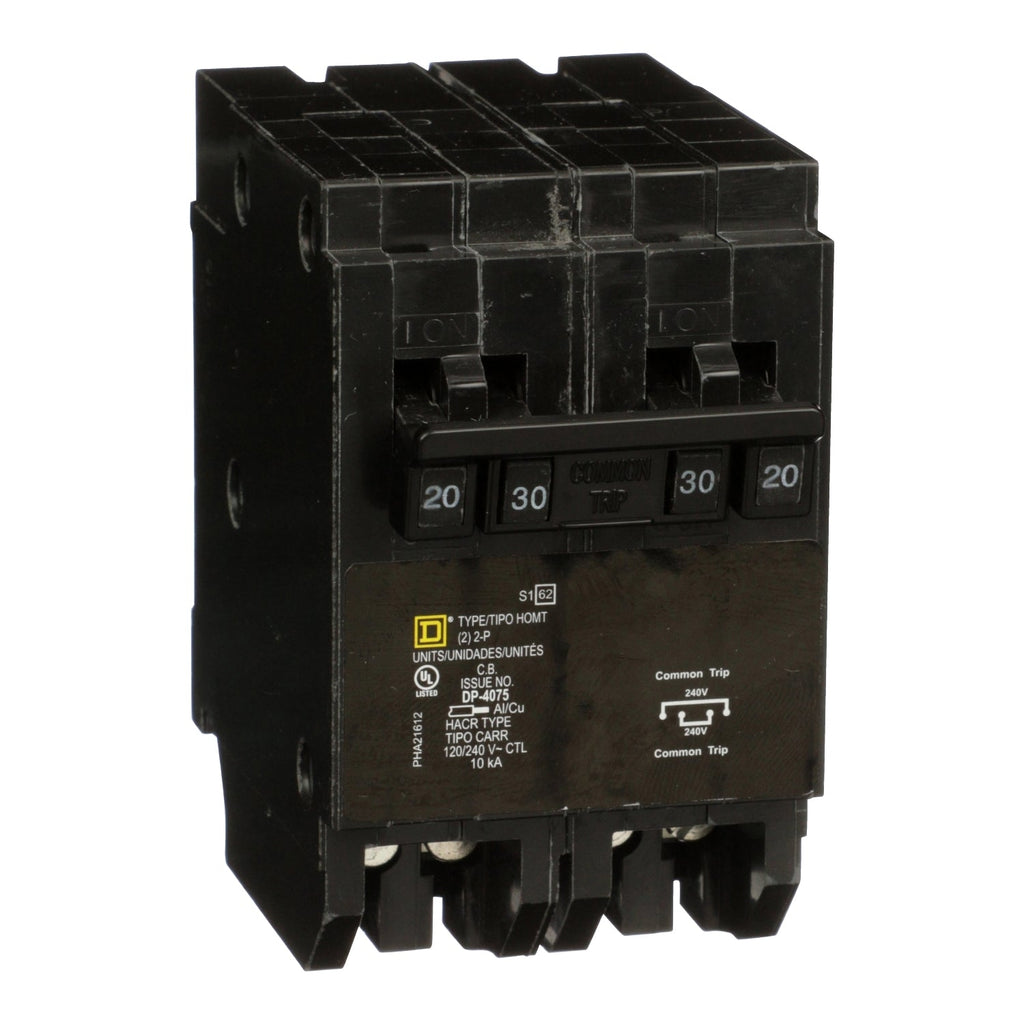

HOMT220230 - Schneider Electric Homeline Quad Tandem Mini Circuit Breaker 20A & 30A, 120/240V, 2 Pole, 10kA AIR, Plug-In

HOMT220230

HOMT220230 is a Schneider Electric Homeline quad tandem mini circuit breaker designed for reliable electrical protection.This breaker features one 2-pole 20A and one 2-pole 30A circuit breaker in a compact plug-in mounting style, suitable for 120/240V applications. It has a 10,000 A interrupting rating (AIR) and is part of the Homeline series, providing efficient circuit protection with easy installation.

• Type: Quad Tandem Mini Circuit Breaker
• Series: Homeline
• Amperage: 20A (2-pole) and 30A (2-pole)
• Voltage: 120/240V
• Poles: 2-pole breakers (two sets)
• Interrupt Rating: 10kA AIR at 240V
• Mounting Type: Plug-In
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOMT220230
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : Homeline
• Voltage : 120/240VAC
• Amperage : 20, 30
• Phase : 1
• Poles : 2, 2
• AIC rating : 10kAIC at 240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Compatible Frames : HOM

Product Data

• UPC : 785901969754
• GTIN : 00785901969754
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1.97 in (50.04 mm) x 3.23 in (82.04 mm) (Height x Width x Depth)
• Weight : 1
• Standards : RoHS, HACR
• Certification : UL
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
