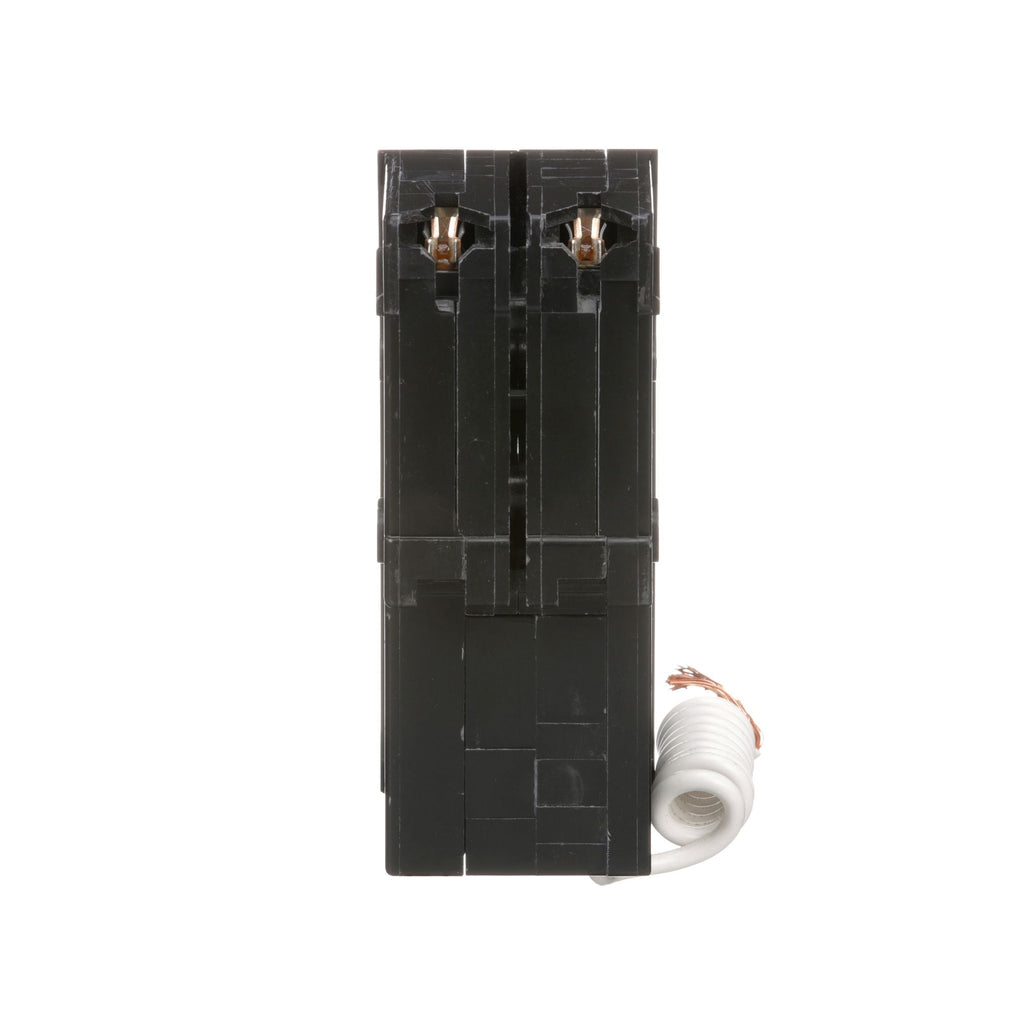

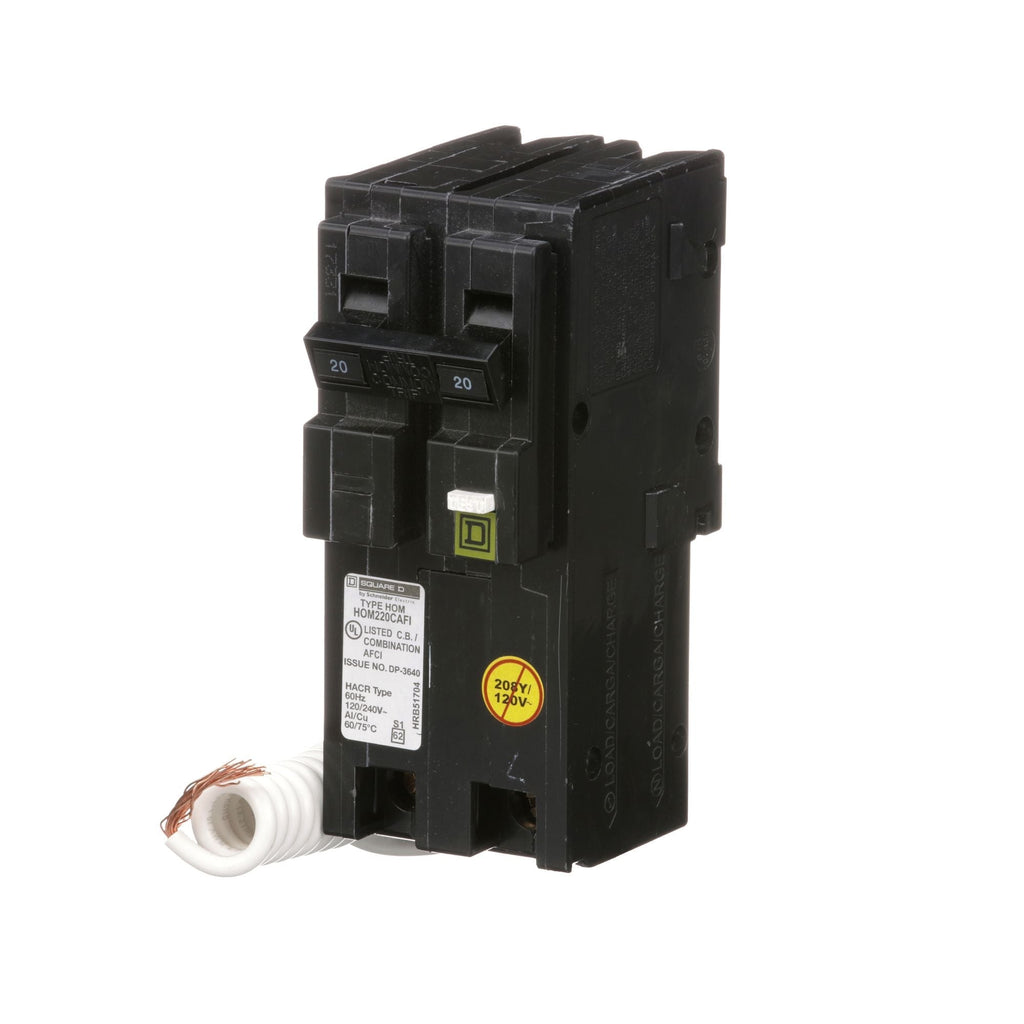

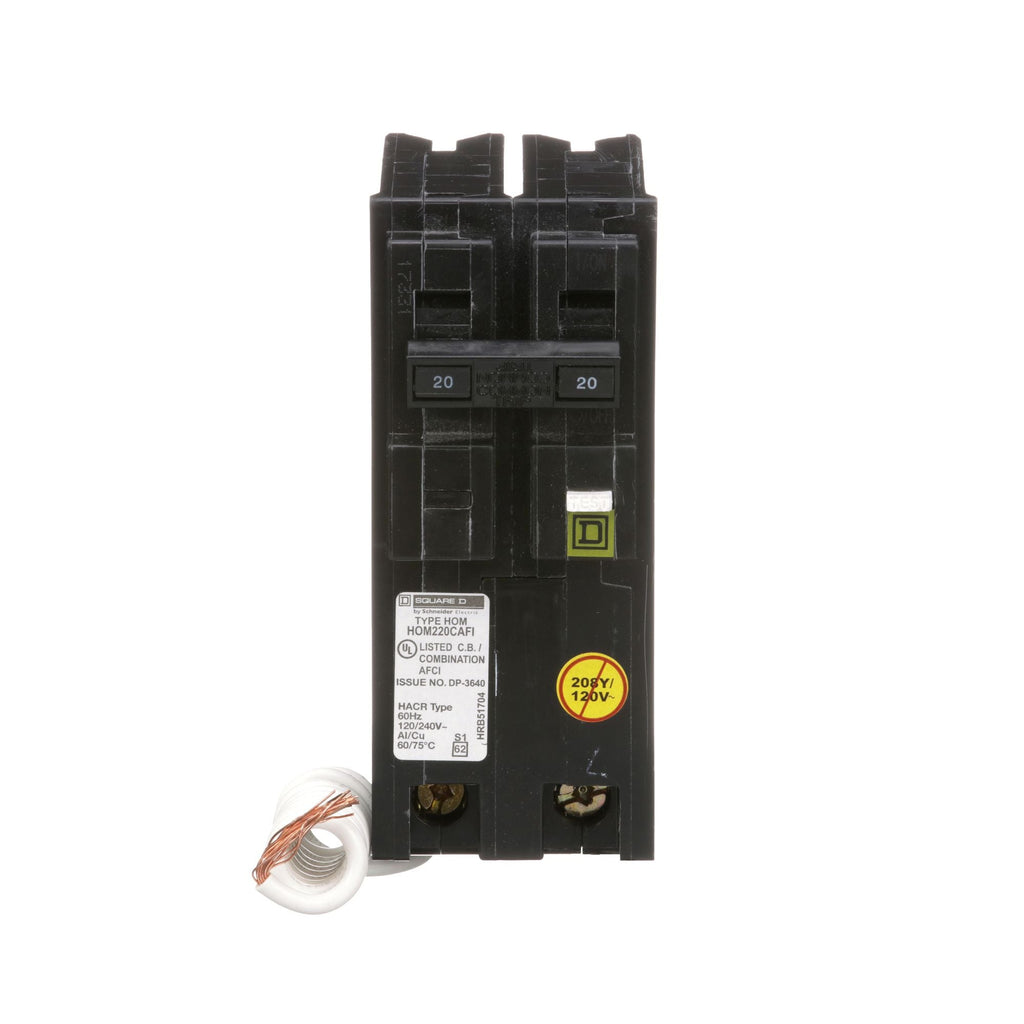

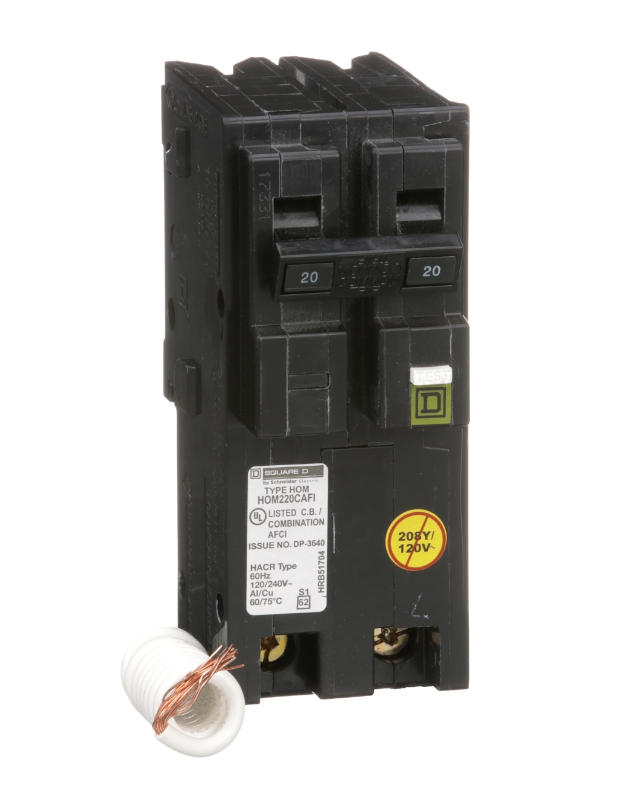

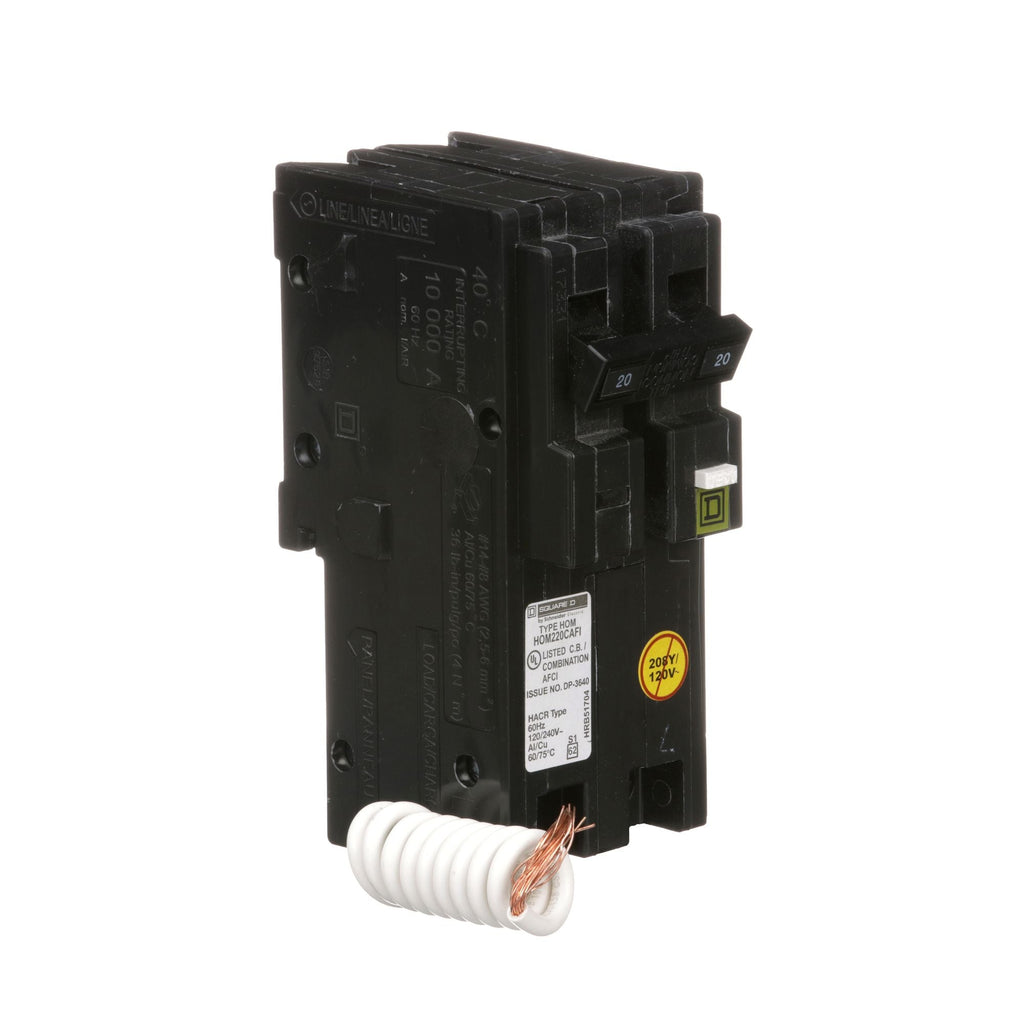

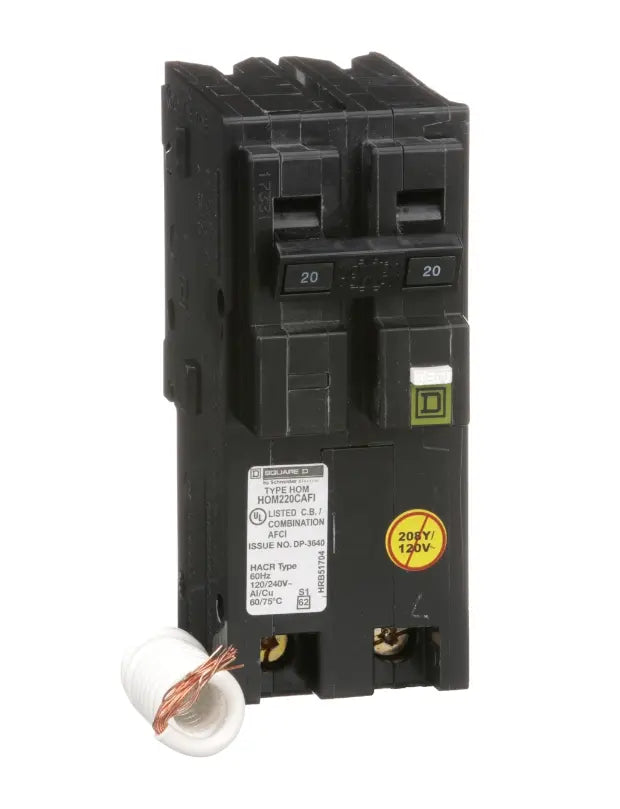

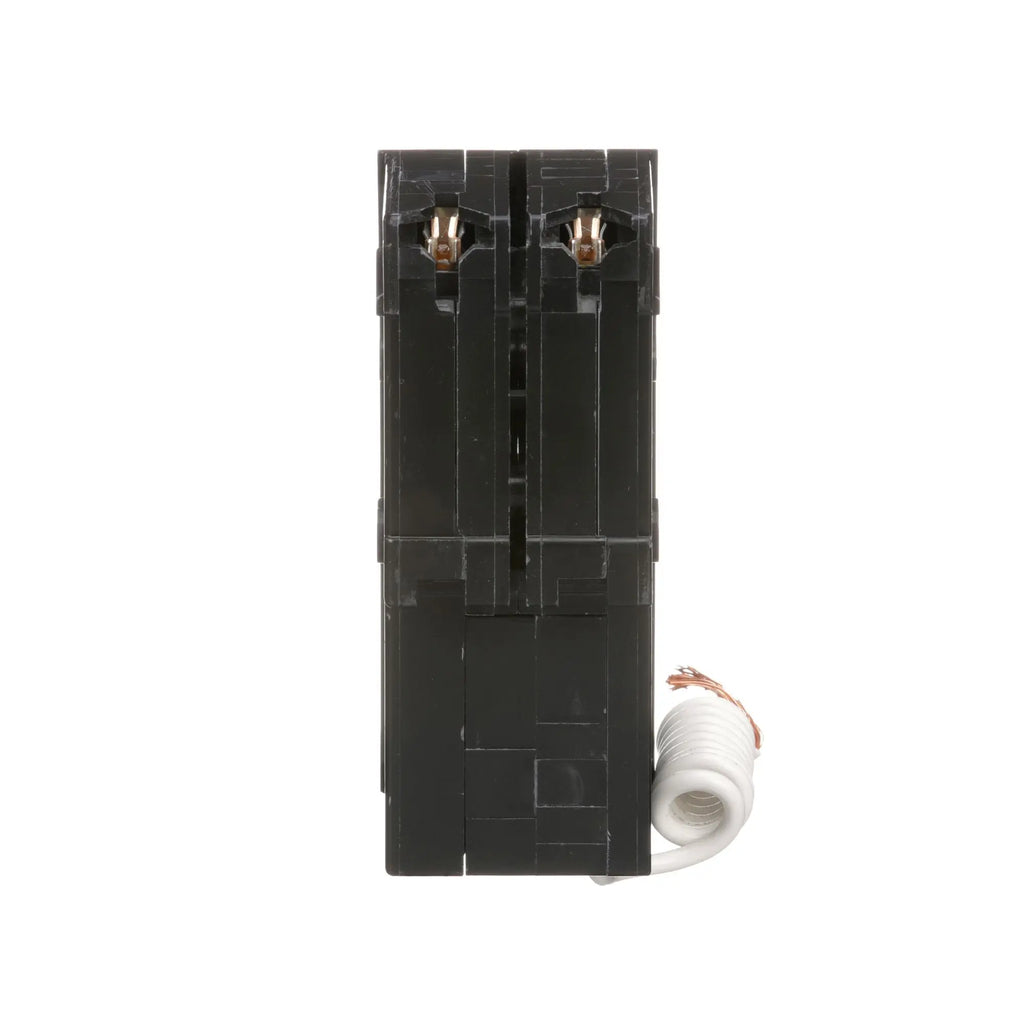

HOM220CAFI - Schneider Electric 20 Amp 120/240 Volt 1-Pole Homeline Circuit Breaker

HOM220CAFI

HOM220CAFI is a Schneider Electric 20 Amp, 120/240 Volt, 1-pole Homeline miniature circuit breaker designed for reliable circuit protection.This Homeline series breaker features a plug-in mounting type, a 10 kA interrupt rating at 120/240 VAC, and UL certification. It is engineered for residential and light commercial electrical panels, providing dependable overload and short circuit protection with a compact design.

• Amperage: 20 A
• Voltage: 120/240 V AC
• Poles: 1
• Mounting Type: Plug-in
• Interrupt Rating: 10 kA
• Series/Frame: Homeline
• Trip Unit: Thermal-magnetic
• Certifications: UL Listed
• Dimensions: 2.98 in L x 2 in W x 3.13 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM220CAFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901394075
• GTIN : 00785901394075
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 1.12
• Certification : UL
• Wire Size : AWG 14 to AWG 8 Aluminum/Copper, AWG 14 to AWG 10 Copper
