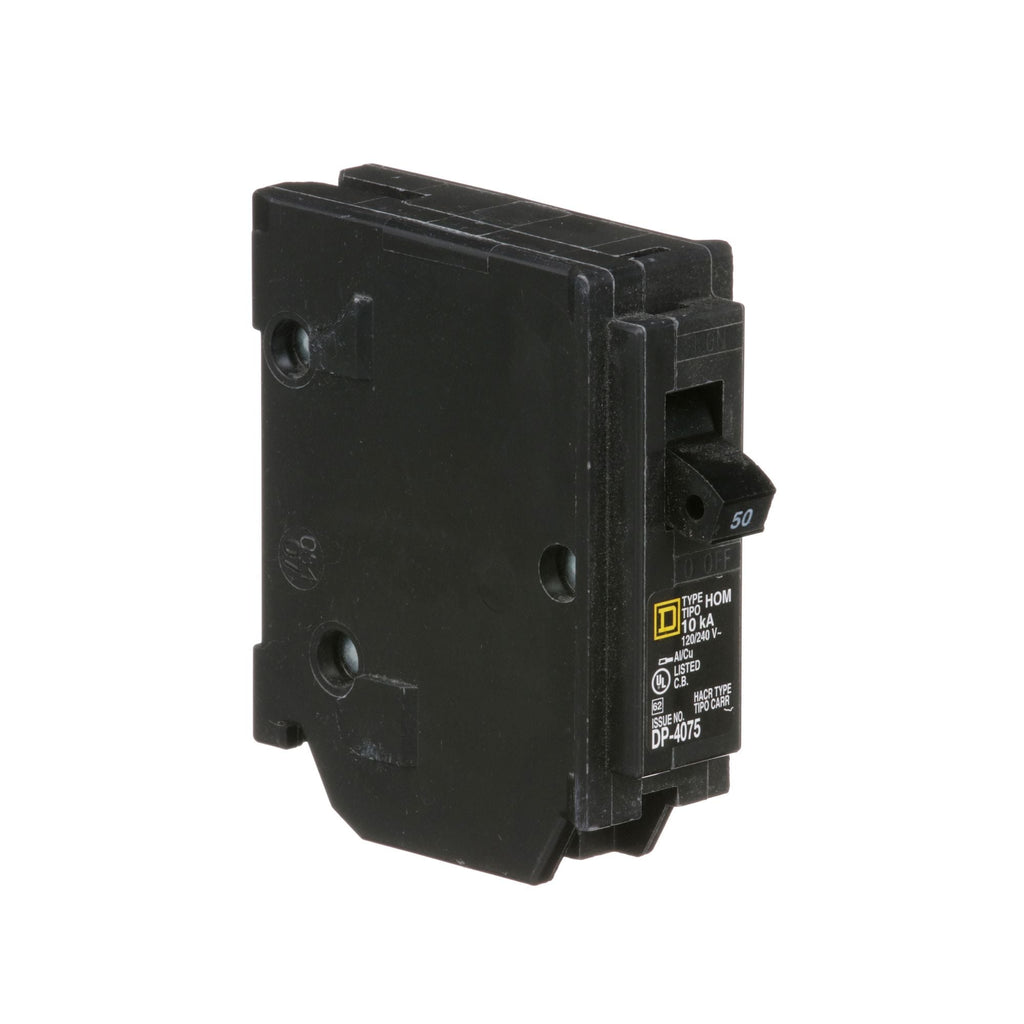

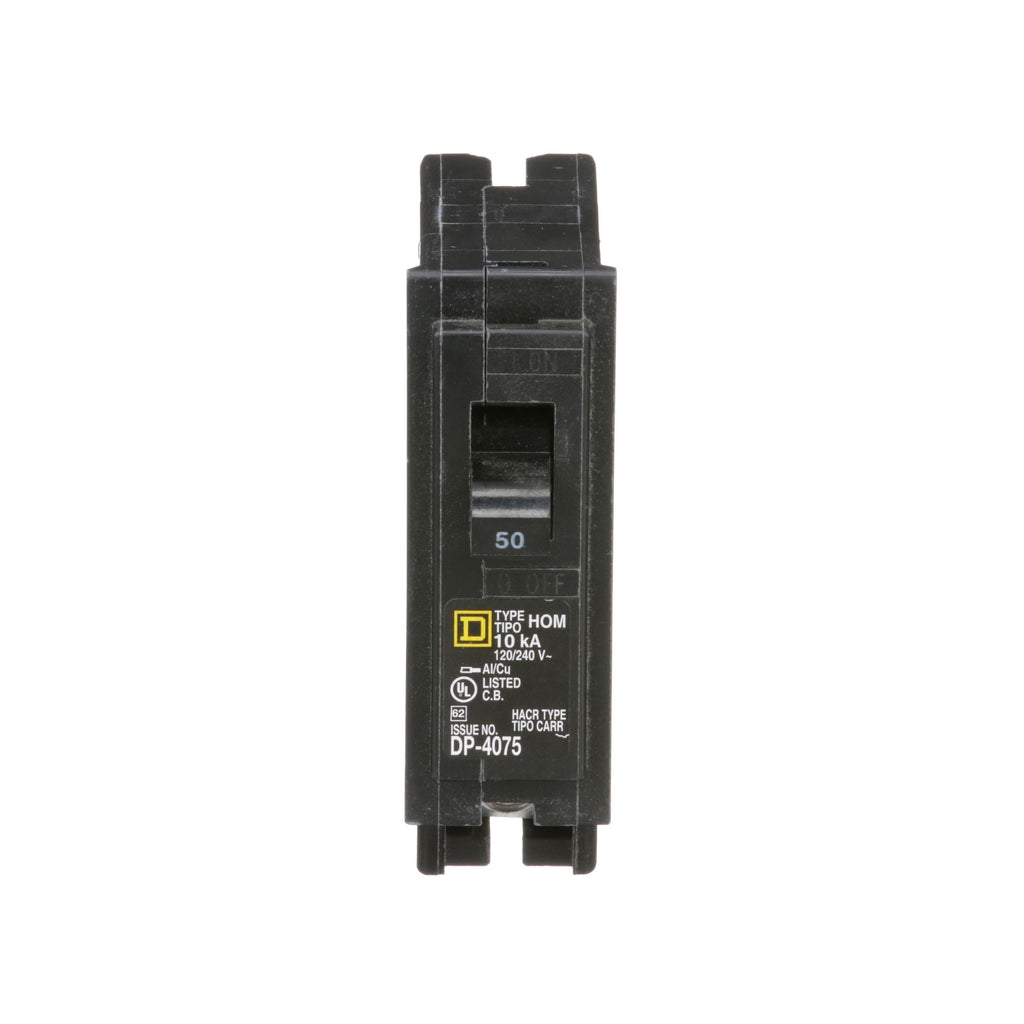

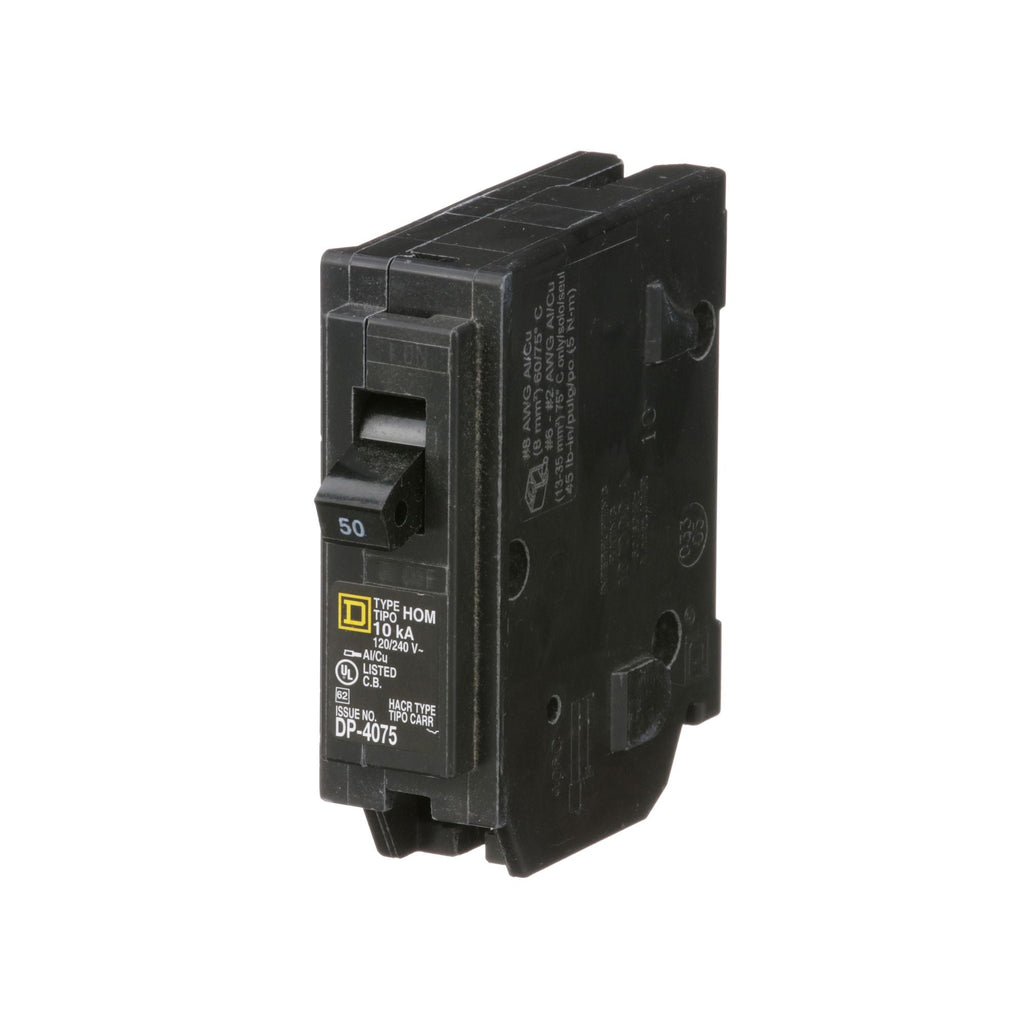

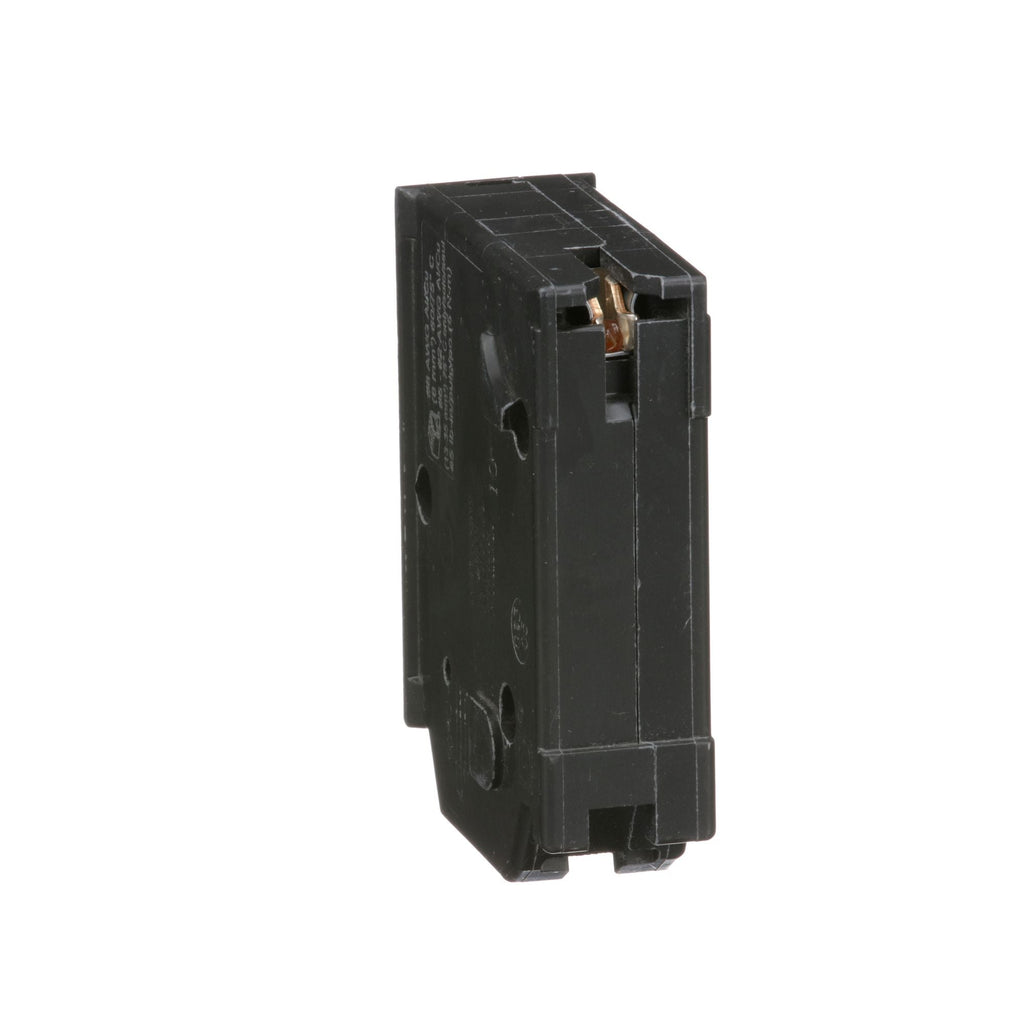

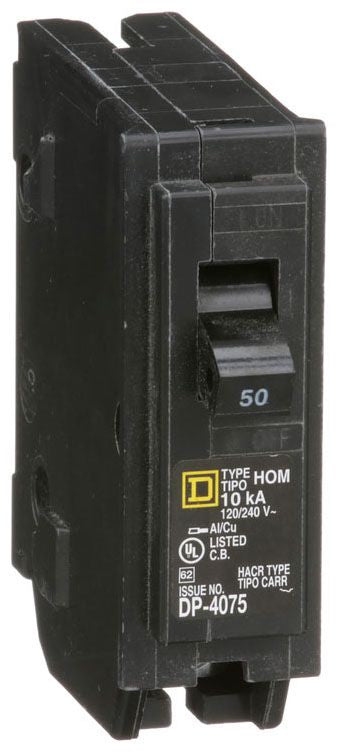

HOM150 - Square D 50 Amp 1 Pole 120/240V Plug-On Homeline Circuit Breaker

HOM150

HOM150 is a 1 pole, 50 amp thermal magnetic circuit breaker from Square D's Homeline series designed for residential and light commercial use.This HOM150 breaker features a 120/240V voltage rating, 10kA interrupting rating, and plug-on mounting for easy installation in Homeline load centers.

Key Specifications
• Amperage: 50 Amps
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupting Rating: 10kA at 120/240 VAC
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic with long-time and instantaneous trip
• Certifications: UL, CSA, RoHS, REACh, HACR compliant
• Terminal Connection: Lug
• Wire Gauge Range: AWG 8 to AWG 2, Aluminum or Copper

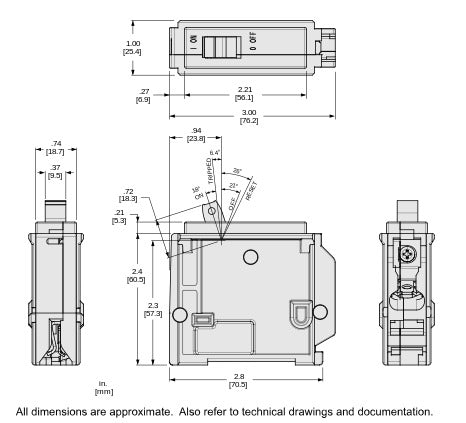

• Dimensions: 2.98" D x 1" W x 3.13" H
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065258
• GTIN : 00785901065258
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.34
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 8 to AWG 2, Al/Cu
