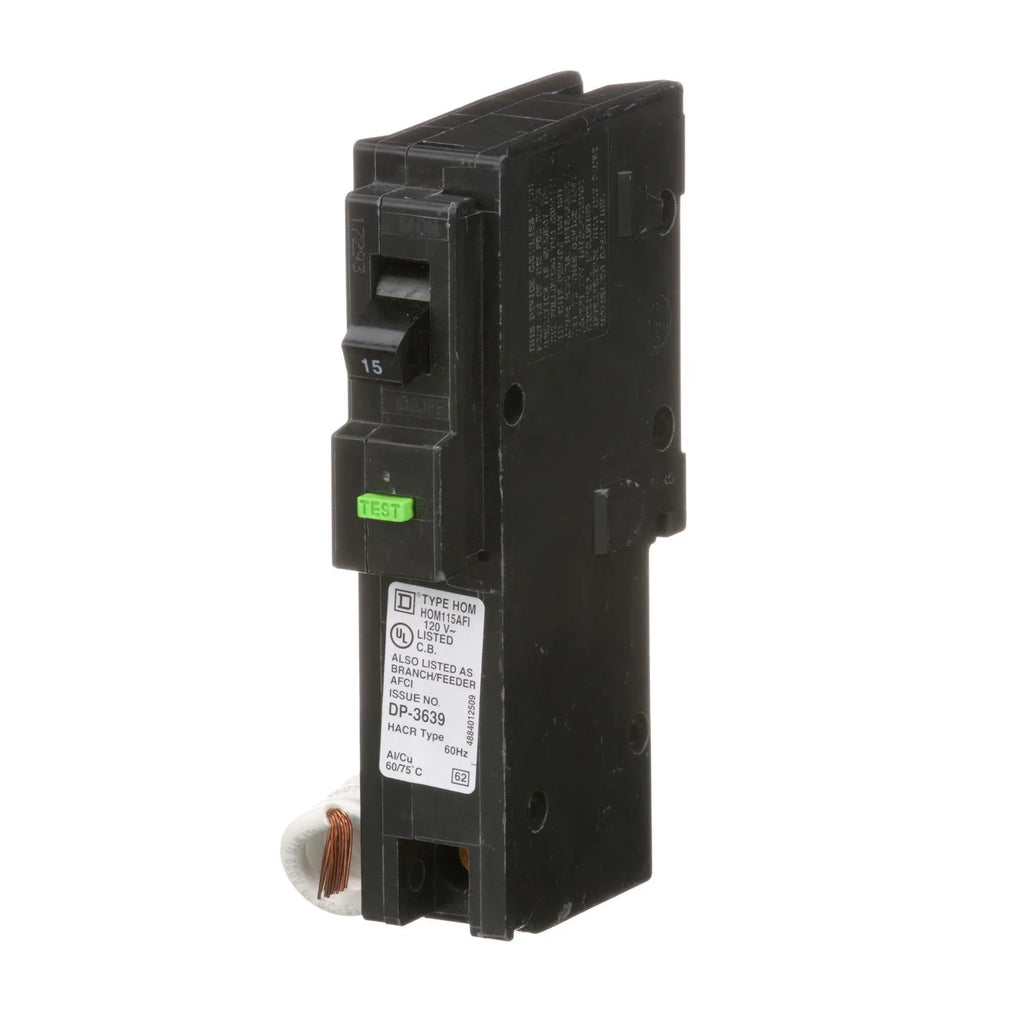

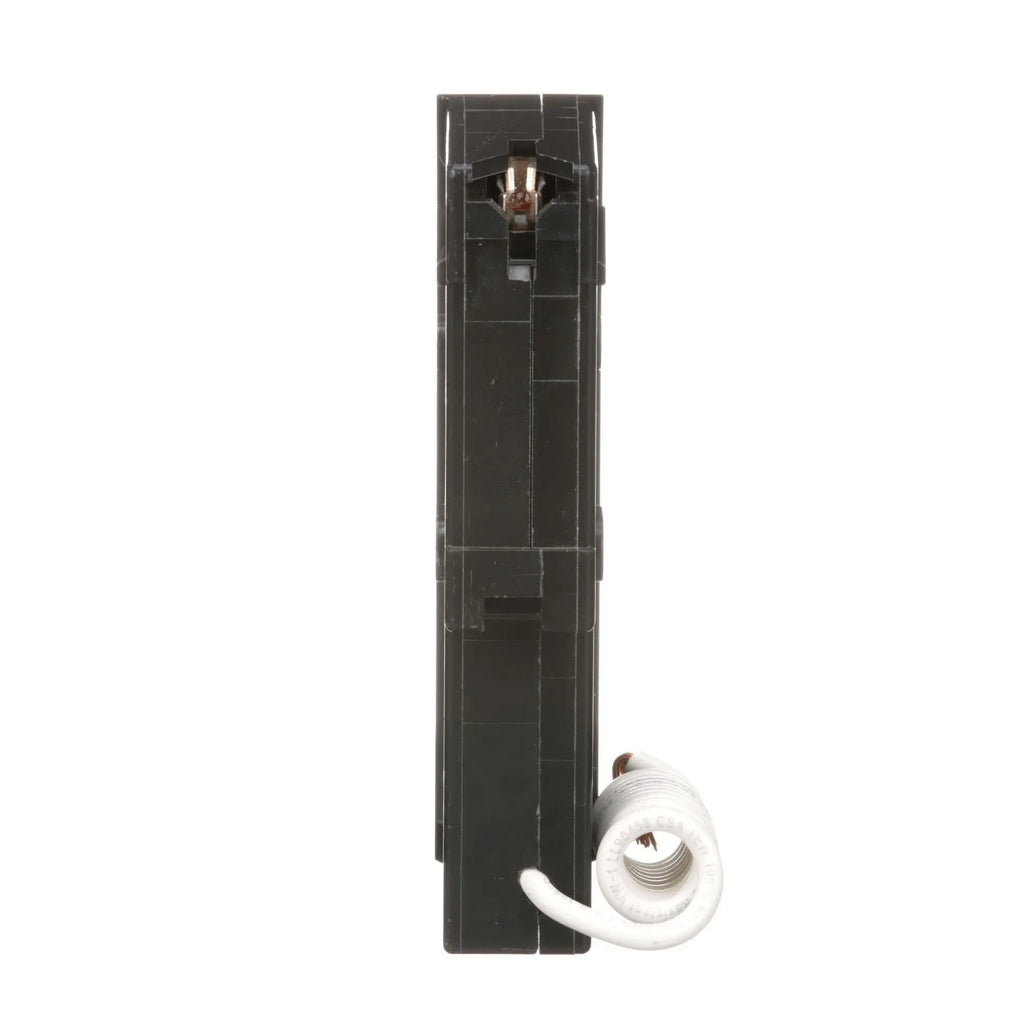

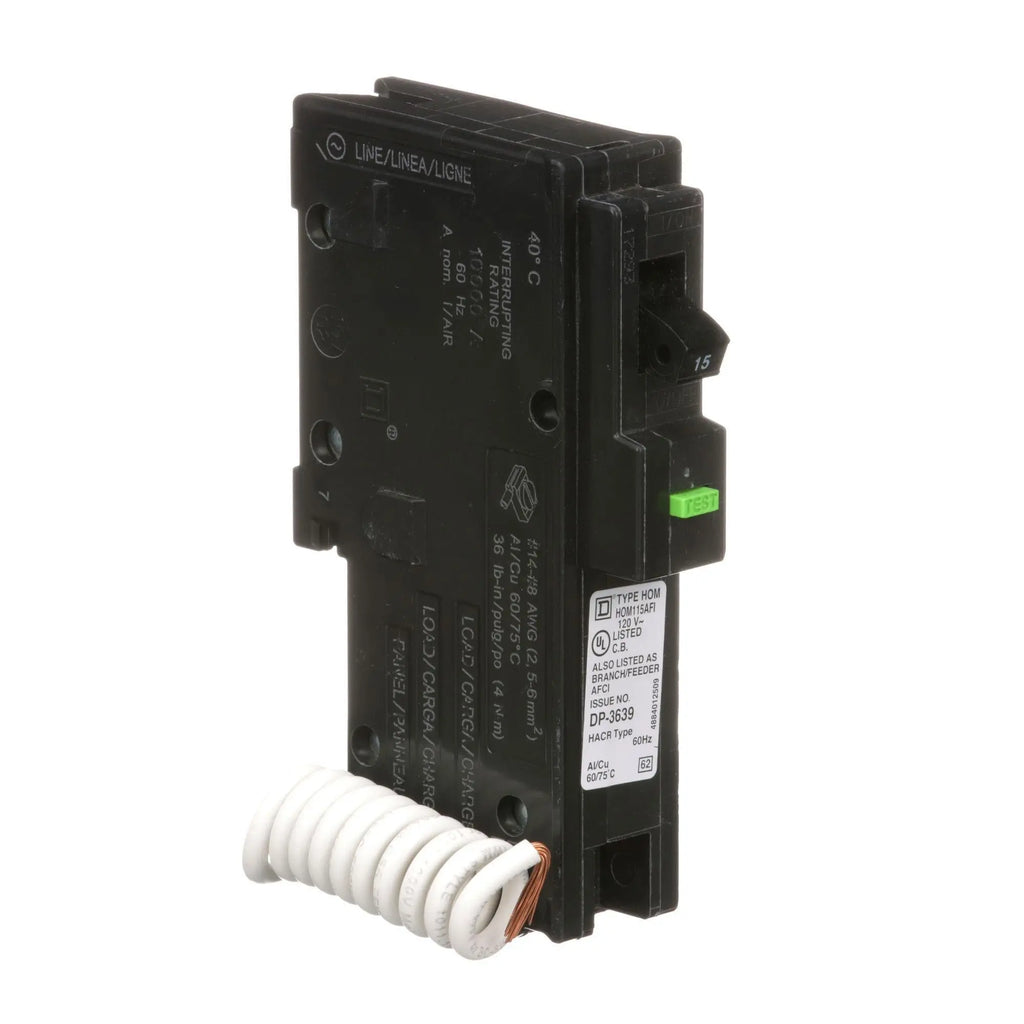

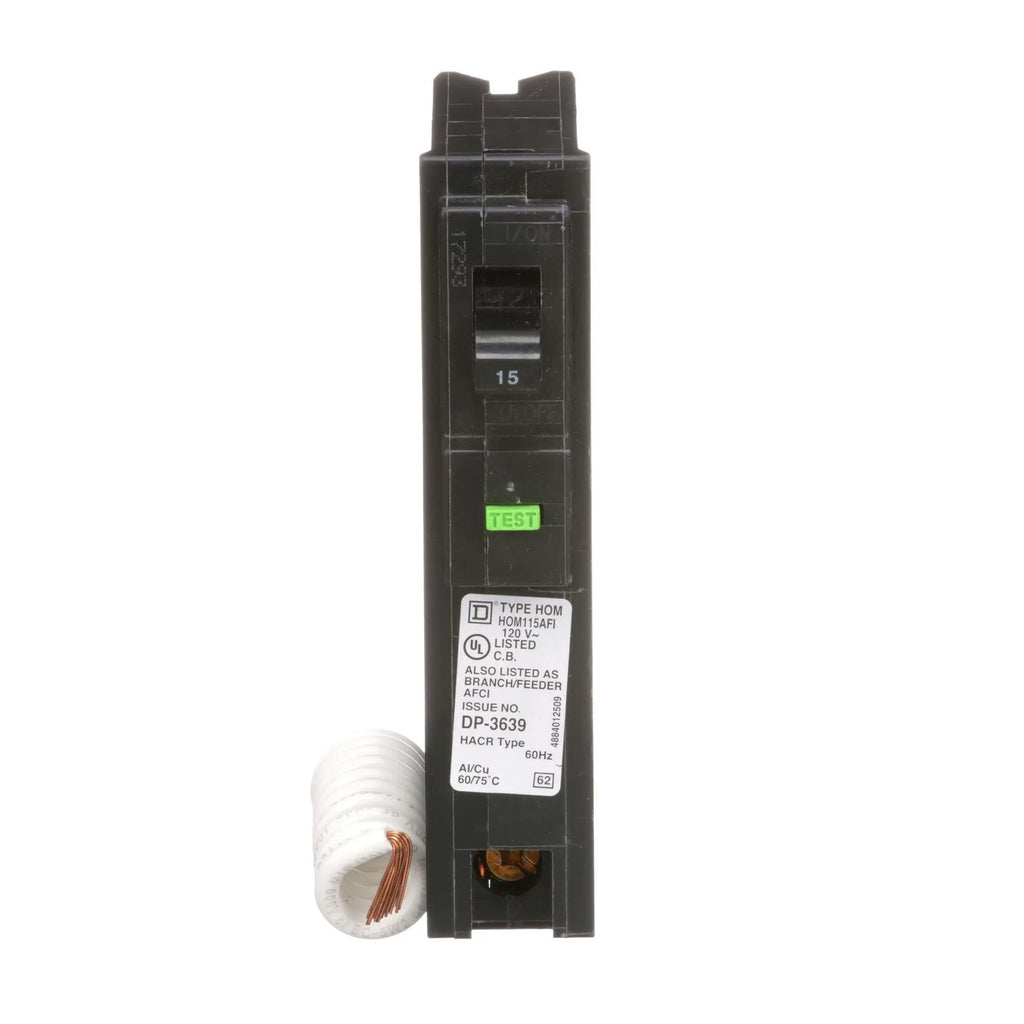

HOM115AFI - Square D 15 Amp 120V 1 Pole Arc Fault Circuit Breaker Plug-On HOM Frame

HOM115AFI

This circuit breaker features a 120V AC voltage rating and a 10kA interrupting rating at 120V. It uses a thermal magnetic trip unit with long-time and instantaneous trip functions. The breaker has a plug-on mounting type compatible with Homeline load centers and supports wire sizes from 14 to 8 AWG for both aluminum and copper conductors. It is UL and CSA certified and mercury free, providing reliable arc fault protection with a paddle actuator.

Key Specifications
• Amperage: 15 Amps
• Voltage: 120 VAC
• Poles: 1
• Interrupt Rating: 10kAIC at 120V
• Mounting Type: Plug-On
• Series/Frame: HOM
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL Listed, CSA
• Wire Gauge: 14 to 8 AWG Aluminum/Copper
• Breaker Feature: Mercury Free
• Actuator Type: Paddle
• For Use With: Homeline Load Center

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: HOM115AFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Arc Fault Circuit Interrupter
• Protection : Thermal Magnetic



Product Data

• UPC : 785901301325
• GTIN : 00785901301318
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.64
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper
