HOM115PDF - Square D 15 Amp 120 Volt 1-Pole Homeline Circuit Breaker Plug-On Neutral Dual Function

HOM115PDF

HOM115PDF is a Square D Homeline 1-pole circuit breaker rated for 15 amps and 120 volts with plug-on neutral and dual function arc fault and ground fault protection.HOM115PDF features thermal magnetic trip protection, a 10 kA interrupt rating at 120 VAC, and plug-in mounting designed for Homeline load centers. It supports 14 to 8 AWG copper or aluminum wire with clamp terminal connection and meets UL 489, UL 1699, and UL 943 standards for arc fault and ground fault circuit interrupters.

Key Specifications
• Amperage: 15 A
• Voltage: 120 VAC
• Poles: 1
• Mounting Type: Plug-On Neutral
• Interrupt Rating: 10 kA at 120 V
• Series/Frame: Homeline
• Trip Unit: Thermal Magnetic Dual Function (Arc Fault and Ground Fault)
• Wire Range: 14-8 AWG Copper/Aluminum

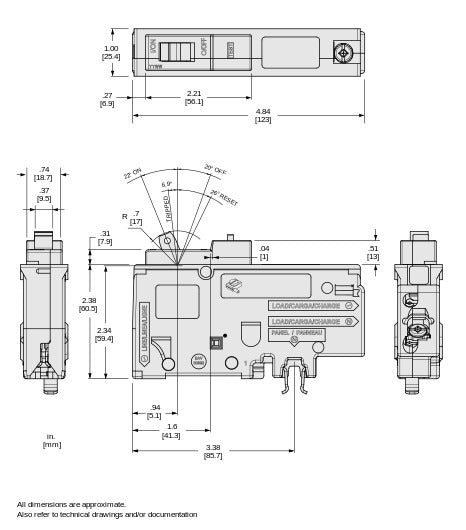

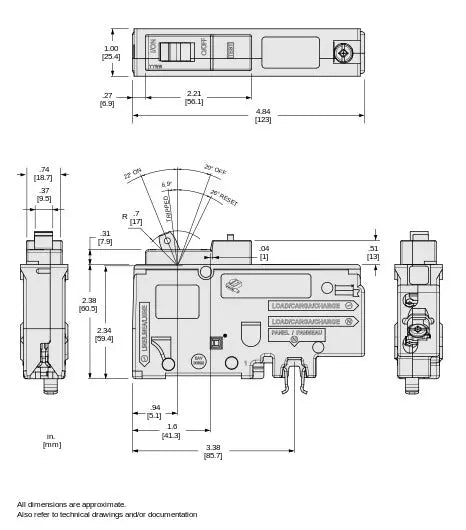

• Dimensions: 3.13" H x 1" W x 2.98" D
• Certifications: UL Listed, NEC Compliant
• Phase: Single
• Weight: 0.65 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM115PDF
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp Terminals
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al), 10 AWG (Cu)
• Breaker Type : Combination Arc-Fault And Ground Fault
• Protection : Thermal Magnetic

Product Data

• UPC : 785901978510
• GTIN : 00785901978510
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.615
• Standards : UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Aluminum/Copper, AWG 14 to AWG 10, Copper
