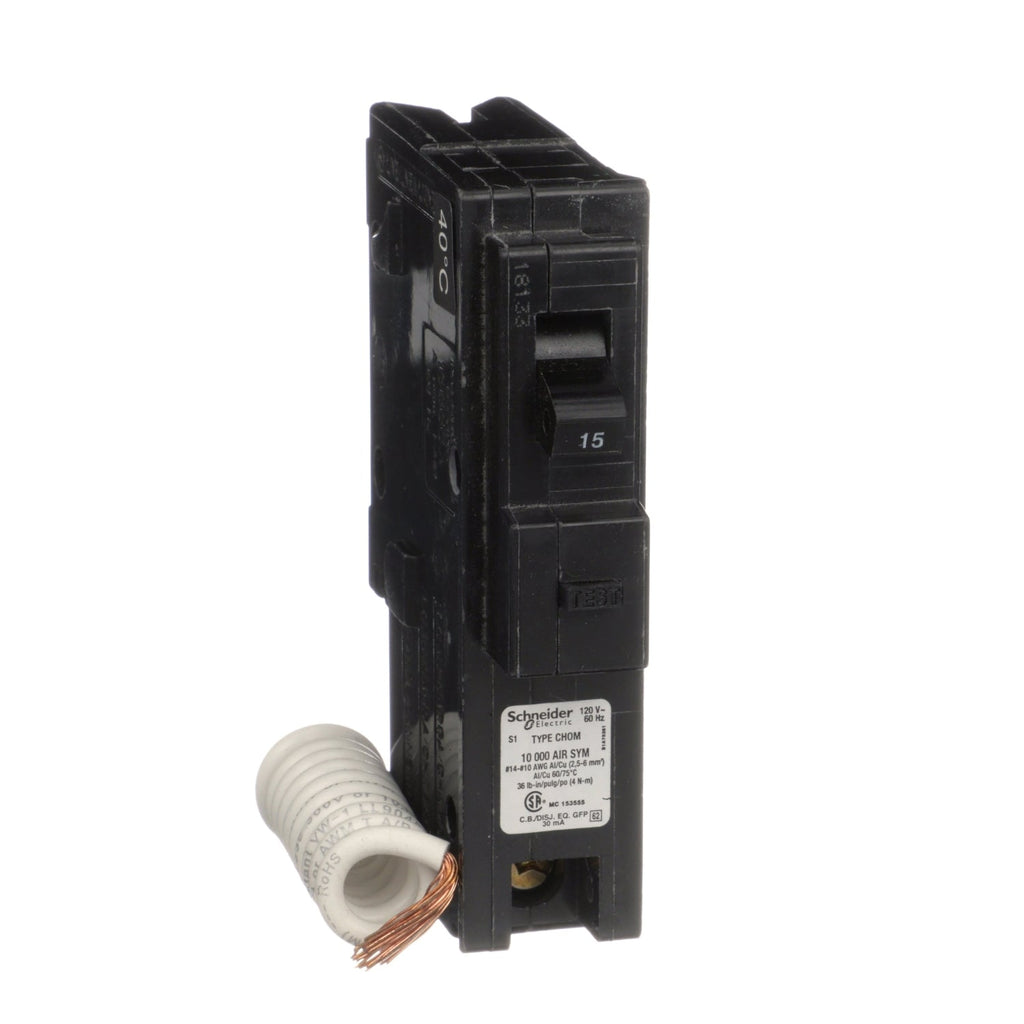

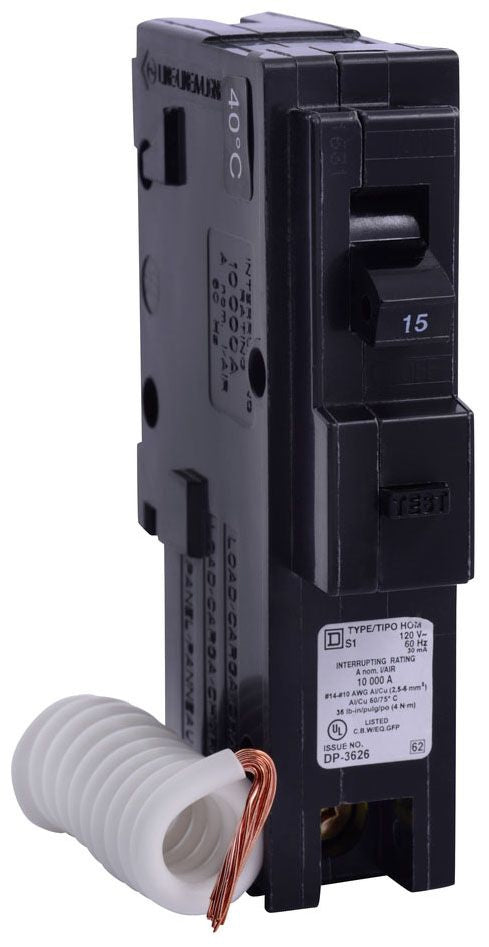

HOM115EPD - Square D 15A 1-Pole 120VAC Homeline Ground Fault Circuit Breaker Plug-In 10kA AIR

HOM115EPD

HOM115EPD is a Square D Homeline 1-pole circuit breaker rated for 15 amps and 120 volts AC with ground fault protection.This molded case circuit breaker features a plug-in mounting type, a 10,000 amp interrupt rating (AIR), and ground fault Class B protection with a 30mA trip unit. It is designed for equipment protection against overloads, short circuits, and ground faults, compatible with Homeline electrical panels. The breaker is UL listed and HACR rated for HVAC applications.

• Amperage: 15 Amps
• Voltage: 120 VAC
• Poles: 1
• Mounting Type: Plug-In
• Interrupt Rating: 10kA AIR
• Series/Frame: Homeline
• Trip Unit: Ground Fault Class B, 30mA
• Certifications: UL Listed, HACR Rated
• Ground Fault Protection: Yes
• Application: Equipment Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM115EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901944102
• GTIN : 00785901944102
• Country of Origin : Mexico
• Dimensions : Length 17.89 in (454.5 mm)
• Weight : 0.659 lb
• Certification : UL
• Wire Size : AWG 14 to AWG 8 Aluminum/Copper
