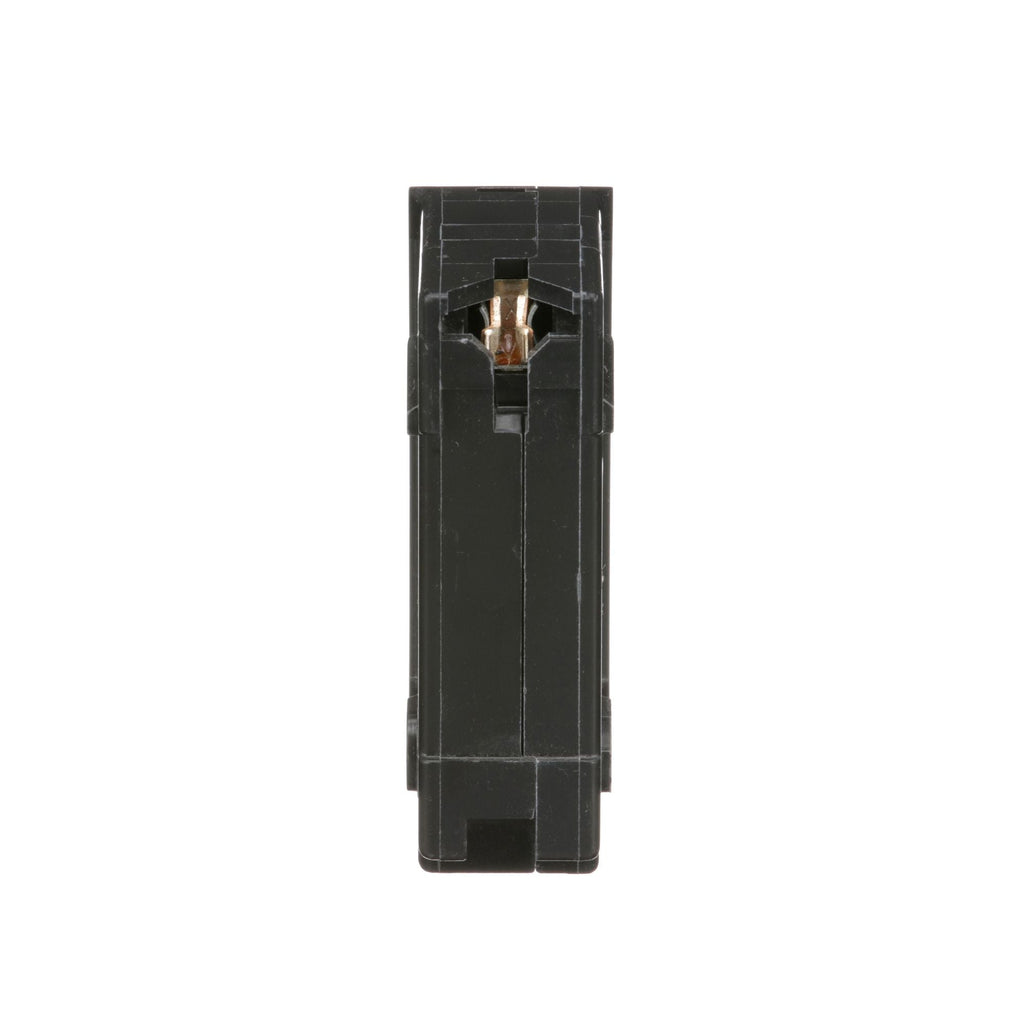

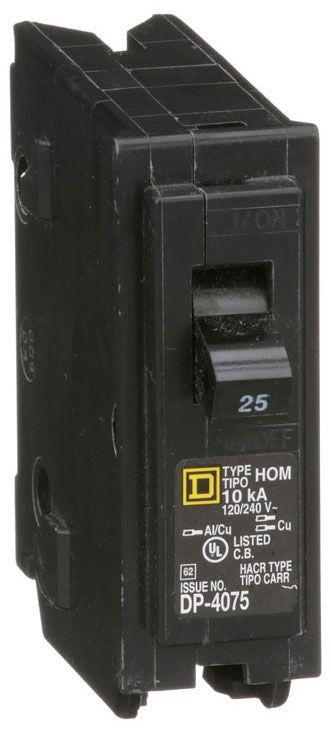

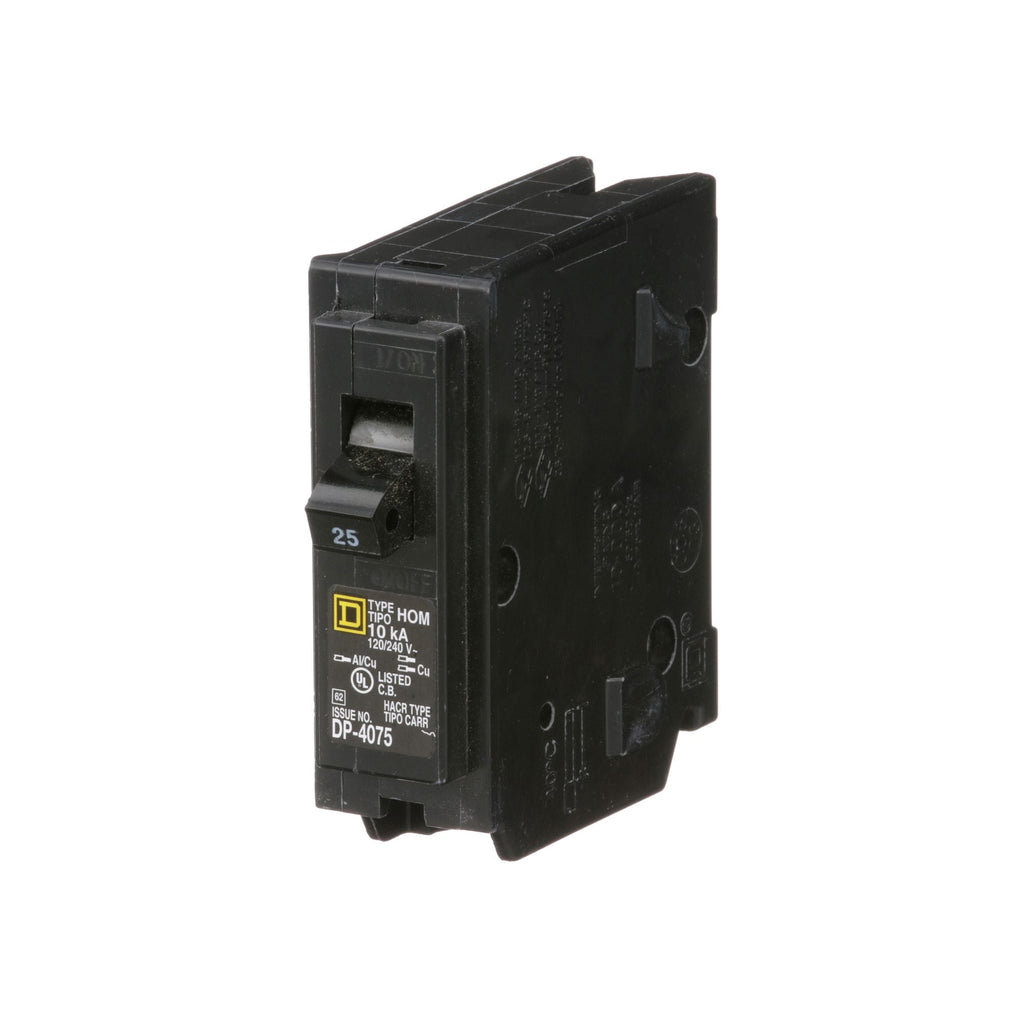

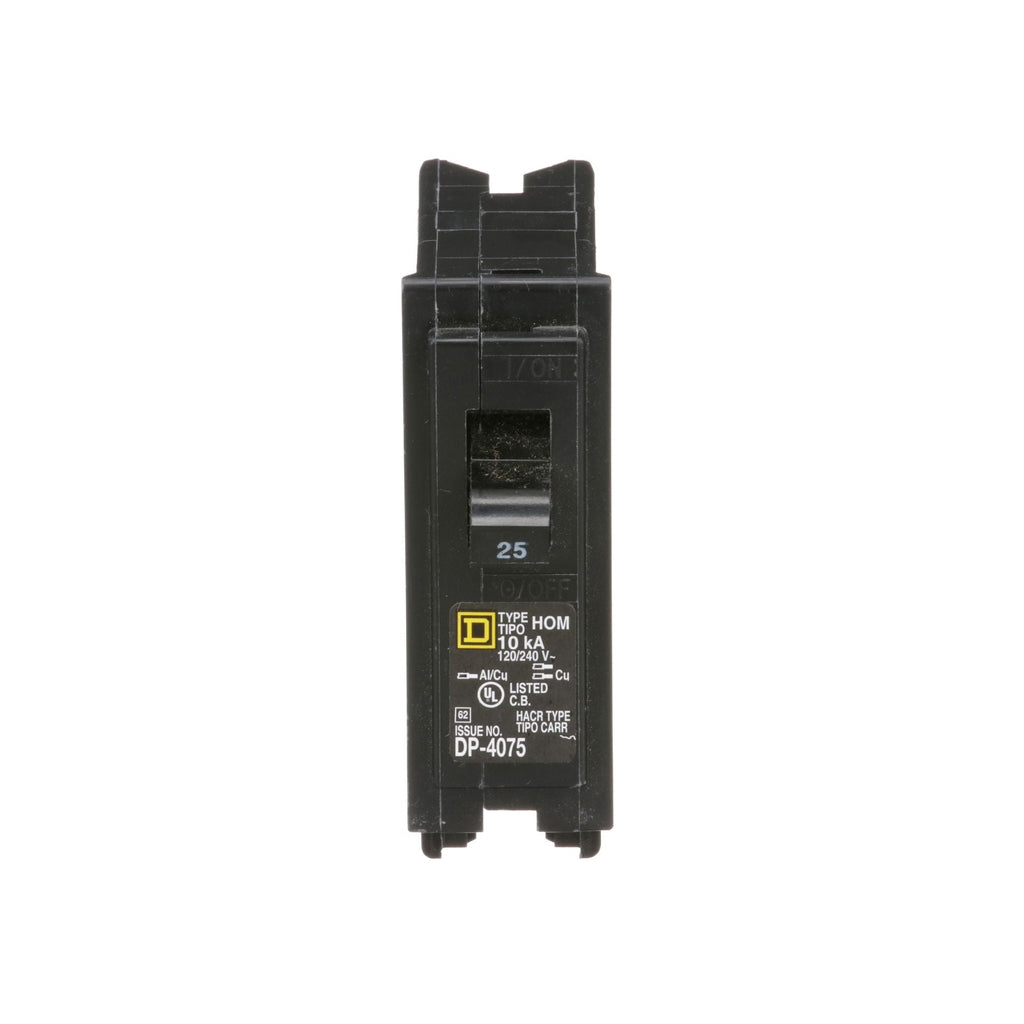

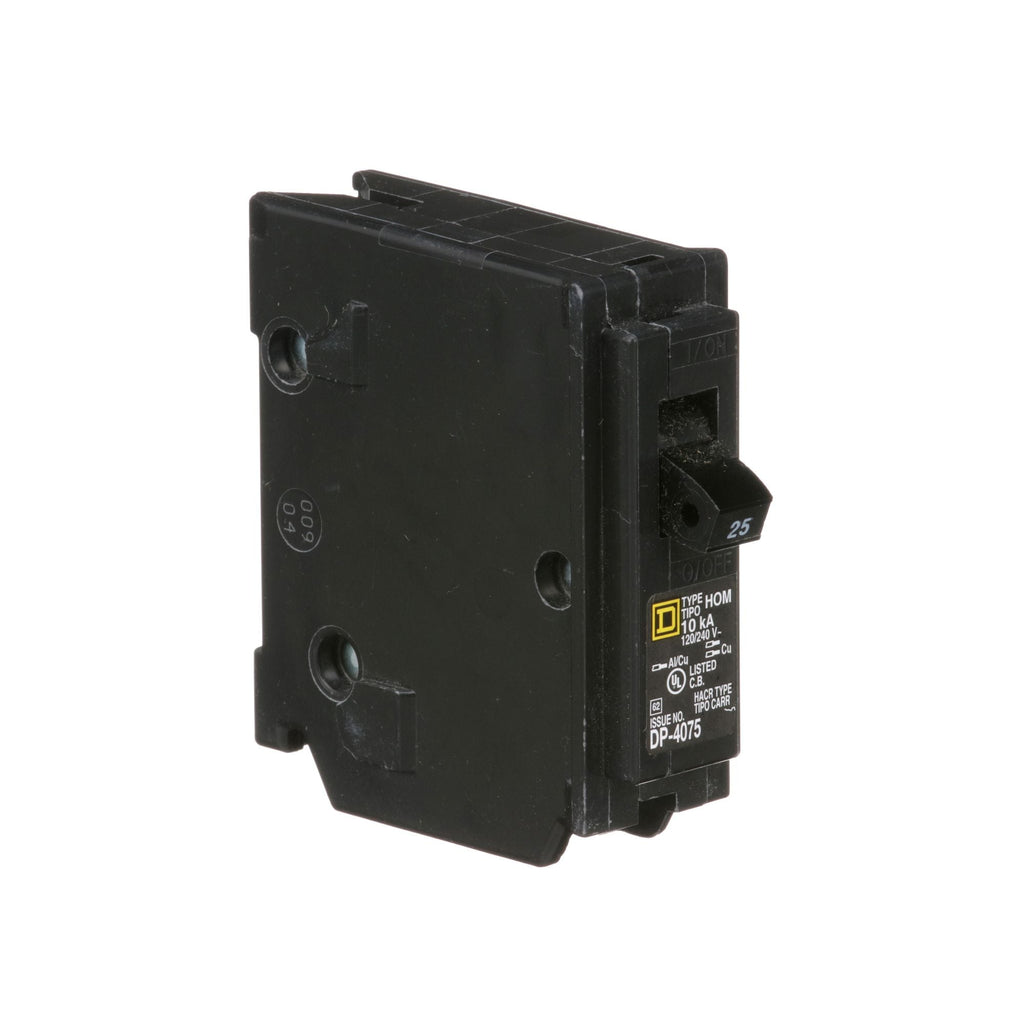

HOM125 - Square D 25A 120/240V 1-Pole Homeline Plug-In Circuit Breaker 10kA Interrupting Rating

HOM125

HOM125 is a 25 Amp, single-pole, thermal-magnetic plug-in circuit breaker from Square D's Homeline series designed for residential and commercial circuit protection.This circuit breaker provides reliable overcurrent protection for electrical circuits with a 120/240 VAC voltage rating and a 10 kA interrupting capacity. It features a plug-in mounting type compatible with Square D Homeline load centers and a screw clamp terminal connection. Certified by UL, the HOM125 ensures safety and compliance with electrical codes.

• Manufacturer: Square D
• Part Number: HOM125
• Amperage: 25 Amps
• Voltage Rating: 120/240 VAC
• Poles: 1 Pole
• Interrupting Rating: 10 kA
• Mounting Type: Plug-In
• Trip Unit: Thermal-Magnetic
• Terminal Type: Screw Clamp
• Series/Frame: Homeline
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065463
• GTIN : 00785901065463
• Country of Origin : Mexico

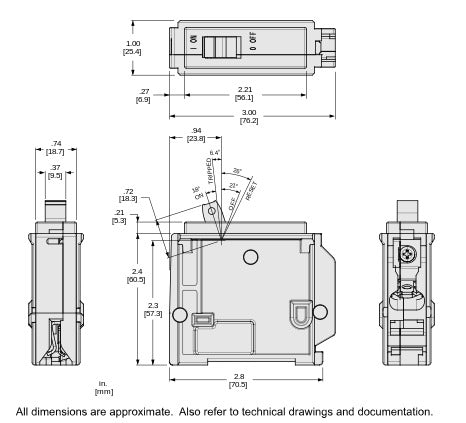

• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.32
• Certification : CSA Certified, HACR, Switching Duty rated, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper, 2x AWG 14 to AWG 10, Copper
