HND3800T33W - Eaton Series C 800A 600V 3-Pole Molded Case Circuit Breaker NG Frame Digitrip 310 Electronic LS Trip

HND3800T33W

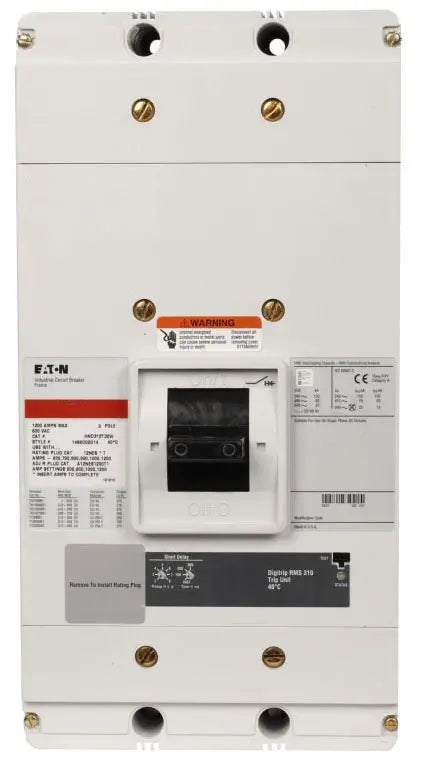

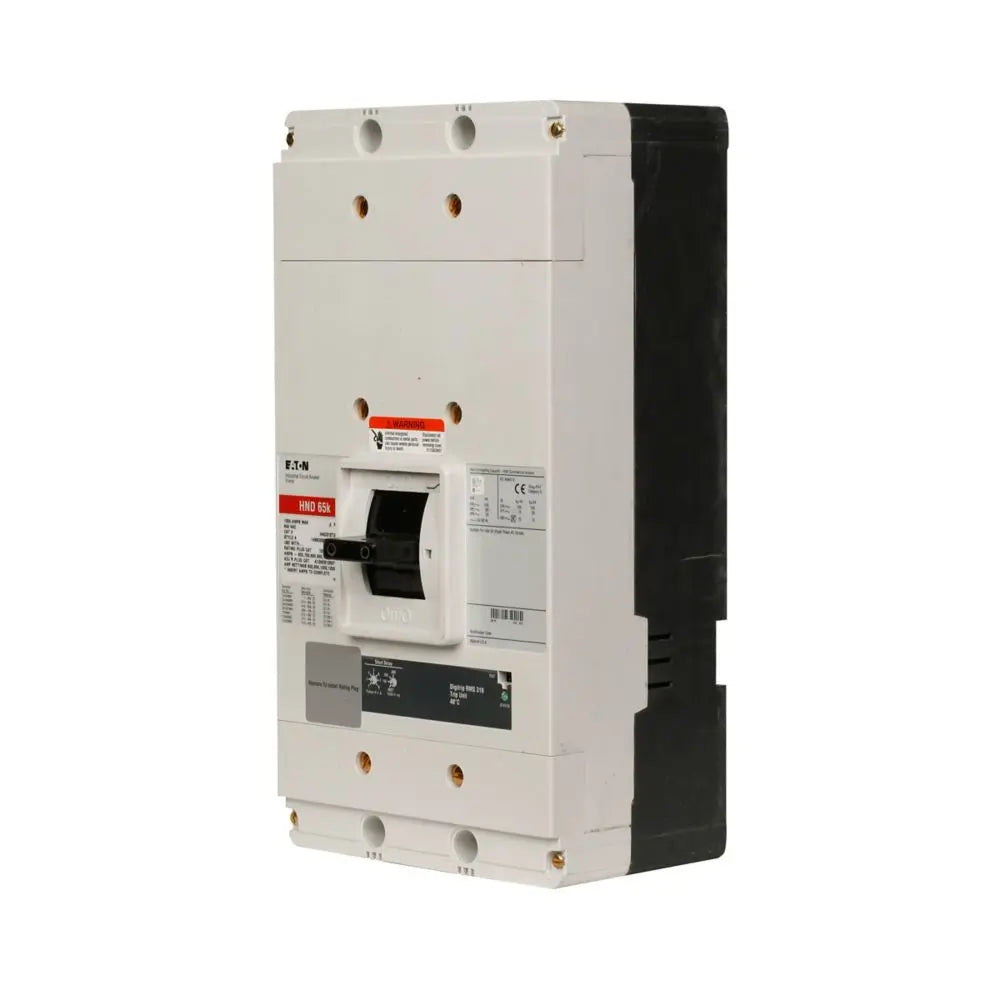

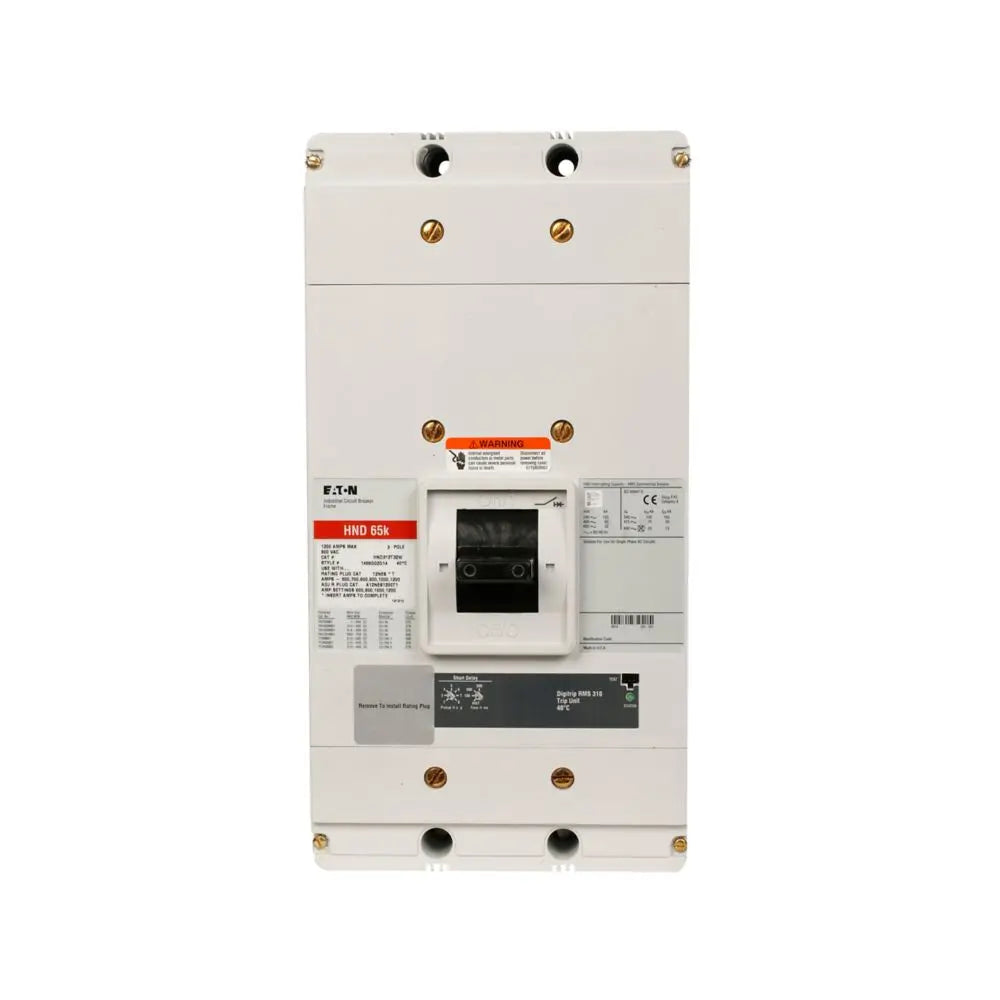

HND3800T33W is an Eaton Series C electronic molded case circuit breaker designed for reliable protection in commercial and industrial applications. This NG-frame breaker features a Digitrip 310 RMS electronic LS trip unit, three-pole configuration, 800A current rating, and 600V AC voltage rating. It is rated for 65 kAIC at 480V and 100 kAIC at 240V, making it suitable for demanding environments. The unit is bolt-on mount and does not include terminals, providing flexibility for installation. Engineered for durability and safety, this breaker is HACR rated and supports 50/60 Hz operation. It is 80% rated for continuous load applications and is part of Eaton's trusted Series C lineup. The solid-state protection and electronic trip technology ensure precise and reliable circuit interruption.

• Part Number: HND3800T33W
• Manufacturer: Eaton Cutler-Hammer
• Series: Series C
• Frame: NG
• Poles: 3
• Amperage Rating: 800A
• Voltage Rating: 600V AC
• Interrupt Rating: 65 kAIC @ 480V, 100 kAIC @ 240V
• Mounting Type: Bolt-On
• Terminals: Without terminals
• Protection Type: Electronic LS Trip (Digitrip 310)
• Certifications: HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HND3800T33W
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HND
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LS - Long-Time and Short-Time
• Frame Size : N Frame
• Protection : Solid State

Product Data

• UPC : 786679264003
• GTIN : 00786679264003
• Country of Origin : United States
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 48.7
• Certification : HACR Rated
