Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
HND3800T32W

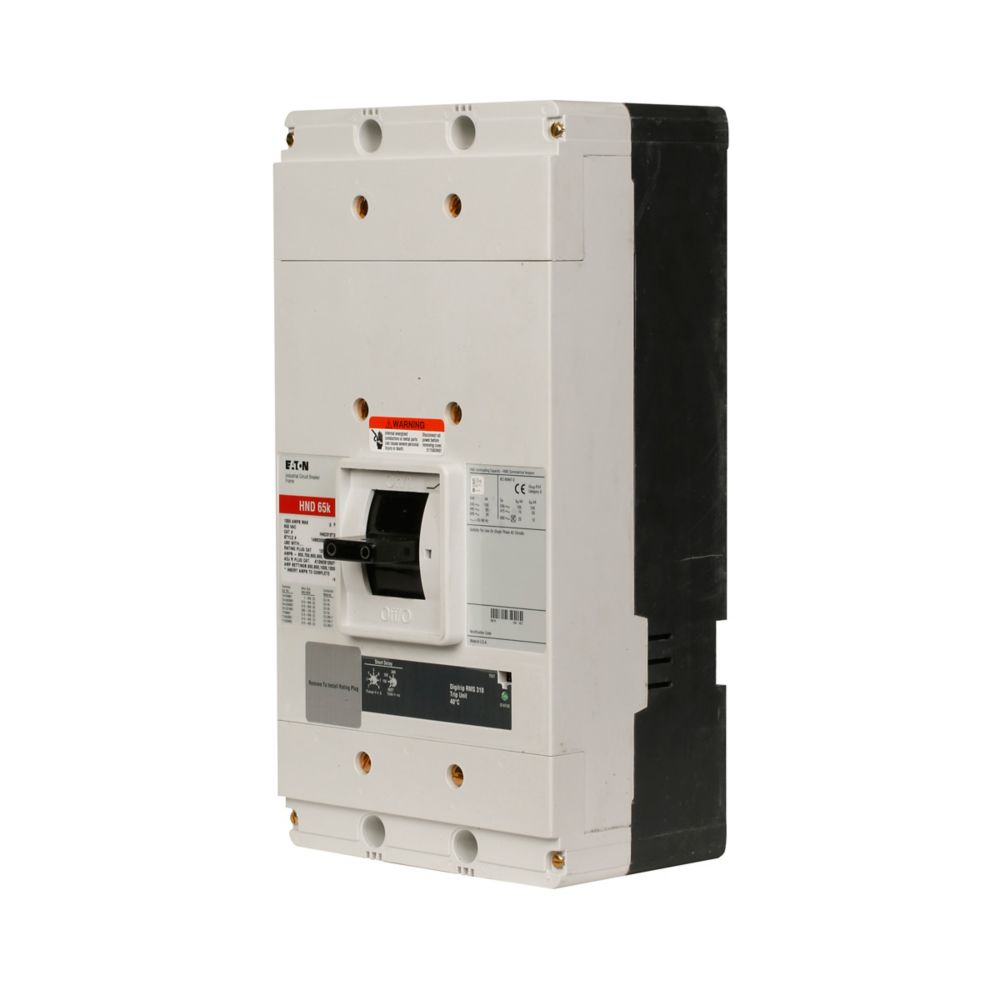

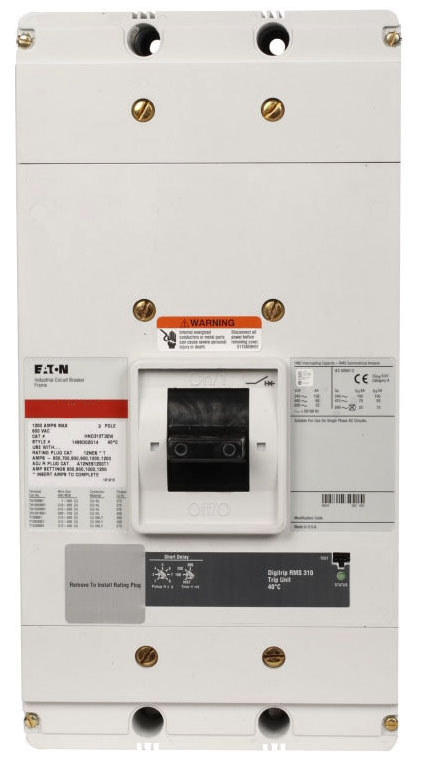

HND3800T32W is a 3 pole molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems.This Cutler Hammer circuit breaker features an 800A current rating and a maximum voltage of 600VAC. It is built with an HND frame and includes an electronic non-interchangeable trip unit (Digitrip RMS 310) with LSI trip unit functions. The breaker is designed for bolt-on mounting and is suitable for use in a variety of demanding applications.
- Part Number: HND3800T32W
- Manufacturer: Cutler Hammer
- Amperage: 800A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Series/Frame: HND
- Interrupt Rating: 80% Duty
- Trip Unit: Digitrip RMS 310
- Trip Unit Functions: LSI
Specifications
- Part Number: HND3800T32W
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HND
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : N Frame
- Protection : Solid State
Product Data
- UPC : 786679264027
- GTIN : 00786679264027
- Country of Origin : United States
- Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 48.2
- Certification : HACR Rated
