HMCP150T4 - Eaton 150A 600V 3 Pole Motor Circuit Protector Circuit Breaker Frame J-K Series C

HMCP150T4

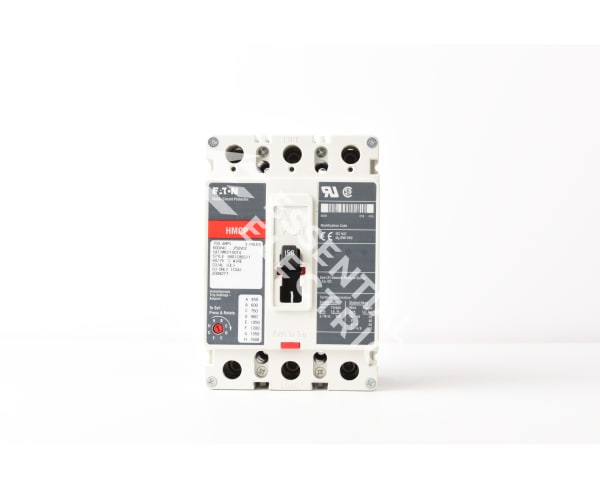

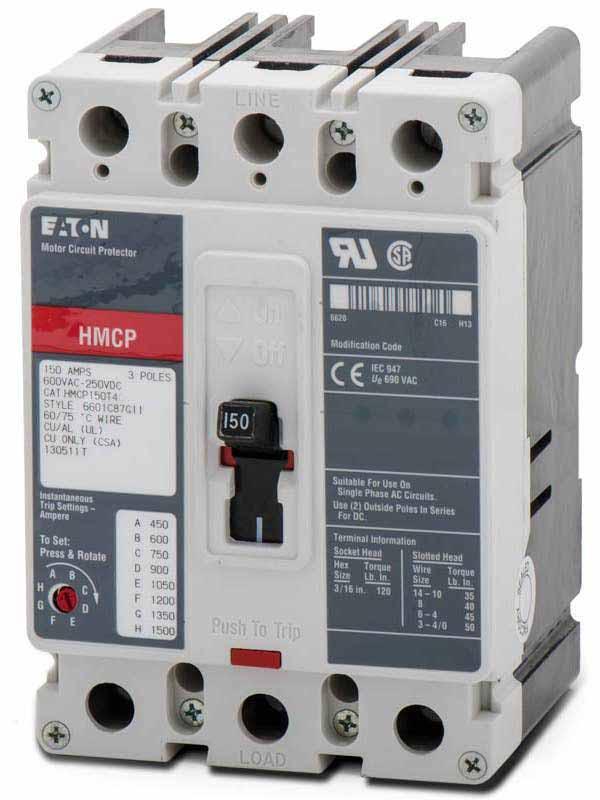

HMCP150T4 is a 150 amp, 600 volt, 3 pole motor circuit protector circuit breaker from Eaton designed for reliable motor protection.The HMCP150T4 features a Frame J-K, Series C design with a magnetic trip unit rated for 450-1500 amps. It is UL Listed and CSA Certified, suitable for bolt-on mounting, and supports three-phase power systems. This molded case circuit breaker provides robust protection with a 65kA interrupt rating at 480V.

• Amperage: 150 A
• Voltage: 600 V AC / 250 V DC
• Poles: 3
• Frame Type: J-K (HMCP Series C)
• Trip Unit: Magnetic (450-1500 A range)
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA @ 480V
• Certifications: UL Listed, CSA Certified
• Dimensions: 7.6 in depth, 4.9 in height, 5.1 in width
• Weight: 4.25 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP150T4
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : F Frame
• Protection : Magnetic Only

Product Data

• UPC : 786679150771
• GTIN : 00786679150771
• Country of Origin : Dominican Republic
• Dimensions : 7.6 in x 4.9 in x 5.1 in (Length/Depth x Height x Width)
• Weight : 4.25
• Certification : UL Listed,CSA Certified
