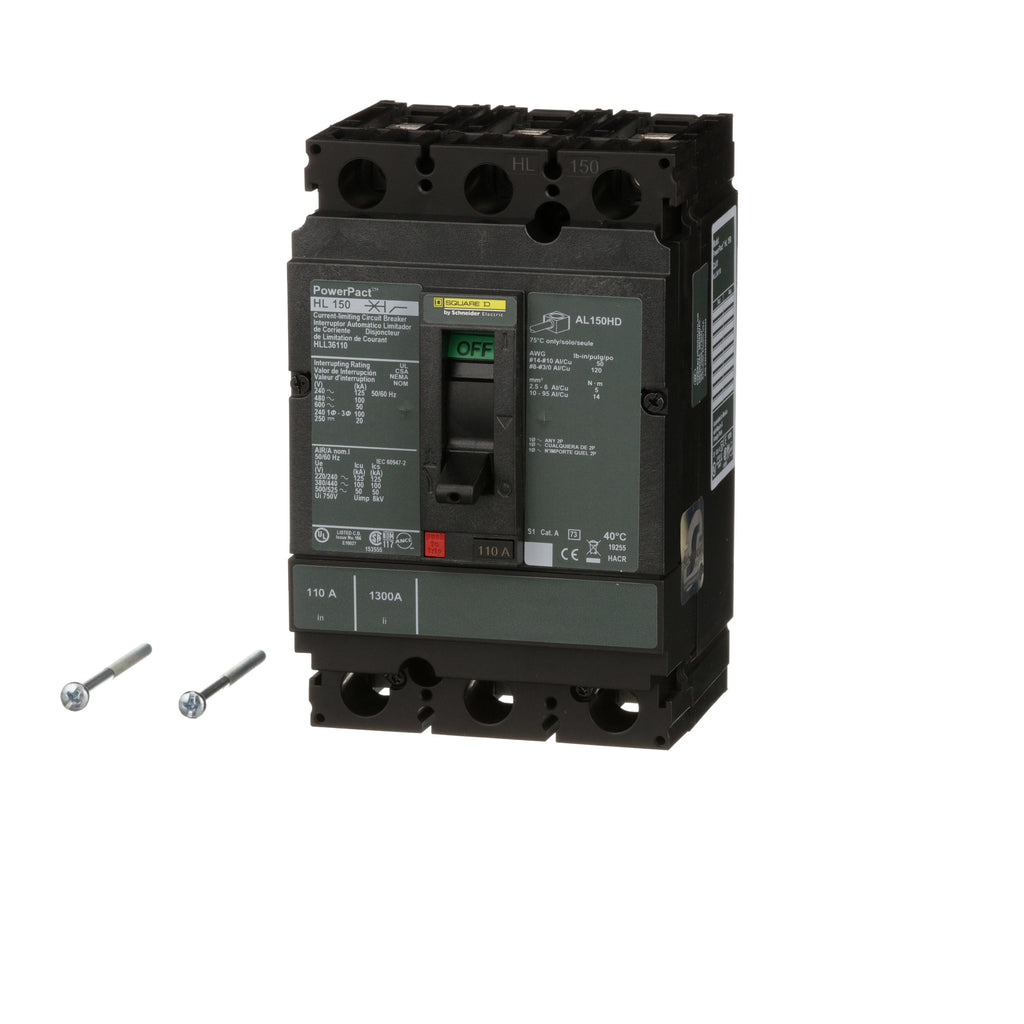

HLL36110 - Square D PowerPacT H 110A 3 Pole 600VAC Molded Case Circuit Breaker

HLL36110

HLL36110 is a Square D PowerPacT H molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3 pole breaker features a 110A current rating, 600VAC maximum voltage, and is suitable for use in a variety of power distribution systems. The breaker is equipped with thermal magnetic protection and offers long time and instantaneous trip functions for enhanced safety. It is UL 489 listed and meets multiple international standards for performance and safety. The HLL36110 is designed for unit mounting and features feed-thru connections with line and load side lugs. It supports wire gauges from AWG 14 to AWG 3/0 aluminum or copper. The breaker is rated for interrupting capacities up to 125kA at 240VAC, 100kA at 480VAC, and 50kA at 600VAC, making it suitable for demanding environments. The actuator is a toggle type, and the unit is black in color.

• Part Number: HLL36110
• Manufacturer: Square D
• Series/Frame: PowerPacT H
• Amperage: 110A
• Voltage: 600VAC, 250/500VDC
• Poles: 3
• Mounting Type: Unit
• Interrupt Rating: 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC
• Protection: Thermal Magnetic
• Functions: Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Side Lug
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Standards: UL 489, CE, CSA, NEMA, NOM, IEC, RoHS
• Actuator Type: Toggle
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901433781
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.1
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
