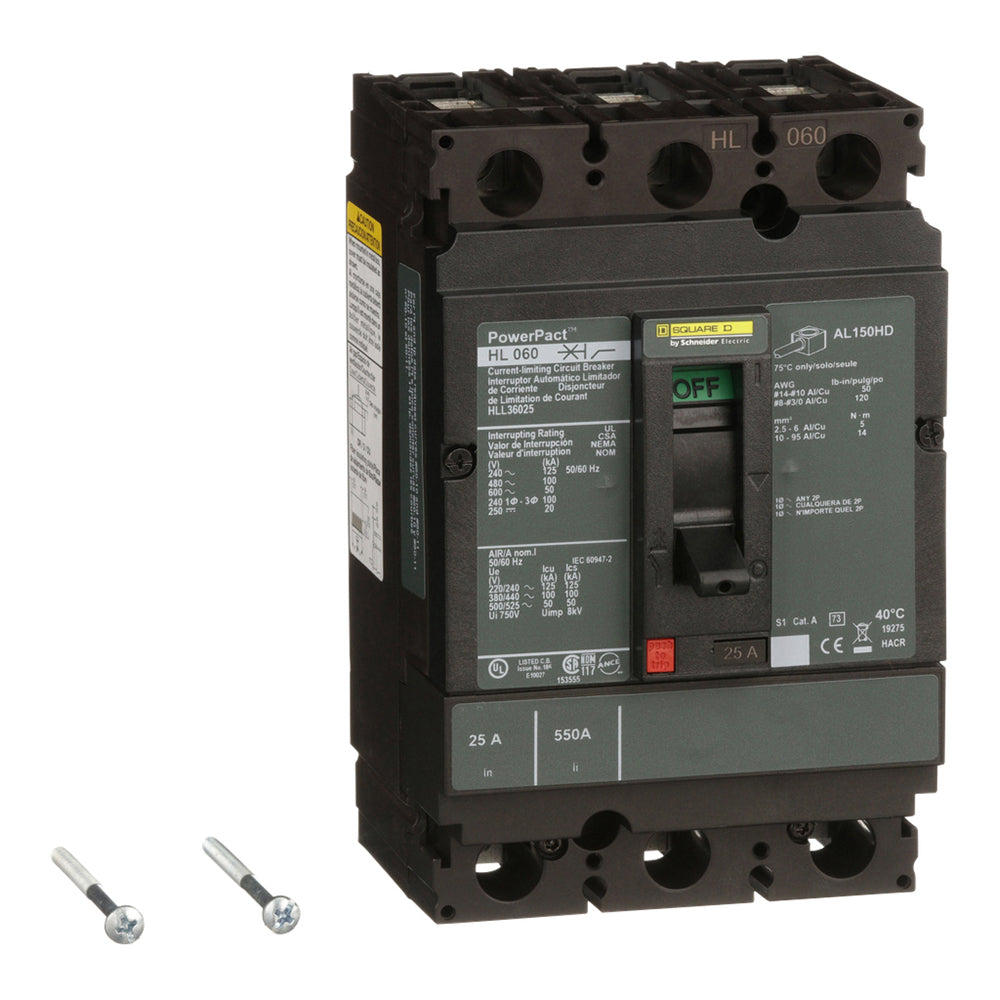

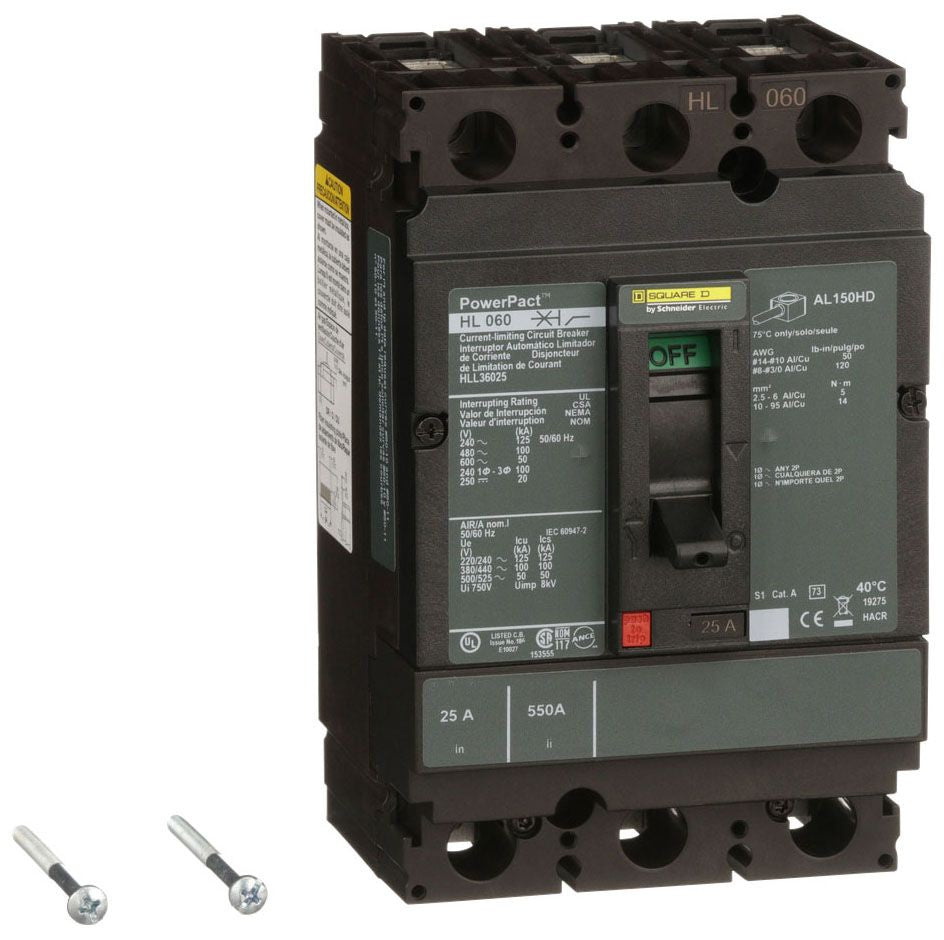

HLL36025 - Square D 25 Amp 600 Volt 3 Pole Thermal Magnetic Molded Case Circuit Breaker

HLL36025

HLL36025 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 25 amps and 600 volts.This Square D HLL36025 breaker features a thermal magnetic trip unit, current limiting design, and is suitable for unit mounting applications. It offers reliable protection for electrical circuits with a 3-pole configuration and a high interrupt rating, compliant with UL 489 and CSA standards.

Key Specifications
• Amperage: 25 Amps
• Voltage Rating: 600 VAC / 250-500 VDC
• Poles: 3
• Trip Unit: Thermal Magnetic
• Interrupt Rating: Up to 100 kA at 480 VAC
• Mounting Type: Unit Mount
• Frame/Series: H Frame (PowerPact HLL)
• Certifications: UL 489, CSA, CE
• Current Limiting Type
• Dimensions: Approx. 4.09" W x 3.39" D x 6.42" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901683100
• GTIN : 00785901683100
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.034
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
