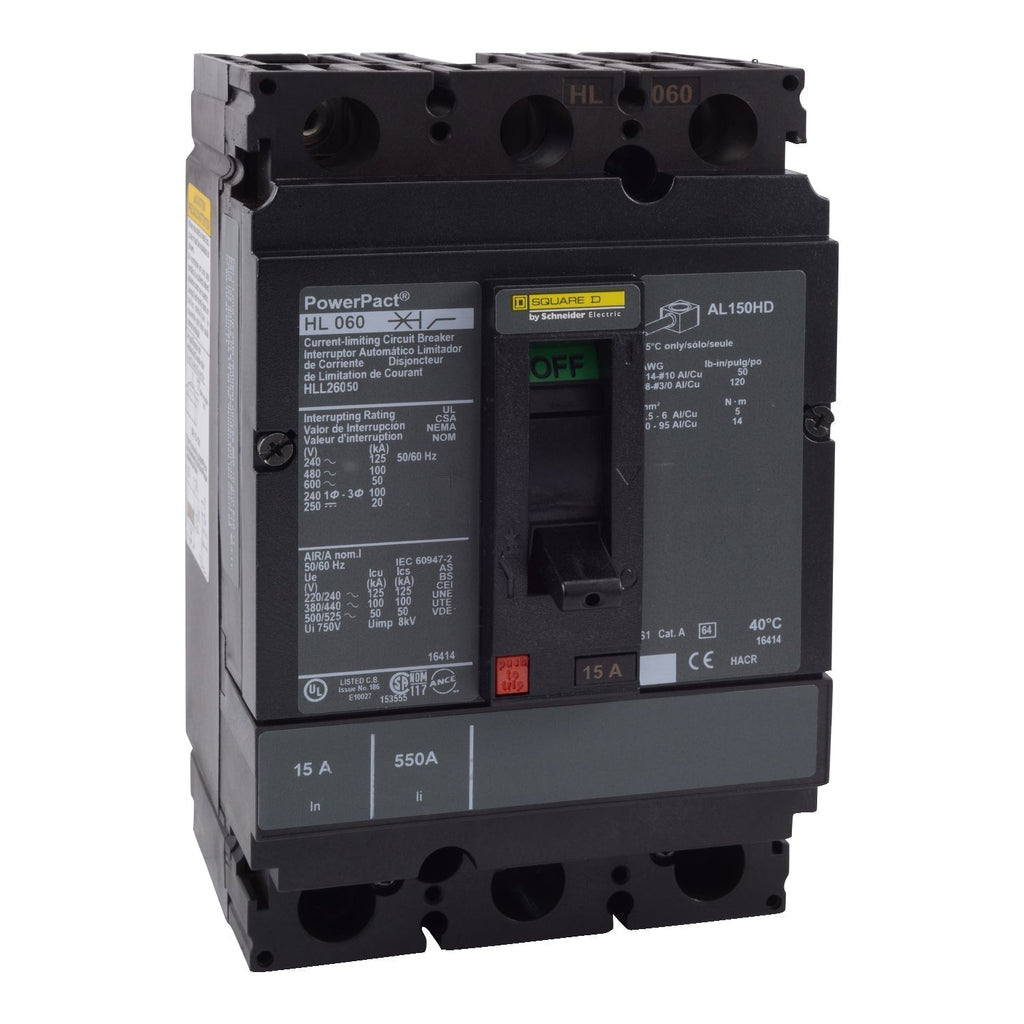

HLL26050 - Square D H-Frame 50A 2 Pole 600V Feed-Thru Molded Case Circuit Breaker

HLL26050

HLL26050 is a Square D H-Frame 2 pole, 50 amp, 600 volt molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications. This Square D HLL26050 features feed-thru terminals, a thermal-magnetic trip unit, and is suitable for reverse fed applications. It is UL listed, current limiting, and offers a high interrupt rating for robust protection.

• Part Number: HLL26050
• Manufacturer: Square D
• Series/Frame: H-Frame
• Poles: 2
• Amperage: 50A
• Voltage: 600V AC
• Interrupt Rating: 100kA @ 480V
• Mounting Type: Unit Mount Lug
• Terminal Type: Feed-Thru
• Reverse Fed: Suitable
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL26050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901934769
• GTIN : 00785901934769
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
