HLD3500Y - Eaton Series C L-Frame 500A 3-Pole Molded Case Circuit Breaker, 600V, Bolt-On, 65kAIC @ 480V

HLD3500Y

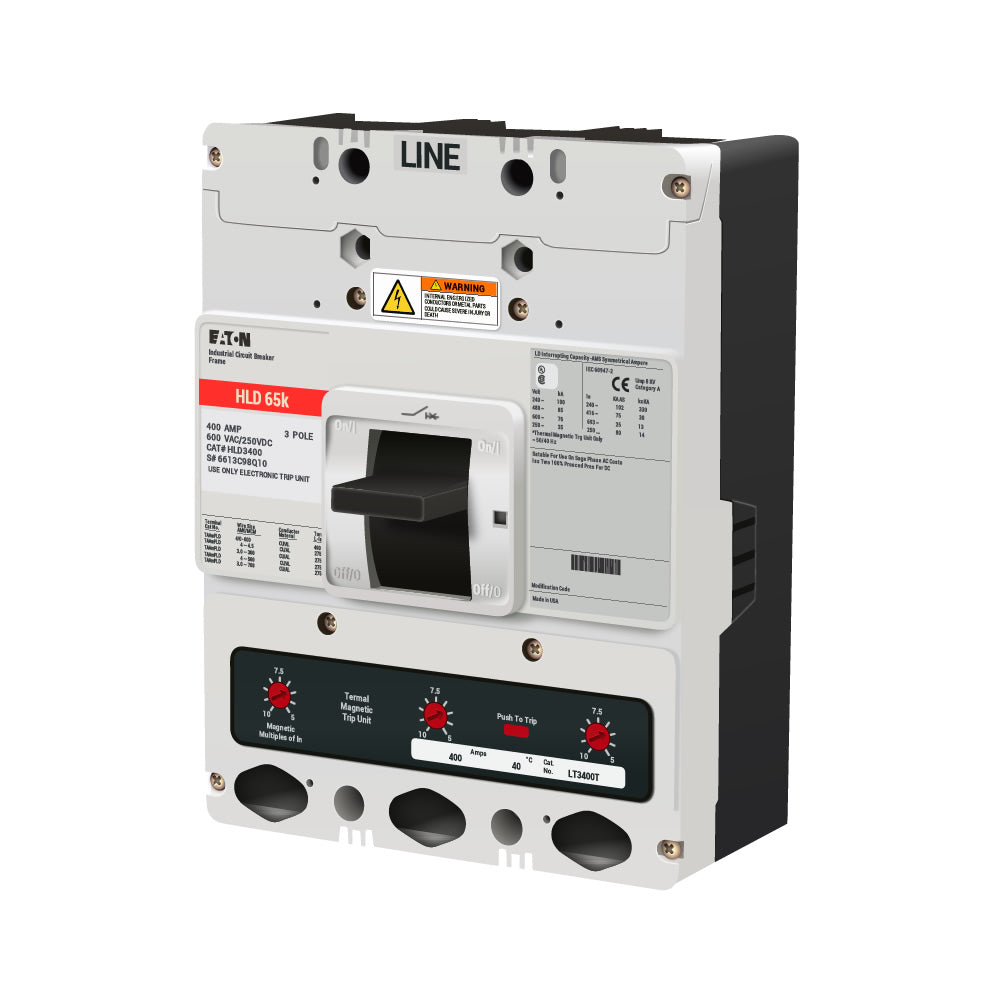

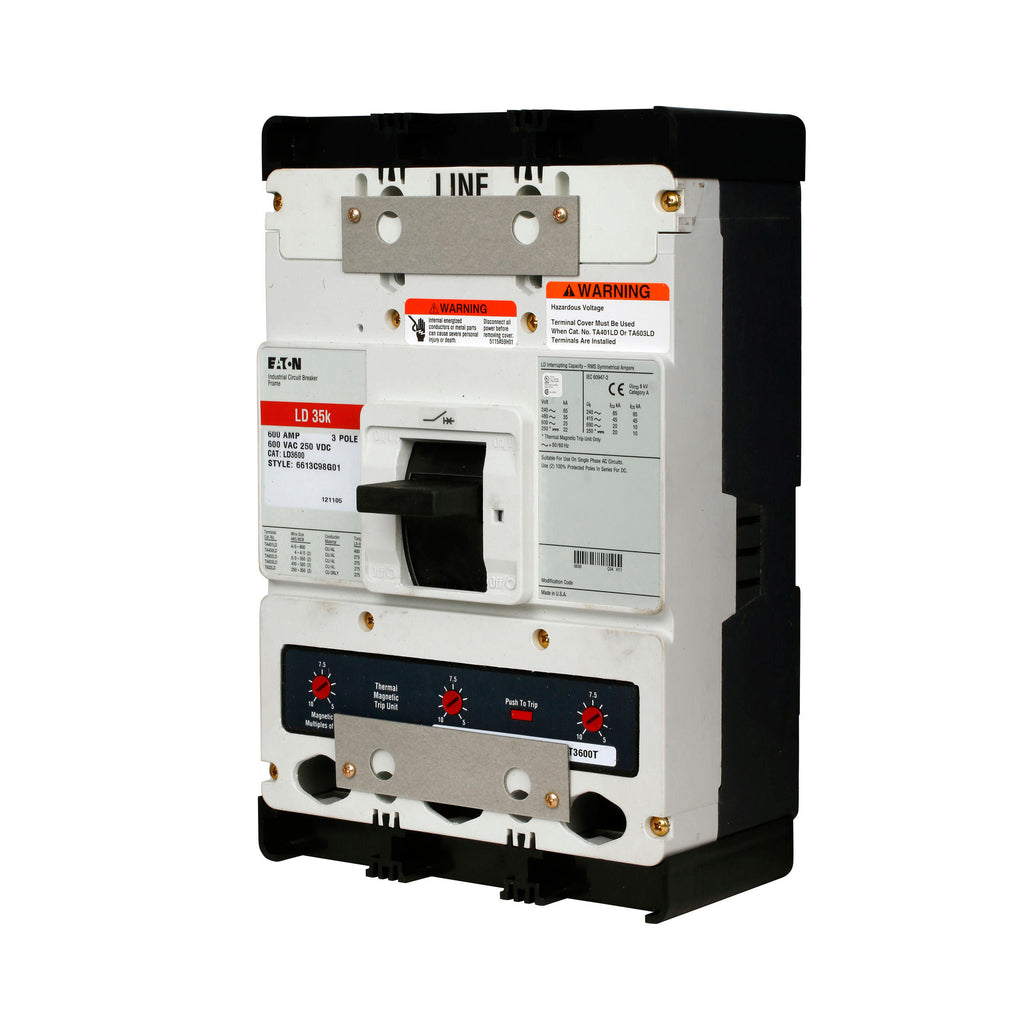

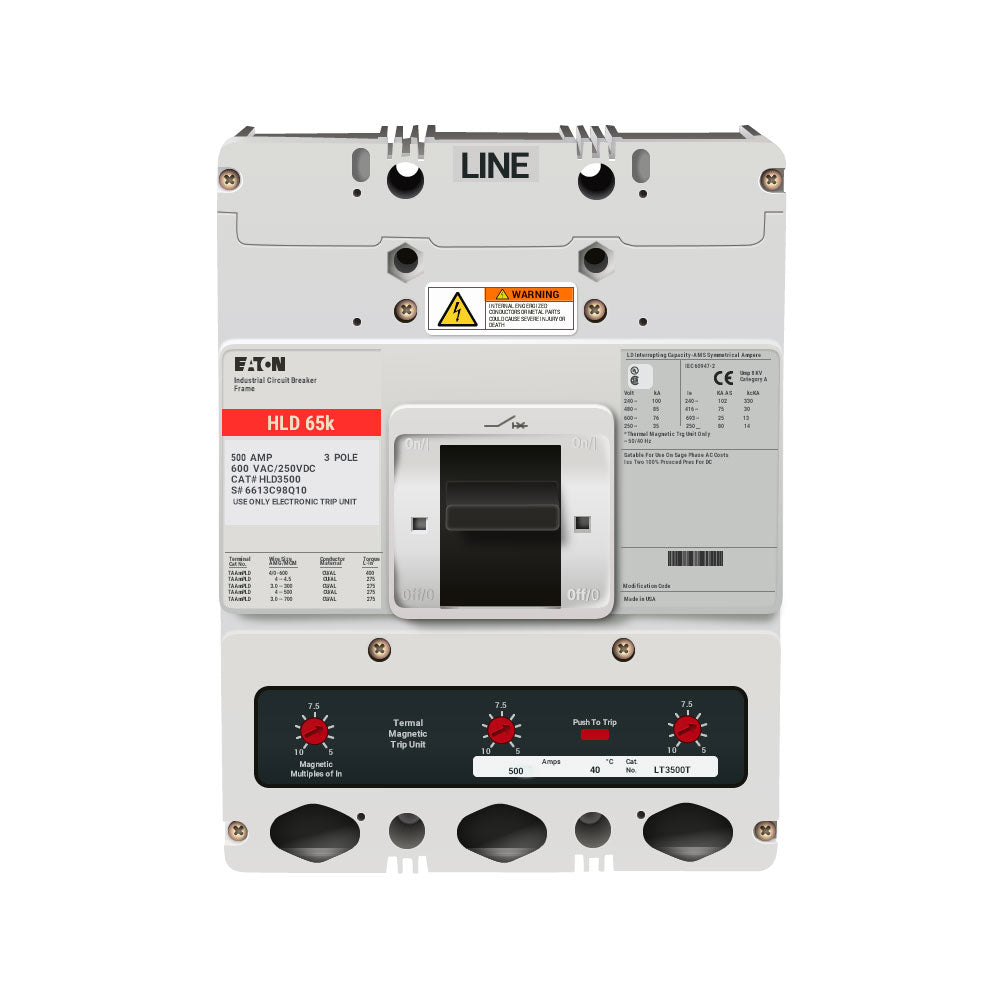

HLD3500Y is a three-pole molded case circuit breaker from Eaton's Series C line, designed for reliable protection in commercial and industrial power distribution systems. This L-frame breaker features a fixed thermal and fixed magnetic trip unit, rated for 500A continuous current and 600 Vac, 250 Vdc. The HLD3500Y is built for bolt-on mounting and provides robust short-circuit protection with an interrupt rating of 65 kAIC at 480 Vac and 100 kAIC at 240 Vac. It is UL Listed and suitable for use in a wide range of applications requiring dependable circuit protection. The Eaton Series C L-frame breaker is engineered for durability and ease of installation, with aluminum terminals for line and load connections. Its compact design and high interrupt capacity make it ideal for demanding environments. The breaker operates at 50/60 Hz and is compatible with standard power distribution panels.

• Part Number: HLD3500Y
• Manufacturer: Eaton
• Series: Series C
• Frame: L-Frame
• Amperage Rating: 500A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: Three-pole
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kAIC at 480 Vac, 100 kAIC at 240 Vac

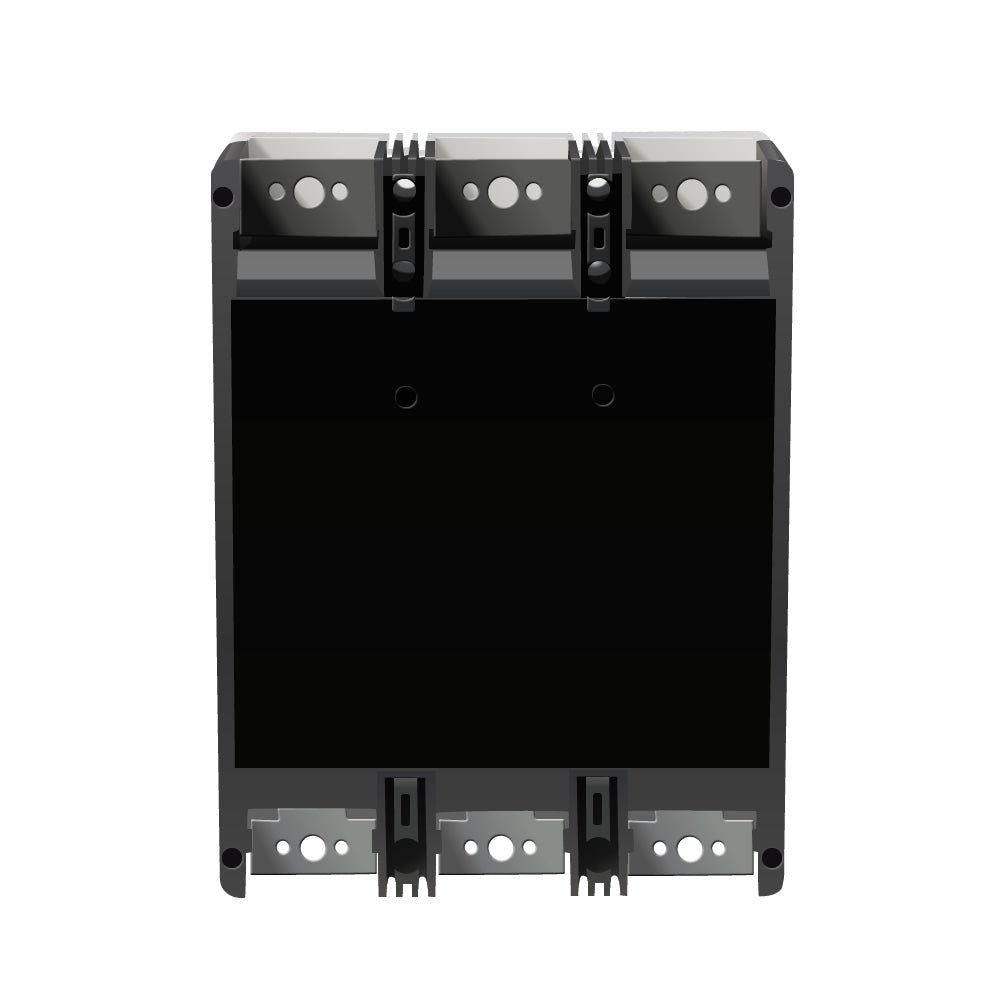

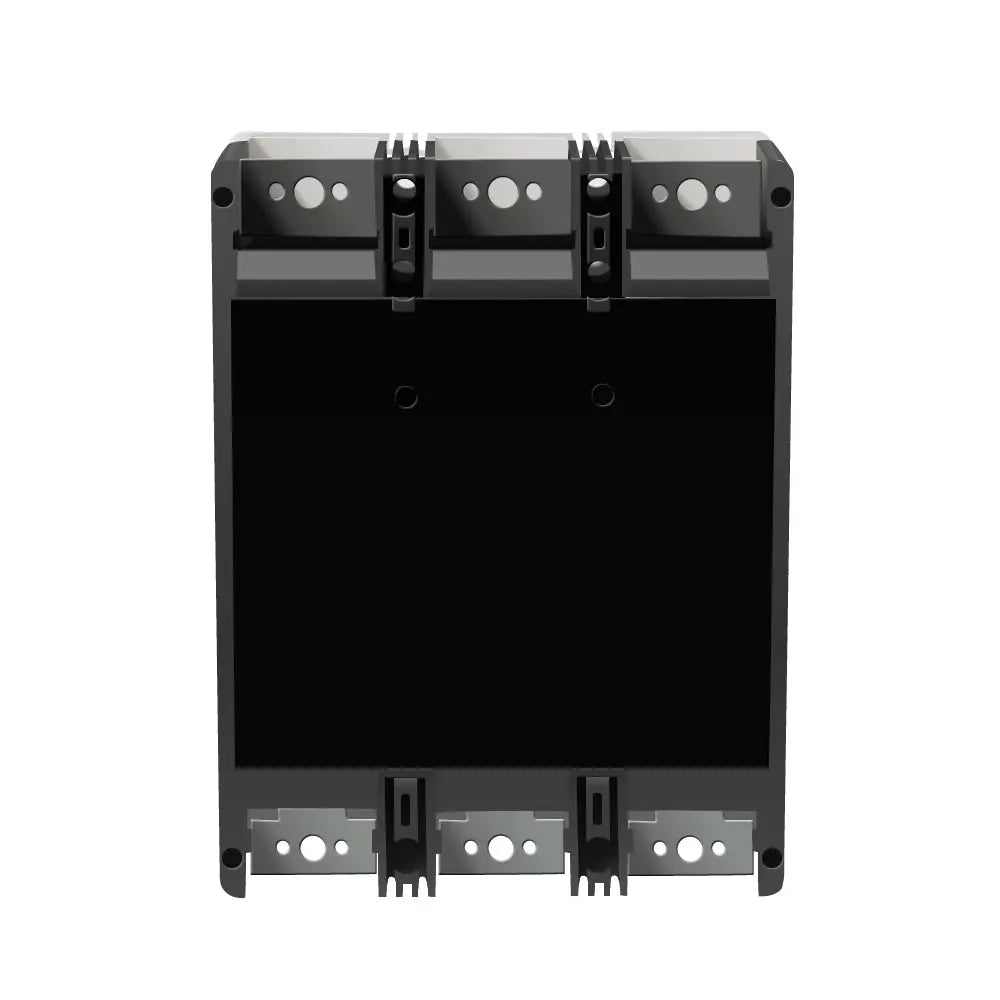

• Terminal Material: Aluminum
• Frequency Rating: 50 to 60 Hz
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLD3500Y
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLD
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 22
