Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HLD3500X

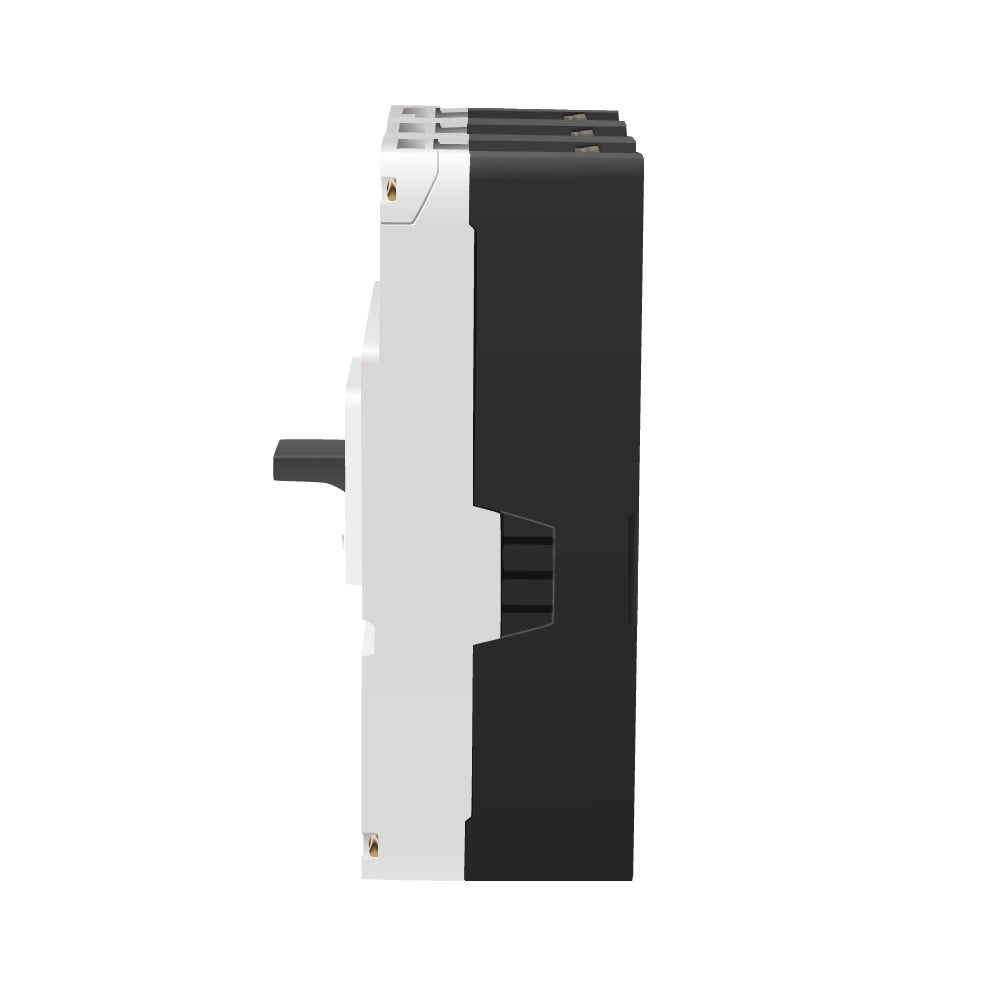

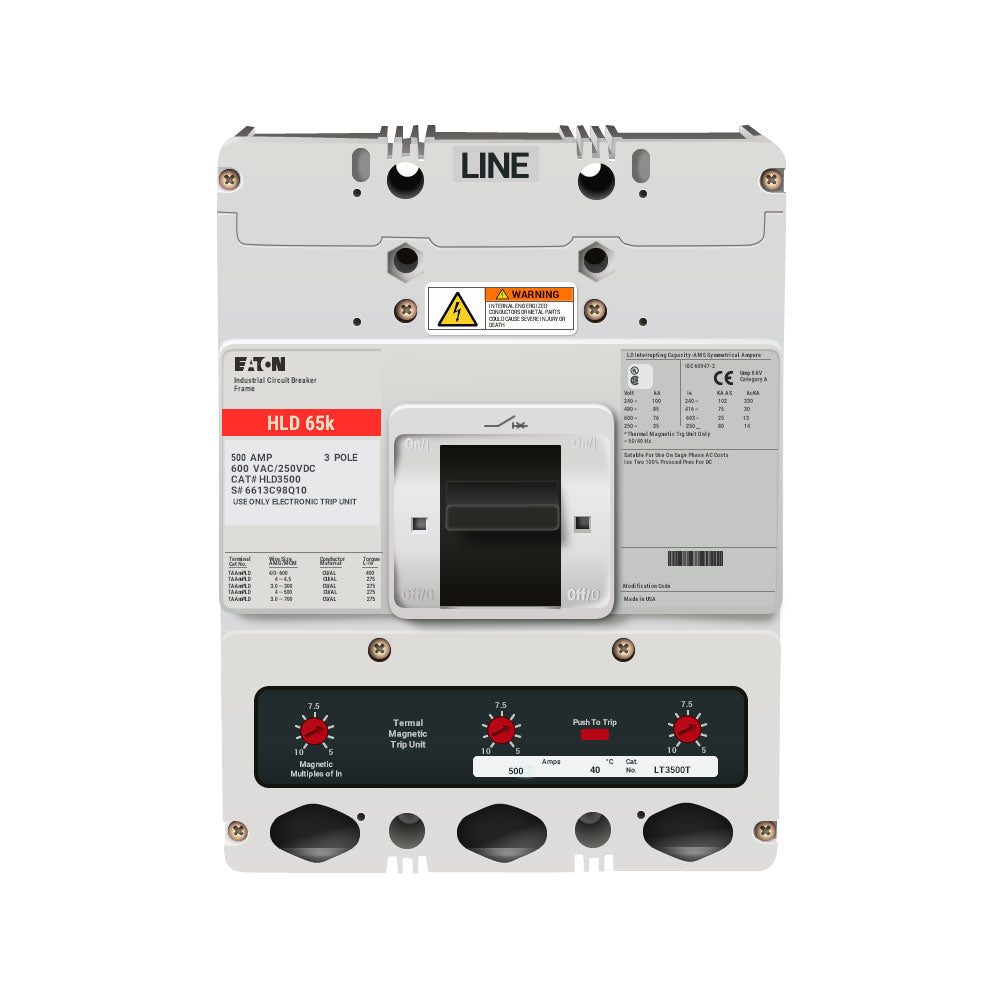

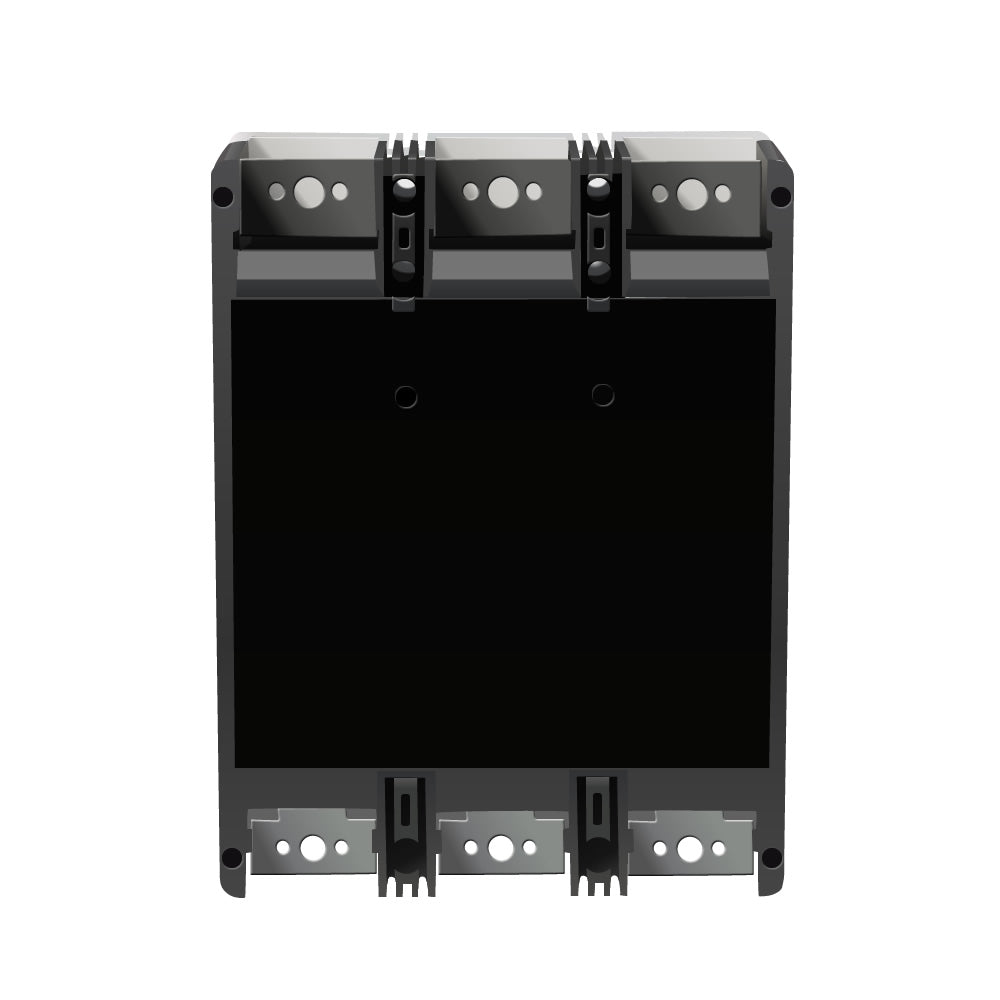

HLD3500X is an Eaton Series C molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.HLD3500X features a 500 ampere rating with a 600 Vac and 250 Vdc voltage rating. It is a three-pole breaker with a fixed thermal and fixed magnetic trip type T186. The breaker is part of Eaton's L-frame Series C line and offers high interrupting capacity of 65 kAIC at 480 Vac and 100 kAIC at 240 Vac. It includes aluminum line and load terminals and is UL Listed for safety and performance.
- Amperage: 500 A
- Voltage Rating: 600 Vac, 250 Vdc
- Poles: 3
- Frame: L-Frame
- Series: Series C
- Trip Type: Fixed thermal and magnetic, T186
- Interrupt Rating: 65 kAIC at 480 Vac, 100 kAIC at 240 Vac
- Terminal Material: Aluminum
- Terminals: Line and load
- Frequency: 50/60 Hz
- Certifications: UL Listed
Specifications
- Part Number: HLD3500X
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HLD
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 22
