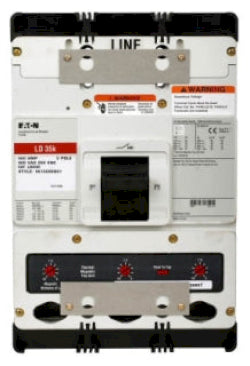

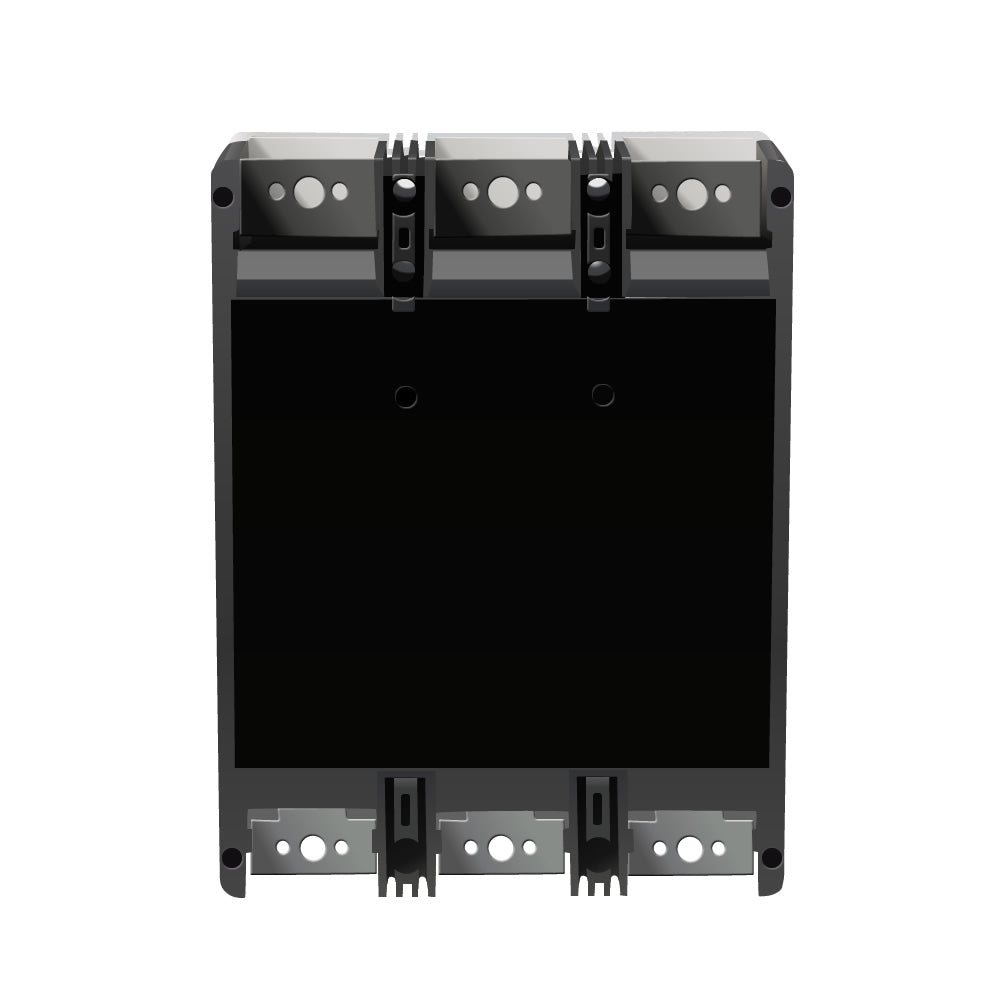

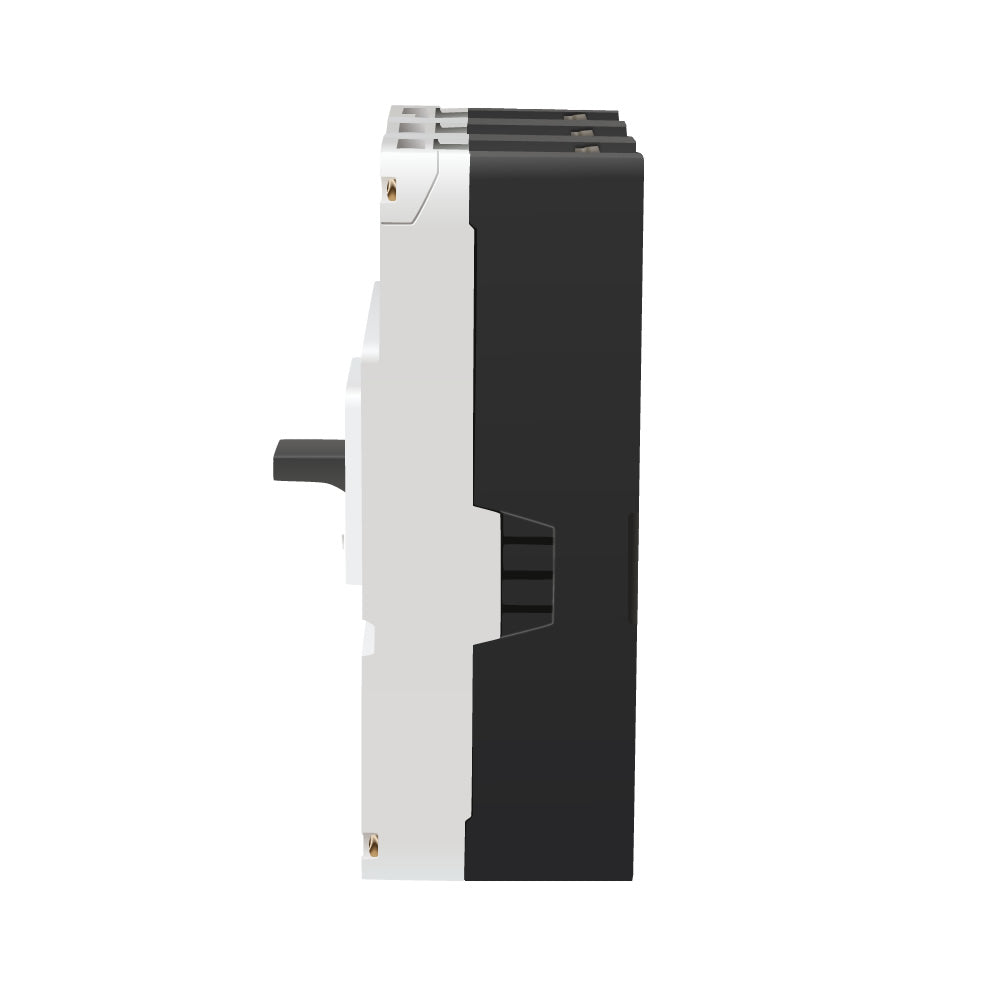

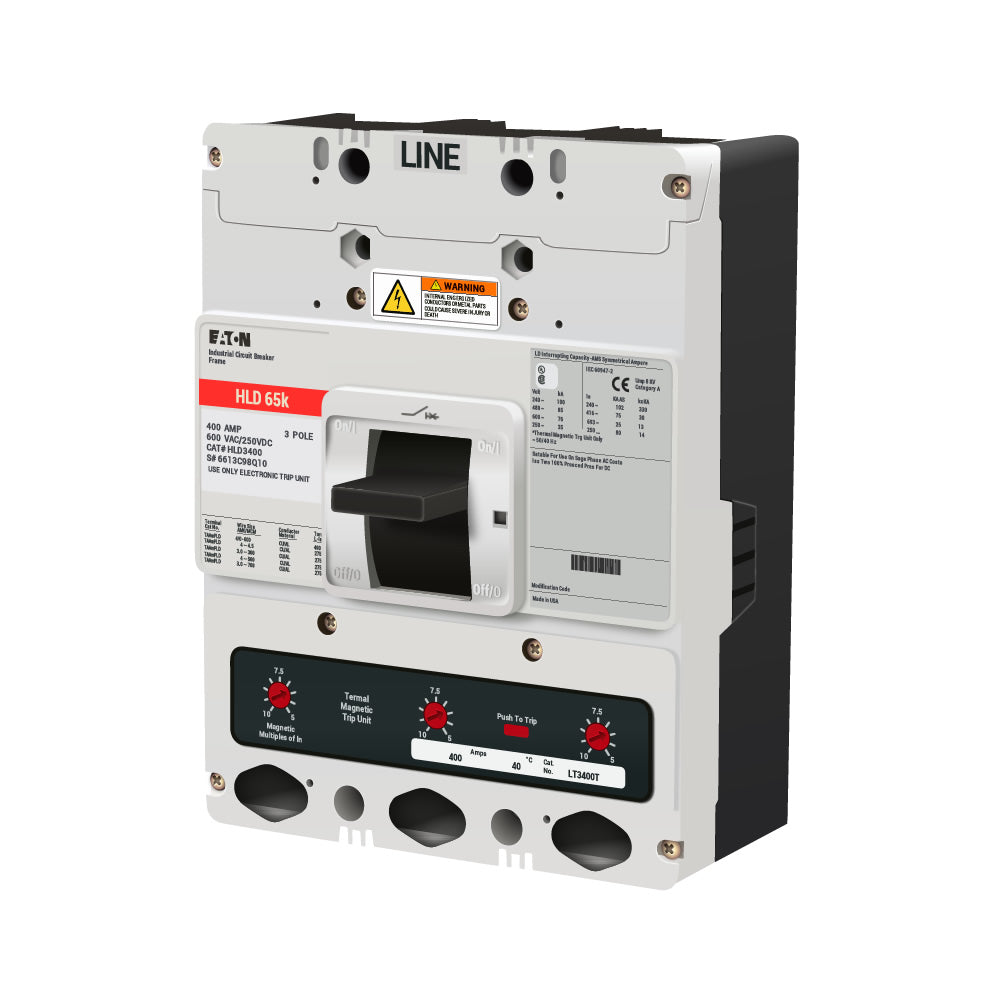

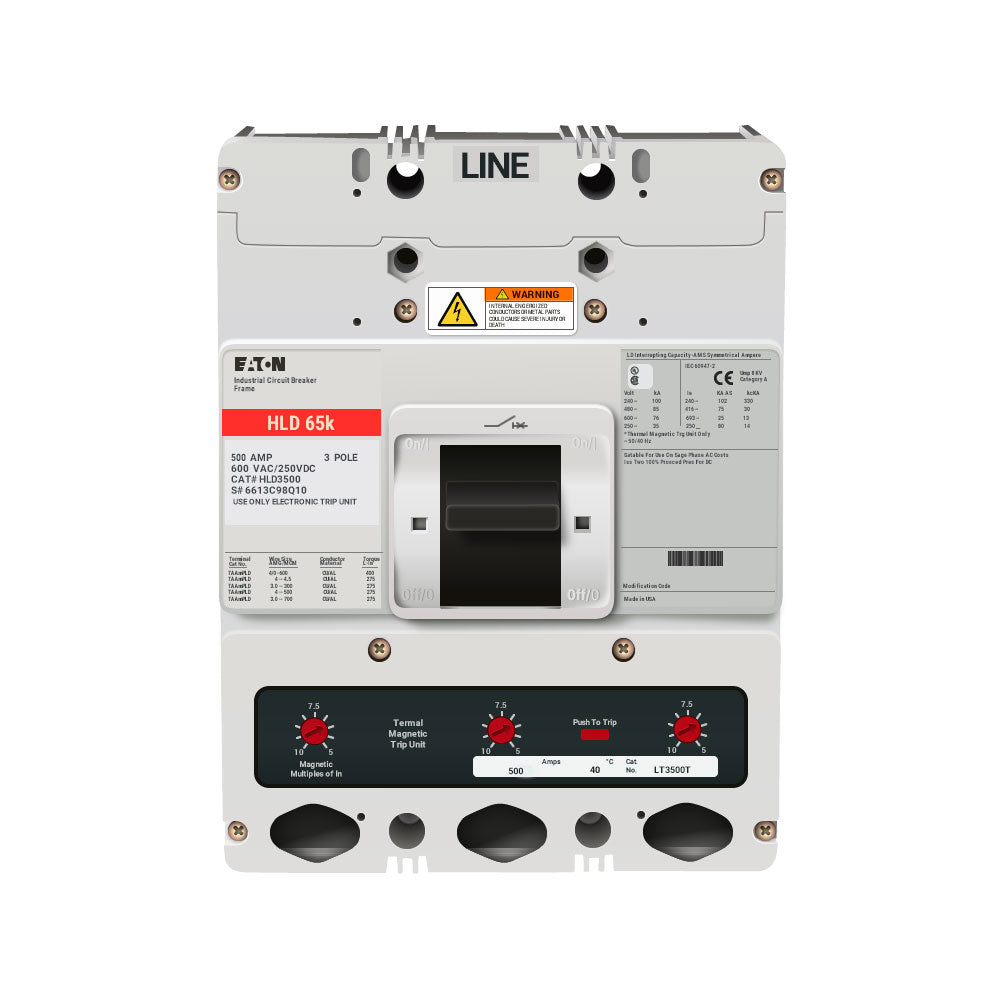

HLD3500W - Eaton Series C Complete Molded Case Circuit Breaker 500A 600V 3P L-Frame Fixed Thermal Magnetic Trip

HLD3500W

HLD3500W is a Series C complete molded case circuit breaker from Eaton, designed for reliable protection in industrial and commercial power distribution systems.This three-pole, 500A circuit breaker features an L-frame construction with fixed thermal and fixed magnetic trip technology. Rated for 600 Vac and 250 Vdc, it provides robust protection with an interrupt rating of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac. The breaker is suitable for line and load connections and operates at 50/60 Hz.

• Series: Series C
• Frame: L
• Number of Poles: Three-pole
• Amperage Rating: 500 A
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Mounting Type: Line and load
• Frequency Rating: 50 to 60 Hz
• Terminal Material: Aluminum
• Trip Type: Fixed thermal, fixed magnetic
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HLD3500W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLD
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679071984
• GTIN : 00786679071984
• Country of Origin : United States
• Dimensions : 7.5 in x 7.5 in x 7.5 in (Length/Depth x Height x Width)
• Weight : 20
• Certification : UL Listed
