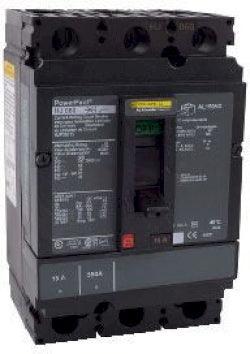

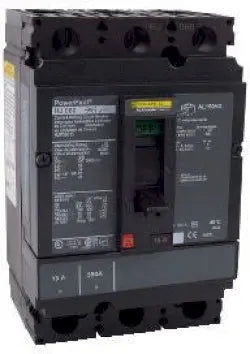

HJP36150 - Square D PowerPact H-Frame 150A 3-Pole Molded Case Circuit Breaker 600VAC Unit Mount

HJP36150

HJP36150 is a Square D PowerPact H-Frame molded case circuit breaker designed for reliable thermal magnetic circuit protection in industrial and commercial applications. This unit mount breaker features a robust 150A rating, 3-pole configuration, and is suitable for systems up to 600VAC or 250VDC. The HJP36150 is engineered for easy installation and versatile terminal options, making it a preferred choice for demanding electrical environments.Engineered for durability and safety, the HJP36150 breaker offers a J interrupt rating with a breaking capacity of 65kA at 480VAC and 25kA at 600VAC. It is UL 489 listed and certified to multiple international standards, ensuring global acceptance and compliance. The breaker's snap-in terminal design allows for simple conversion between busbar and lug connections, supporting a wide range of installation requirements.

• Part Number: HJP36150
• Manufacturer: Square D
• Series/Frame: PowerPact H-Frame
• Amperage: 150A
• Number of Poles: 3
• Maximum Voltage: 600VAC / 250VDC
• Interrupt Rating: J (65kA @ 480VAC, 25kA @ 600VAC)
• Mounting Type: Unit Mount
• Tripping Mechanism: Thermal Magnetic
• Terminal Connection: Lug
• Certifications: UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJP36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJP
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901677031
• GTIN : 00785901677031
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
