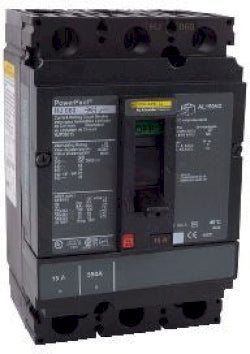

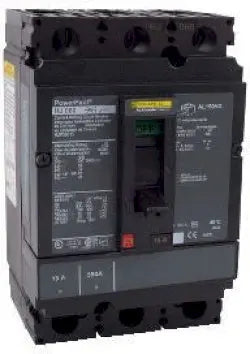

HJP36125 - Square D 125A 600V 3 Pole Molded Case Circuit Breaker H Frame

HJP36125

HJP36125 is a Square D 125 amp, 600 volt, 3 pole molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a thermal-magnetic trip unit, unit mount design, and is part of the Powerpact family with an H frame. It has an interrupt rating of 65kA at 480V AC and 100kA at 240V AC, suitable for industrial and commercial applications. The breaker is UL and CSA listed, supporting up to 250 VDC and 600 VAC maximum voltage ratings.

Key Specifications
• Amperage: 125A
• Voltage Rating: 600 VAC / 250 VDC max
• Number of Poles: 3
• Interrupt Rating: 65kA @ 480V AC, 100kA @ 240V AC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount (Bolt-On)
• Series/Frame: Powerpact H Frame
• Certifications: UL 489, CSA
• Terminal Connection: Lug
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJP36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJP
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901677017
• GTIN : 00785901677017
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.134
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
