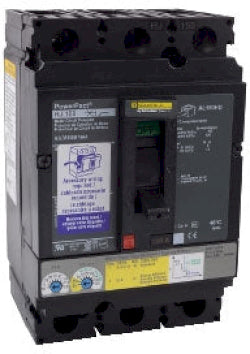

HJM36150 - Square D PowerPact H Frame 150A 3 Pole 600V Bolt-On Circuit Breaker 65kA@480V

HJM36150

HJM36150 is a 3 pole, 150 amp, 600 volt bolt-on circuit breaker from Square D's PowerPact H Frame series, designed for reliable main and branch circuit protection in commercial and industrial applications. This breaker features a thermal magnetic trip unit and is UL 489 listed for safety and compliance. The HJM36150 is engineered for high interrupting capacity and dependable performance in demanding environments. Its bolt-on mounting provides secure installation, while the H frame design ensures compatibility with a wide range of Square D panels. The breaker is suitable for use in systems up to 600VAC and 250VDC, with robust interrupting ratings for enhanced safety.

• Part Number: HJM36150
• Manufacturer: Square D
• Series/Frame: PowerPact H Frame
• Amperage: 150A
• Poles: 3
• Voltage: 600VAC, 250VDC
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA@480V
• Interrupt Rating: 100kA@240V
• Interrupt Rating: 25kA@600V
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJM36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJM
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901031765
• GTIN : 00785901031765
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
